Air Sentry XR-502 Desiccant Breather


SKU: 095XR502

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

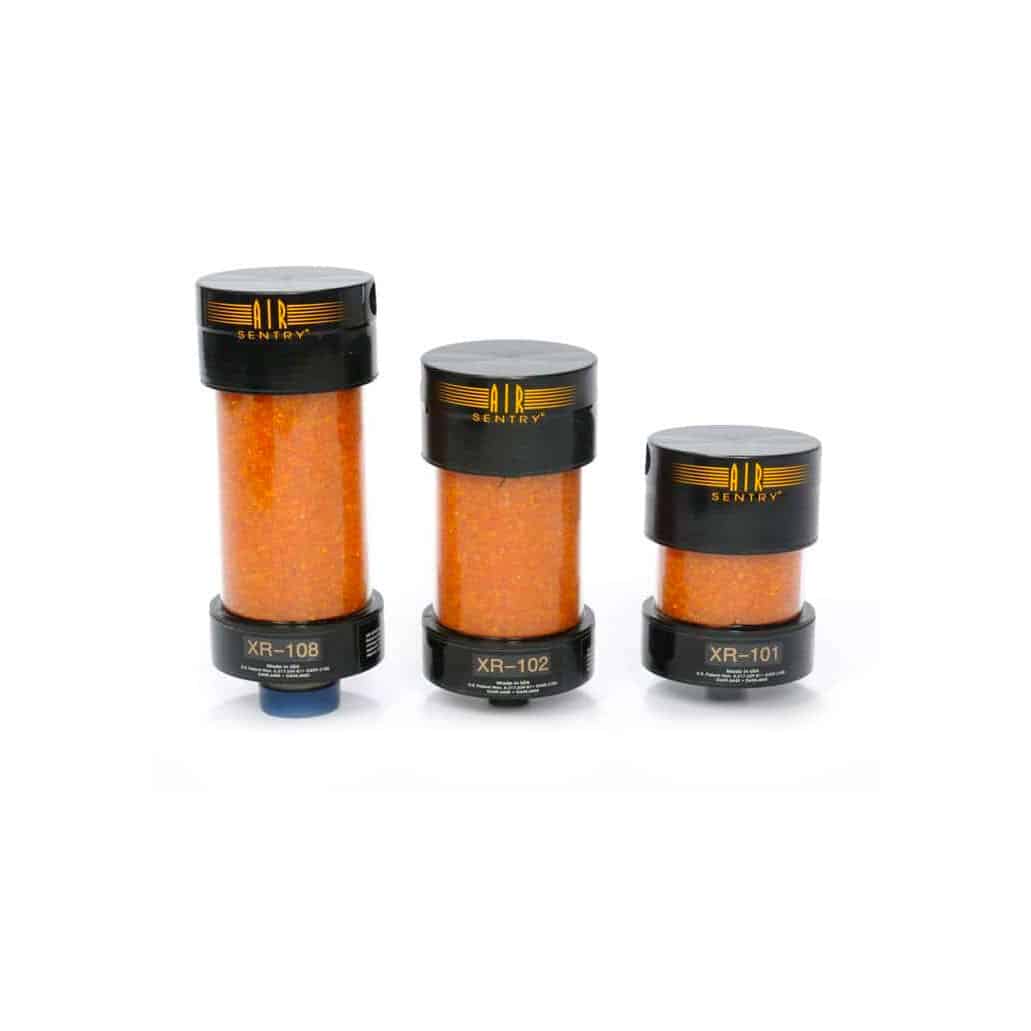

XR-Series breathers were originally engineered for the wind power industry but are designed to perform in any extreme environment where protection from dust, moisture and vibration is critical. These breathers include a metal reinforced base, available with male NPT threads to adapt to your equipment. The base is designed to handle the rigors of high-vibration applications. The top cap uses two check valves to prevent outside moisture and solid contaminants from entering the breather until there is a need for airflow. The modular design allows for economical replacement of the desiccant cartridge.

All XR-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

Operating Temperature: -20°F (-29°C) to +200F (+93°C)

Base Material: 100% Silica Gel
Check Valve PSI In/Out: 0.1 0.1
Height: 11.5 in 29.2 cm
Diameter: 5.2 in 13.2 cm
Mounting Connection: 1″ MNPT
Silica Gel: 2.7 lbs 1.2 kg
Maximum Adsorption Capacity: 16.56 fl oz 489 mL
Maximum Air Flow: 25 cfm
Maximum Reservoir Fluid Flow: 187 gpm
Type of Medium: 100% Silica Gel
Cartridge: A-352

See all Air Sentry Desiccant Breathers.

Additional information

Weight 6.9997 lbs
