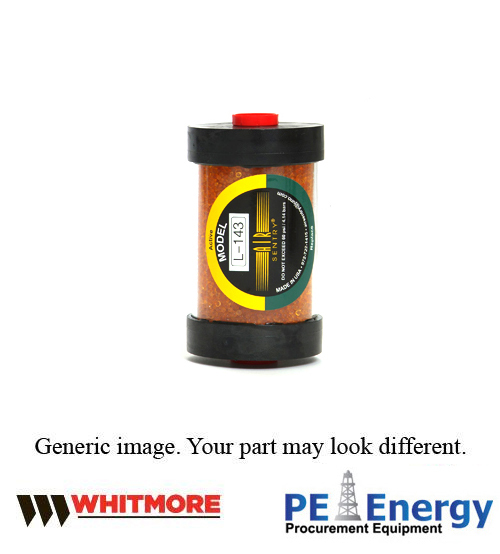

Air Sentry L-143 Desiccant Breather


SKU: 095L143

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

L-Series Breathers are available with 100% silica gel. These breathers include an in-line filter/dryers that remove water vapor and solid contaminants from air exhaust lines, low pressure compressed air lines, vacuum lines, and other in-line airflow applications where clean, dry air is required. Air enters the filter/dryer in one end and is clean and dry when leaving the other end. Water vapor and solid particles down to 2 micron are removed. L-Series is rated up to 60 psi and mounted on the regulated side of the air line.

All L-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

Operating Temperature: -20°F (-29°C) to +200F (+93°C)

Base Material: 100% Silica Gel
Height inches (cm): 5.5 (14.0)
Diameter inches (cm): 3.25 (8.3)
Both Ends Connection: 1/2″ FNPT
Silica Gel lbs (kg): 0.8 (0.4)
Carbon Weight lbs (kg): N/A
Maximum Adsorptions Capacity fl. ounces (mL): 4.91 (145)
Maximum Air Flow cfm: 10
Maximum Reservoir Fluid Flow gpm: 75
Type of Medium: 100% Silica Gel

See all Air Sentry Desiccant Breathers.

Additional information

Weight 6.001 lbs

Pack of 1, Pack of 4
