Air Sentry D-154 Desiccant Breather

$97.24$451.00

SKU: 095D154
Manufacturer:
Whitmore

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

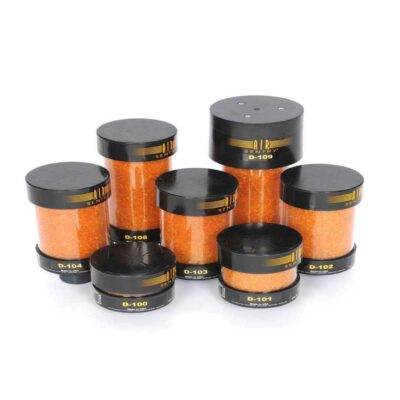

D-Series Breathers feature numerous models in a variety of sizes, all designed to satisfy the requirements of most stationary fluid management applications. The breathers provide application flexibility by using 100% silica gel for moisture adsorption, 100% activated carbon for fume and odor control or both, when necessary.

The D-Series is constructed of industrial grade raw materials, tested to ensure a wide range of chemical compatibilities, and features high impact resistant ABS top and bottom caps. The clear acrylic tube makes it easy to inspect the condition of the color-changing silica gel from a distance. The silica gel turns from gold to dark green to visually indicate the adsorption of moisture and confirm the breather is getting the job done!

All D-Series models feature 2-micron solid particle filtration (one on the inlet and a second on the outlet) and are available with airflow ratings of 20 cfm.

Operating Temperature: -20°F (-29°C) to +200F (+93°C)

Specifications
Base Material: 100% Silica Gel
Height: 5 in 12.7 cm
Diameter: 5 in 12.7 cm
Mounting Connection: 1″ MNPT
Silica Gel: 1.4 lbs 0.6 kg
Maximum Adsorption Capacity: 8.6 fl oz 254 mL
Maximum Air Flow: 20 cfm
Maximum Reservoir Fluid Flow: 150 gpm
Type of Medium: 100% Silica Gel

See all Air Sentry Desiccant Breathers.

Additional information

Weight 15.9989 lbs
Multi-Pack

Pack of 1, Pack of 6
