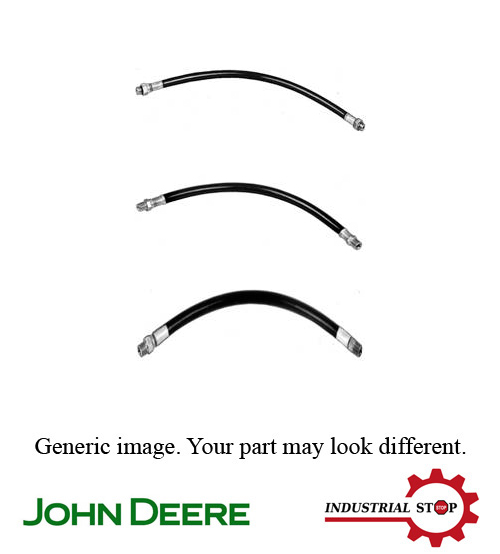

TY26900 – Hydraulic hose, 3/8×36-in.

SKU: TY26900
Manufacturer:
John Deere

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

3/8-inch I.D. 1-Wire Braid, 3/4-16 O.R.B. Ends with O-Rings

Specification

  • Hose I.D.: 3/8 in. (10 mm) – 1/2 in. (12.7 mm)
  • Hose O.D.: 0.62 in. (16 mm) – 0.75 in. (19 mm)
  • Rated working pressure: 3,000 psi – 2,500 psi
  • Min. burst pressure: 9,000 psi – 8,000 psi
  • Min. bend radius: 2-1/2 in. (65 mm) – 3.50 in. (89 mm)
  • Weight per foot: 19 lb. (0.28 kg/m) – 0.24 lb. (0.36 kg/m)
  • Tube: Synthetic rubber, black, oil-resistant
  • Reinforcement: One braid of high tensile steel wire
  • Cover: Thin, synthetic rubber, black, oil – and abrasion-resistant
  • Temperature range: -40o to +212o F (-40o C to +100o C)

Pre-Cut Hydraulic Hoses

  • Hoses come complete with fittings – one rigid coupling and one non-leak, swivel coupling (O-rings are included where required)
  • Each hose is individually packaged with part number and size identification on carton
  • Choose braided single- or double-wire hoses, 3/8-inch or 1/2-inch inside diameters
  • All hoses meet or exceed SAE specifications
