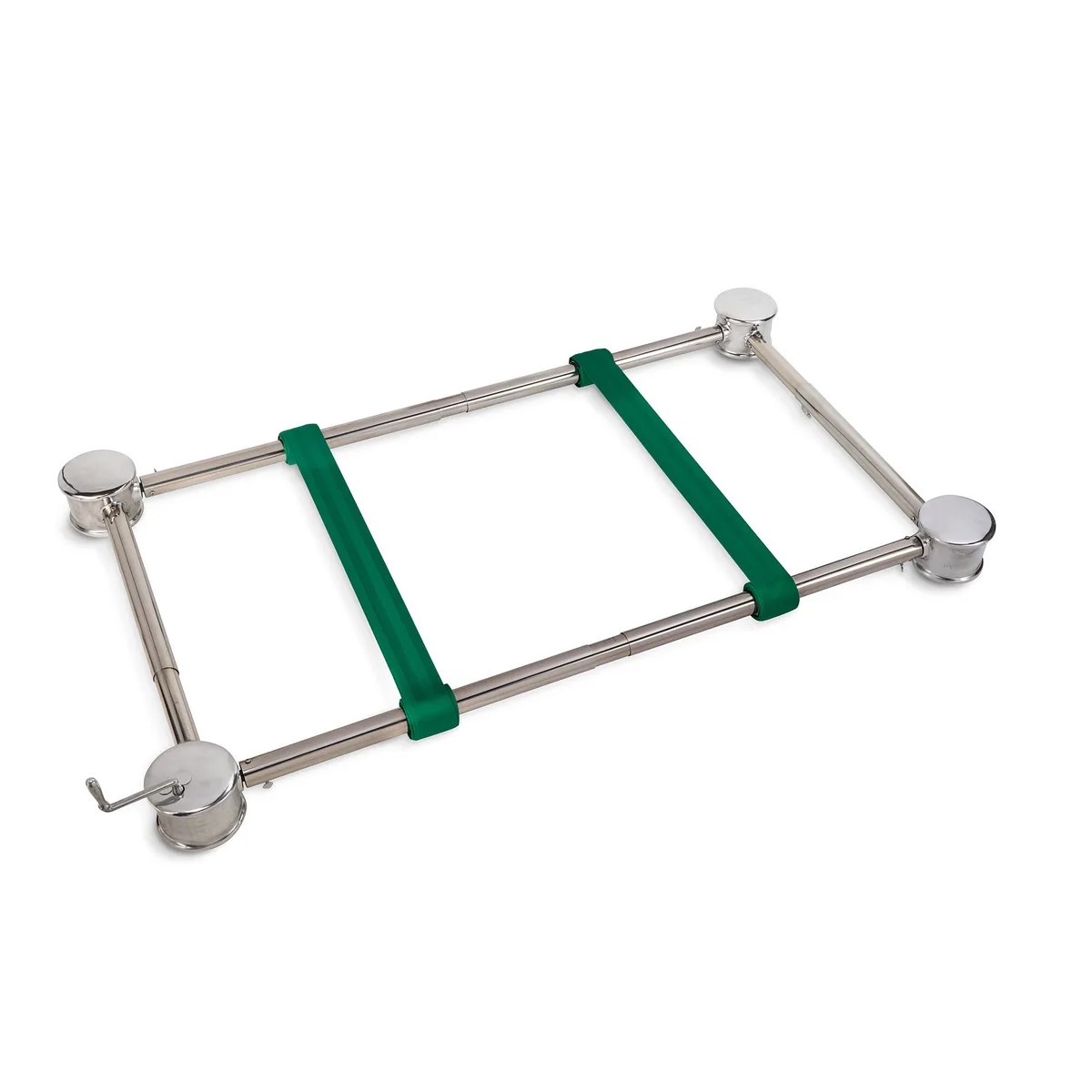

Junkin Safety LD-3287-C Superior Casket Lowering Device, Chrome

What is the Junkin LD-3287-C Superior Casket Lowering Device, Chrome?

The Junkin LD-3287-C is the Superior Lowering Device in chrome: graveside equipment that lowers a casket under speed control. It is finished in heavy duty chrome plate with polished aluminum and has a load capacity of 800 lb.

Junkin builds it with a positive lock braking system, brass gearing and lifetime lubrication. The frame adjusts from 26 in to 40 in wide to fit the grave.

• Positive lock braking system
• Lifetime lubrication
• Speed control on all models
• 21 ft straps, each individually tested to 400 lb
• Adjusts from 26 in to 40 in wide

Which Junkin lowering device is which?

LD-3287-C is the chrome device and LD-3287-SS the stainless steel device. LD-3287-CR and LD-3287-SSR are the same devices with placer arms.

What are the specifications of the Junkin LD-3287-C?

Figures published by Junkin for the LD-3287-C:

Closed: 67-1/2 in long x 26 in wide
Open: Adjusts to 95-1/2 in long x 40 in wide
Load capacity: 800 lb
Straps: 21 ft, each tested to 400 lb
Finish: Chrome plate with polished aluminum

How do I order the Junkin LD-3287-C?

Order or request a quote by the part number LD-3287-C.
