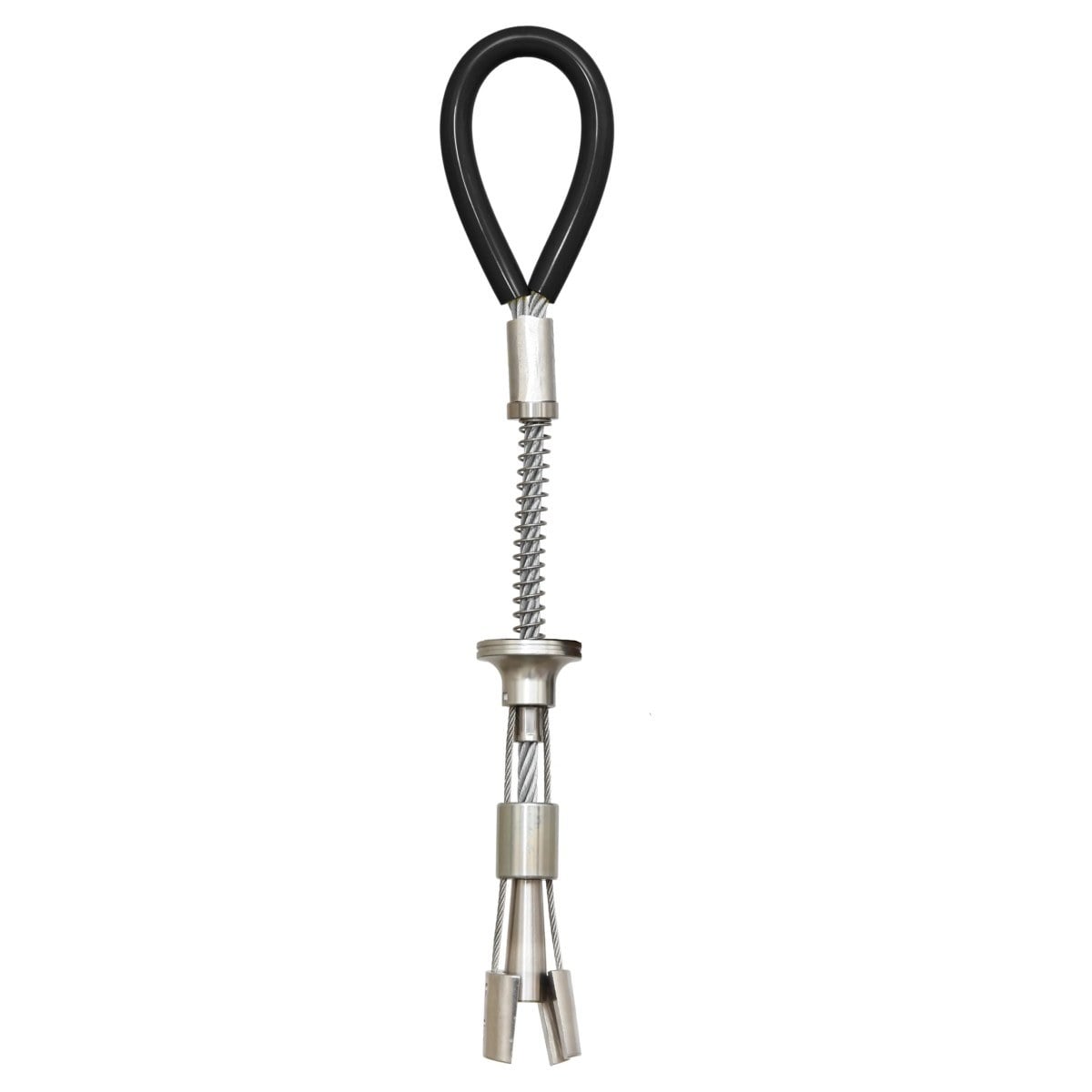

DEWALT DXFP845101 Single Point Anchor for Concrete Applications

What is the DEWALT DXFP845101?

The DEWALT Reusable Concrete Anchor is designed for horizontal, vertical, or overhead concrete applications. The anchor’s end expands to secure the anchor in a 3/4 in. (19.05 mm) mounting hole. A spring-tensioned trigger and retractor cables release the anchor with one hand to allow immediate removal and relocation to another hole.

Galvanized steel and aluminum constructions provides exceptional corrosion and rust resistance.

What are the key features of the DEWALT DXFP845101?

• Durability: Galvanized steel and aluminum constructions provides exceptional corrosion and rust resistance
• Versatility: Can be used on horizontal, vertical, or overhead concrete applications.
• Strength: Exceeds OSHA and ANSI standards. 5,000 lbs. (22kN) anchor point.

What are the specifications of the DEWALT DXFP845101?

Length: 10.9 in. (27.8 cm)
Weight: .372 lbs. ( 168.7 gr)
Capacity: 310 lbs. (130 kg)
Min. Breaking Strength: 5,000 lbs. (22kN)
Material: Galvanized Steel and Aluminum
UPC: 00810091652343

Which standards does the DEWALT DXFP845101 meet?

ANSI Z359.18-2017 Type A; OSHA 1926.502 and 1910.140 CAN/CSA Z259.15.22

How do I request a quote for the DEWALT DXFP845101?

Request a quote by the part number DXFP845101. Tell us the quantity you need. We confirm price, availability and lead time with the quote.
