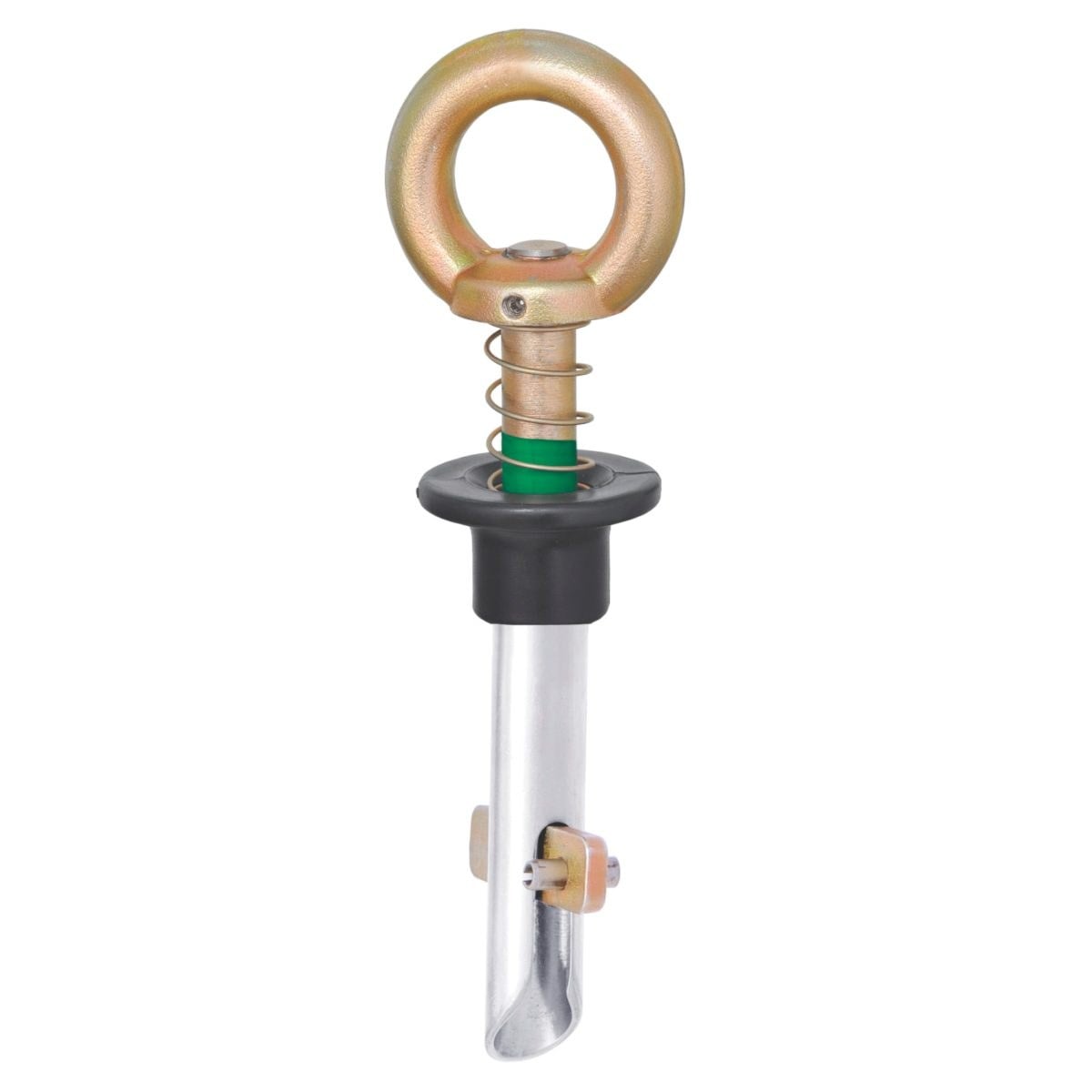

DEWALT DXFP845001 Anchor Point Reusable Steel Girder

What is the DEWALT DXFP845001?

The DEWALT Steel Girder Anchor is a removable and reusable safety anchor point to be mounted on solid steel structures, girders and steel I-beams. It can be installed very easily with one hand and is extremely portable. The maximum thickness of the structure on which installation is possible is 1.57 in. (40mm). Can be used as a vertical or horizontal temporary anchor point on steel structural members. Hole width of 0.83 in. (21 mm) to 1.18 in. (30 mm). Material thickness up to 1.57 in. (40 mm).

What are the key features of the DEWALT DXFP845001?

• Durability: The combination of galvanized and stainless steel provides exceptional strength, wear and corrosion resistance.
• Versatility: FLEXIBILITY: Can be used as a vertical or horizontal temporary anchor point on steel structural members. Hole width of 13/16″ (21mm) to 1-3/16″ (30mm). Material thickness up to 1-9/16″ (40mm).
• Strength: Meets OSHA and ANSI standards of 5,000 lbs. (23kN) anchor point.

What are the specifications of the DEWALT DXFP845001?

Length: 4.77 in. (12.1 cm.)
Weight: 1.2 lbs. ( 550 gr)
Min. Breaking Strength: 5,000 lbs. (2267 kg)
Material: High strength yellow galvanized alloy steel
UPC: 00810091651988

Which standards does the DEWALT DXFP845001 meet?

ANSI Z359.18-2017 Type A; OSHA 1926.502 and 1910.140

How do I request a quote for the DEWALT DXFP845001?

Request a quote by the part number DXFP845001. Tell us the quantity you need. We confirm price, availability and lead time with the quote.
