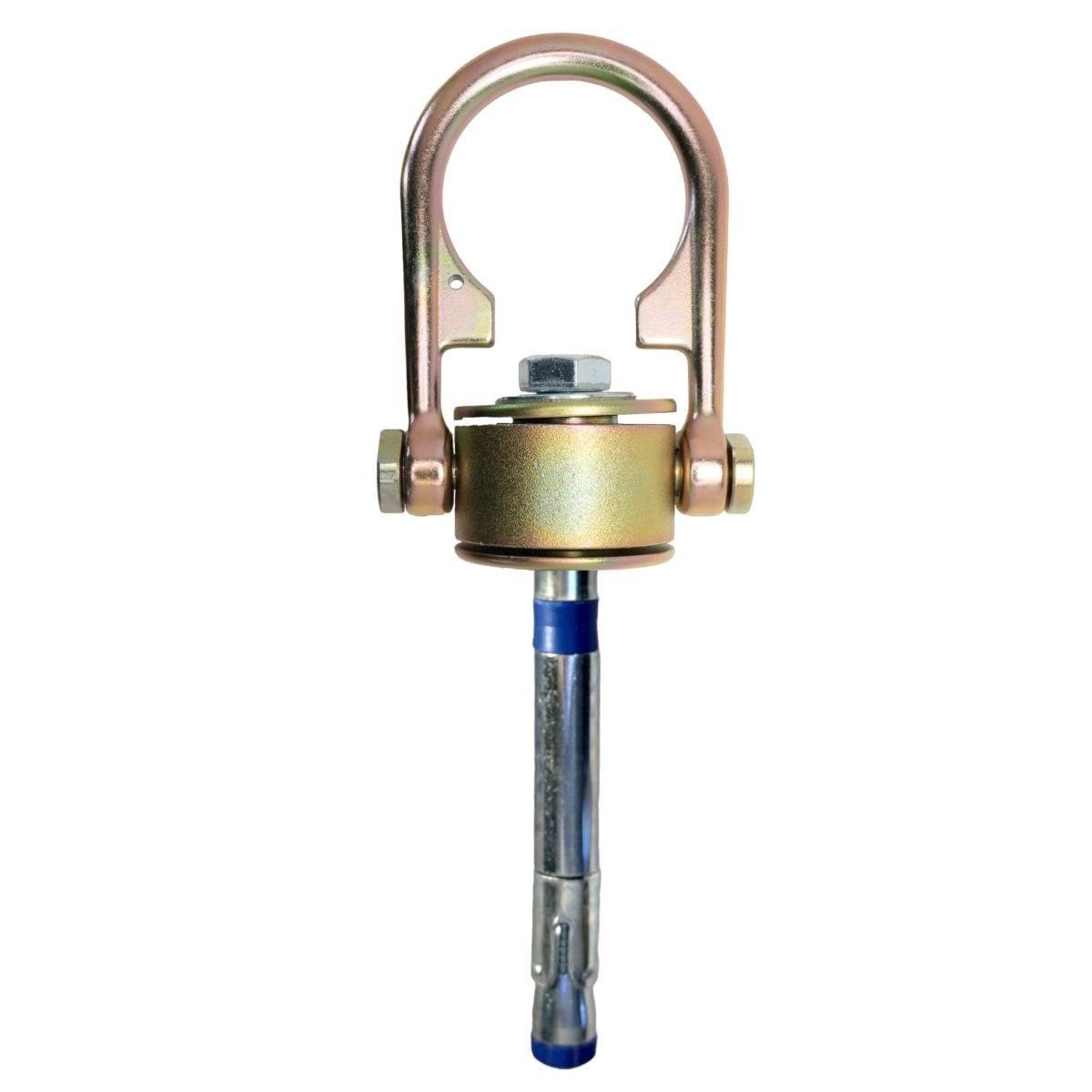

DEWALT DXFP844031 Single Point Swivel Anchor For Concrete With Bolt

What is the DEWALT DXFP844031?

The DEWALT Swiveling Anchor Point for Concrete provides a strong, reusable and corrosion resistant anchor point for post-construction concrete applications.

Includes DEWALT POWER-BOLT®+ Heavy Duty Sleeve Anchor 6945SD-PWR.

What are the key features of the DEWALT DXFP844031?

• Durability: Galvanized Zinc with Silver/Yellow passivation high alloy steel is highly corrosion and rust resistant.
• Versatility: Includes DEWALT POWER-BOLT®+ Heavy Duty Sleeve Anchor 6945SD-PWR.*
• Strength: Meets OSHA and ANSI standards of 5,000 lbs. (23 kN) anchor point.

What are the specifications of the DEWALT DXFP844031?

Anchor Length: 4.45 in. (11.3 cm)- Width 3 in. (7.62 cm)
Bolt Length: 7 in. (17.7 cm)
Anchor Weight: 1.72 lbs ( 0.78 kg)
Bolt Weight: 8.3 oz. (0.24 kg)
Min. Breaking Strength: 5,000 lbs. (2267 kg)
Material: High strength yellow galvanized alloy steel

Which standards does the DEWALT DXFP844031 meet?

ANSI Z359.18-2017 Type A; OSHA 1926.502 and 1910.140

How do I request a quote for the DEWALT DXFP844031?

Request a quote by the part number DXFP844031. Tell us the quantity you need. We confirm price, availability and lead time with the quote.
