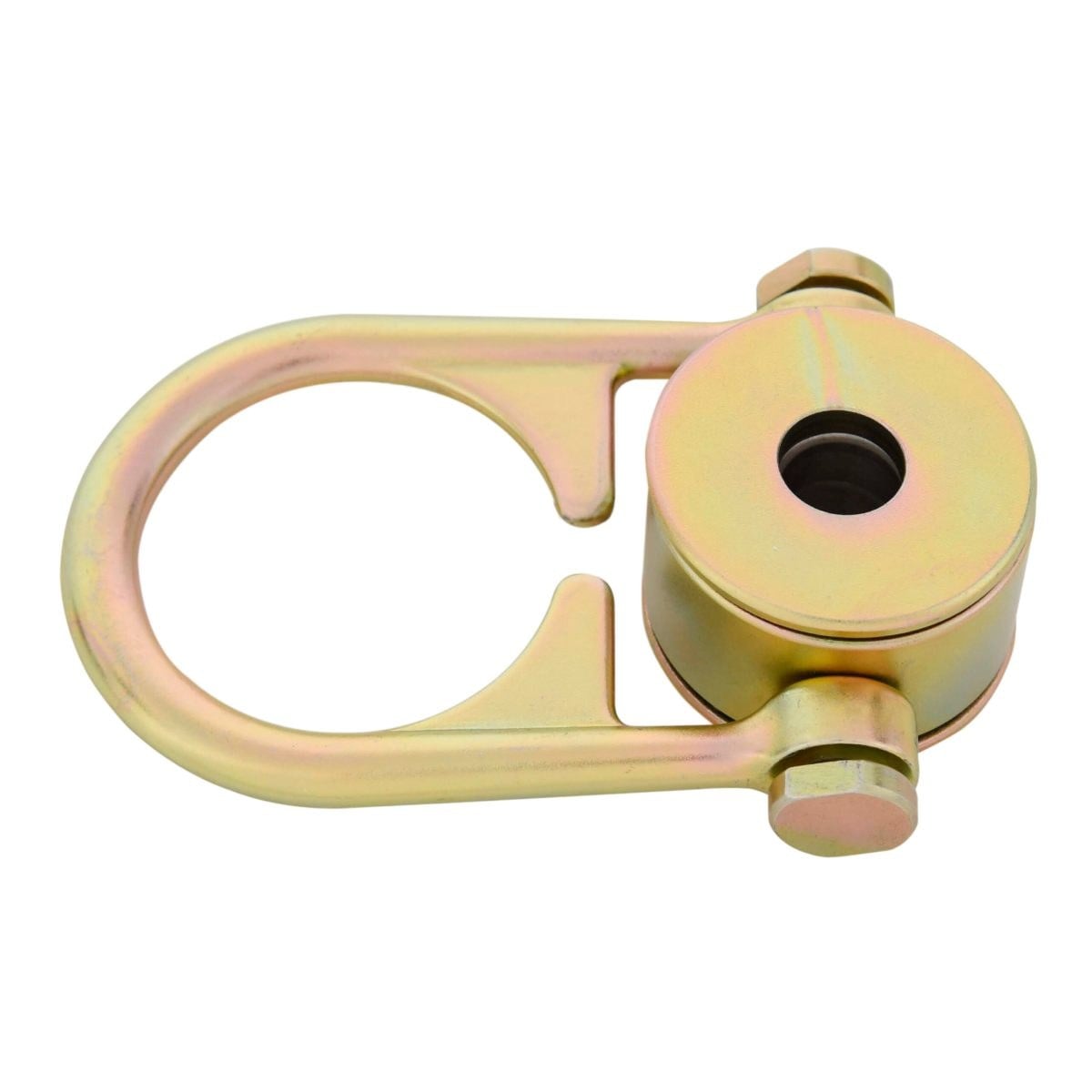

DEWALT DXFP843101 Single Point Anchor Swivel for Concrete Structure

What is the DEWALT DXFP843101?

The DEWALT Swiveling Anchor Point for Concrete provides a strong, reusable and corrosion resistant anchor point for post-construction concrete applications.

For use with DEWALT POWER-BOLT®+ Heavy Duty Sleeve Anchor 6945SD-PWR or equivalent.*

For concrete or a bolt no shorter than 4 in. (100 mm) with a grade 5-8 (or equivalent) with a locking nut and washer must be used for all steel applications.

What are the key features of the DEWALT DXFP843101?

• Durability: Galvanized Zinc with Silver/Yellow passivation high alloy steel is highly corrosion and rust resistant.
• Versatility: Compatible with 5/8 in. (1.58 cm) concrete fastener to be installed in concrete block of minimum 5 in.(12.7 cm) thickness; into a predrilled hole of 3/4 in. (1.9 cm) in diameter up to 4.5 in. (11.4 cm) depth.
• Strength: Meets OSHA and ANSI standards of 10,000 lbs. (45kN) anchor point.

What are the specifications of the DEWALT DXFP843101?

Length: 4.45 in. (11.3 cm)- Width 3 in. (7.62 cm)
Weight: 1.72 lbs. ( 0.78 kg)
Min. Breaking Strength: 5,000 lbs. (2267 kg)
Material: High strength yellow galvanized alloy steel
UPC: 00810091652329

Which standards does the DEWALT DXFP843101 meet?

ANSI Z359.18-2017 Type A; OSHA 1926.502 and 1910.140

How do I request a quote for the DEWALT DXFP843101?

Request a quote by the part number DXFP843101. Tell us the quantity you need. We confirm price, availability and lead time with the quote.
