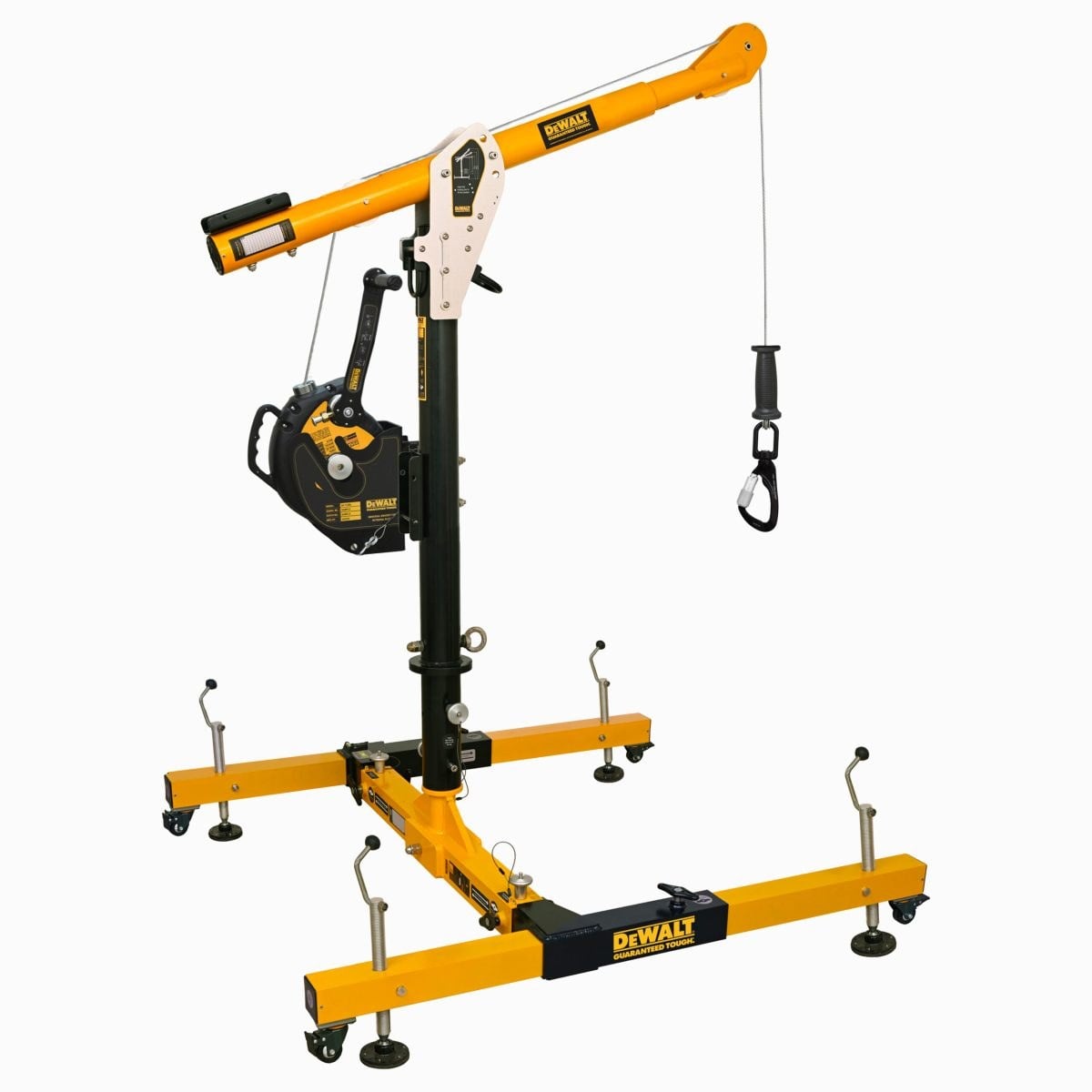

DEWALT DXFP451819-036 5 Piece Davit System, 36 in. (0.91 m) Mast, with 60 ft. (18.2 m) Retrieval SRL

What is the DEWALT DXFP451819-036?

The DEWALT® 5 Piece Davit System with 36 in. (0.91 m) mast, with a 60ft. (18.2 m) Retrieval SRL, provides a portable Fall Protection and Access system for vertical entry/egress into confined spaces.

What are the key features of the DEWALT DXFP451819-036?

• Durability: Built with high strength aluminum alloy, the DEWALT® Davit System components are designed to ensure longevity, even in the toughest conditions.
• Flexibility: The DEWALT® Davit System breaks down into five components for easy storage, transport and setup. No tools are required for assembly Includes pre-installed Winch and Retrieval SRL Mounting brackets Removable legs for easy transportation and installation purpose Multiple anchorage points for fall protection and rescue applications Built-in swivel feature allows the davit column assembly to be rotated up to 360°.
• Strength: Meets OSHA and ANSI standards of 5,000 lbs. (23kN) anchor point.

What are the specifications of the DEWALT DXFP451819-036?

Capacity: ANSI 310 lbs. (141 kg) OSHA 620 lbs. (282 kg) for Rescue
Working Width: 43 in. (1.1 m) to 59 in. (1.5 m)
Max Height: 72 in. (1.8 m)
Weight: 209.5 lbs. (95 kg)
Min. Breaking Strength: 5,000 lbs. (23 kN)
Material: High Strength Aluminum Alloy
UPC: 810091653463

Which standards does the DEWALT DXFP451819-036 meet?

ANSI Z359.18-2017 Type A, ANSI Z359.4-2013; OSHA 1926.502 and 1910.140

How do I request a quote for the DEWALT DXFP451819-036?

Request a quote by the part number DXFP451819-036. Tell us the quantity you need. We confirm price, availability and lead time with the quote.
