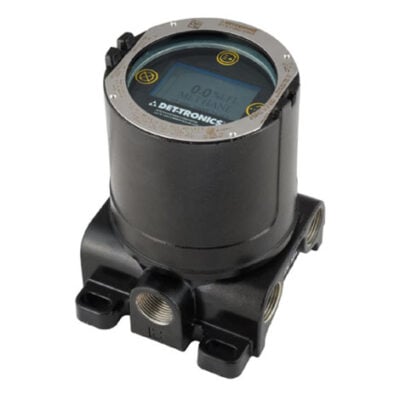

Det-Tronics FlexVu UD10-DCU Universal Display

SKU: UD10-DCU
Manufacturer:
Det-Tronics

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

FlexVu UD10-DCU Universal Display (Spec Sheet 90-1200) is recommended for applications that require a gas detector with digital readout of detected gas levels. Its LON interface board makes the FlexVu UD10 compatible with Eagle Quantum Premier systems by digitizing the 4-20 mA analog signal from the attached sensor/transmitter and transmitting the value as a process variable over the LON to the EQP controller. The UD10 is designed for use with a variety of Det-Tronics gas sensors for combustible and toxic detection, GT3000 and C7064E. When used with the EQP controller, it meets all gas performance standards.

  • Compliance to ANSI/ISA-12.13.01-2000 performance standard
  • Compliance to ISA-92.0.01 Part 1 performance standard, and EN50104 for oxygen depletion
  • Performance certified to FM 6310/6320, CSA 22.2 #152, ATEX EN60079-29-1, and IEC60079-29-1
  • Division Approval Ratings: FM and CSA
  • Zone Approval Ratings: FM, CSA, ATEX, and IECEx
  • Accepts 4-20 mA input from a variety of detection devices (gas, flame, pressure, flow, etc.)
  • Compatible with FlexSonic Acoustic leak detector AC100/ATX10, providing spectrum display and configuration setup menus
  • Non-intrusive menu allows device calibration without de-classifying the hazardous area
  • Continuously displays gas level, gas type, and units measured
  • Alarm setpoints adjustable via network
  • Data logger for event time and date stamping
  • Heated and backlit display
  • IP66 rated
  • Emulates the EQ22xxDCU for direct replacement
  • Replaces EQ2200 DCUEX for direct replacement


FlexVu UD10 DCU Model Matrix

MODEL DESCRIPTION
UD10 Universal Display Unit



TYPE MATERIAL
A Aluminum
S Stainless Steel (316)



TYPE THREAD TYPE
5M 5 Port, Metric M25
5N 5 Port, 3/4″ NPT



TYPE OUTPUTS
28 EQP – DCU Emulator



TYPE APPROVALS
B INMETRO (BRAZIL)
R VNIIFTRI (RUSSIA)
W FM/CSA/ATEX/IECEx



TYPE CLASSIFICATION (Div/Zone)
2 Ex d (Flameproof)



TYPE OPTIONAL CONDITIONING BOARD
C CGS



FlexVu UD10-DCU Universal Display

Model Part Number Material Threads EQP-DCU
Emulator
Cond.
Board
FM/CSA/
ATEX/IECEx
UD10A5M28W2 010765-005 AL M25 X X
UD10A5N28W2 010765-006 AL 3/4 NPT X X
UD10S5M28W2 010765-007 316 SS M25 X X
UD10S5N28W2 010765-008 316 SS 3/4 NPT X X
Ship Weight: Aluminum = 4.2lb (1.9kg) Stainless Steel = 10.5lb (4.8kg)



FlexVu UD10-DCU Universal Display – CGS

Model Part Number Material Threads EQP-DCU
Emulator
Cond.
Board
FM/CSA/
ATEX/IECEx
UD10A5M28W2C 010254-005 AL M25 X CGS X
UD10A5N28W2C 010254-006 AL 3/4 NPT X CGS X
UD10S5M28W2C 010254-007 316 SS M25 X CGS X
UD10S5N28W2C 010254-008 316 SS 3/4 NPT X CGS X
Ship Weight: Aluminum = 4.2lb (1.9kg) Stainless Steel = 10.5lb (4.8kg)



FlexVu UD10 Spare Module

Part Number Description Output Ship Weight
010535-001 UD10 Display Module EQP-DCU 1 lb (0.45 kg)



FlexVu UD10 Accessories

Part Number Description Ship Weight
009700-001 Magnetic Tool <1 lb (0.45 kg)
014019-001 Gas Inspector 11 CD <1 lb (0.45 kg)
014020-001 W6300G1006 Gas Inspector 11 Kit (includes CD) <1 lb (0.45 kg)
102988-002 Plug, 5.0mm, 6 Position – P2 <1 lb (0.45 kg)
102988-026 Plug, 5.0mm, 3 Position – P1 (J10, CGS) <1 lb (0.45 kg)
102988-028 Plug, 5.0mm, 5 Position – (J3, CGS) <1 lb (0.45 kg)
103726-002 Plug, 3.5mm, 3 Position – J2 <1 lb (0.45 kg)
103726-004 Plug, 3.5mm, 5 Position – J3 <1 lb (0.45 kg)
103726-011 Plug, 3.5mm, 12 Position – J4 <1 lb (0.45 kg)



Stop Plugs and Reducers

Part Number Description Ship Weight
101197-001* Stop Plug, 3/4″ NPT, AL <1 lb (<0.45 kg)
101197-004* Stop Plug, 3/4″ NPT, SS <1 lb (<0.45 kg)
101197-005 Stop Plug, M25, AL, IP66 <1 lb (<0.45 kg)
101197-003 Stop Plug, M25, SS, IP66 3.25 lb (1.5 kg)
010816-001* Stop Plug, 20 Pack, 3/4″NPT, AL 1 lb (0.45 kg)
010817-001* Stop Plug, 20 Pack, 3/4″NPT, SS 2 lb (0.9 kg)
010818-001 Stop Plug, 20 Pack, M25, AL,IP66 1.5 lb (0.7 kg)
010819-001 Stop Plug, 20 Pack, M25, SS,IP66 3.25 lb (1.5 kg)
102804-001 Reducer, M25 to M20, AL <1 lb (<0.45 kg)
102804-003 Reducer, M25 to M20, SS <1 lb (<0.45 kg)

*NEMA/TYPE 4 and IP66 rating requires addition of Teflon tape.
