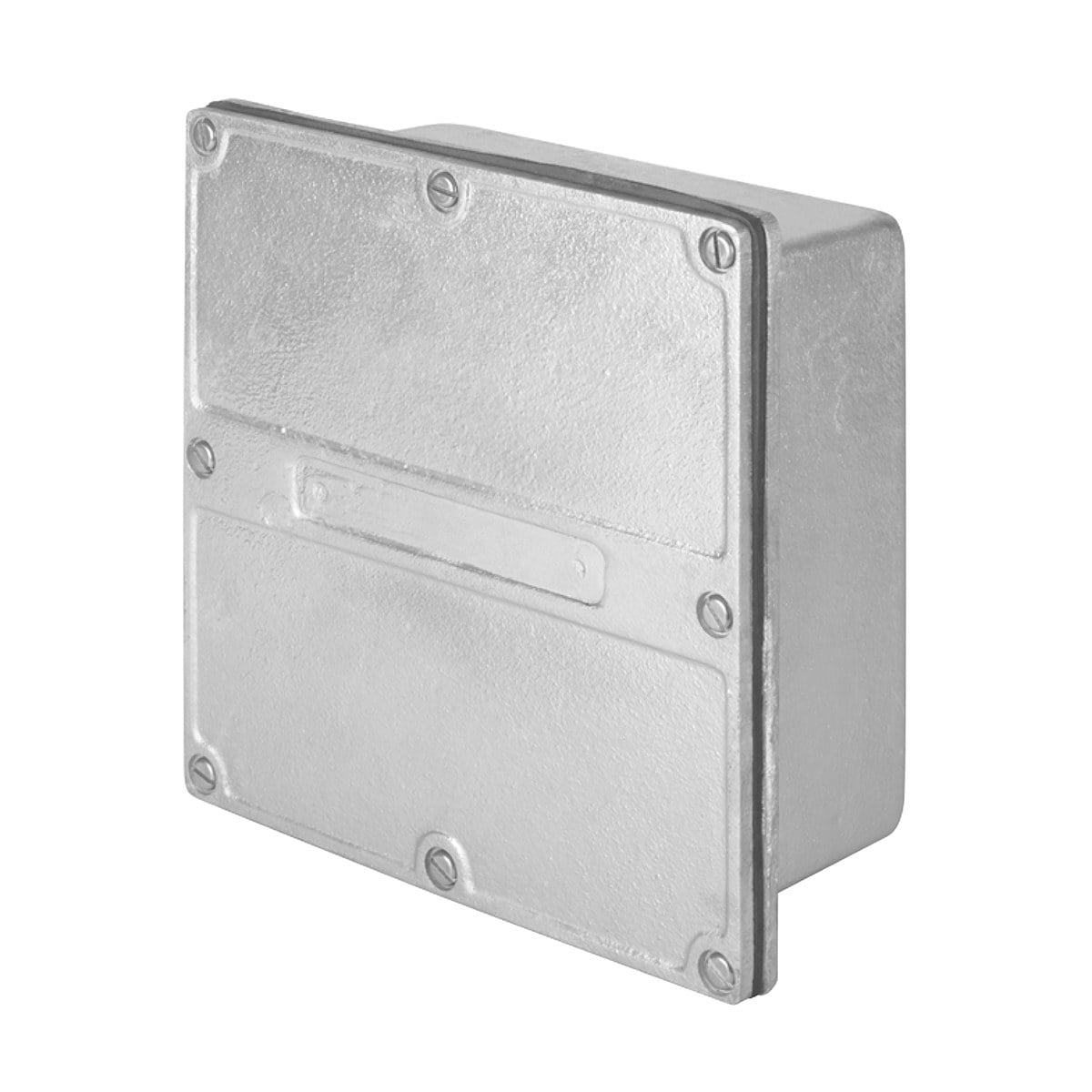

Appleton WYF and O-Z/Gedney YF Type Flat Flanged Boxes

What are Appleton WYF and O-Z/Gedney YF Type Flat Flanged Boxes?

Appleton WYF and O-Z/Gedney YF Type Flat Flanged Boxes are designed for surface mounting and feature a wide flange between the gasket cover and the box to provide greater contact. They serve as intermediate pulling and splicing points in a conduit system. They are ideal for use to protect personnel against accidental contact with enclosed electrical devices or connections and to protect the enclosed devices or connections against external conditions. These raintight, watertight, dust-tight, cast iron, Type 4 boxes are ideal for use in indoor or outdoor environments and are suitable for installations subjected to rain, dripping or splashing water or hose-directed water. The WYF and YF boxes are available in several sizes with custom drilling, tapping, and mounting lug options.

What are the key features of the Appleton WYF and O-Z/Gedney YF Type Flat Flanged Boxes?

• WYF and YF are UL Listed and CSA Certified for use in for Ordinary (Unclassified) Locations and CSA Certified for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit. Supplied with cover gasket.

What are the specifications of the Appleton WYF and O-Z/Gedney YF Type Flat Flanged Boxes?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Product type and listings: Junction Box, Cast Junction Box, NEC Weatherproof, CEC Weatherproof
Enclosure material: Iron
Cover material: Iron

Which Appleton catalog numbers belong to the WYF and O-Z/Gedney YF Type Flat Flanged Boxes?

Appleton lists 45 catalog numbers in this series:

WYF040404, WYF060404, WYF060604, WYF080806, WYF101004, WYF120804, WYF121206, WYF161208, WYF181210, WYF181810, WYF241812, WYF242412, YF040404, YF0404CGH, YF0404CSGH, YF060404, YF0604CGH, YF060604, YF0606CGH, YF0606CSV, YF080806, YF0808CGH, YF0808G, YF101004, YF1010CGH, YF120804, YF1208CGH, YF1208CS, YF1208CSV, YF1208CSVGH, YF121206, YF1212CGH, YF1212CSGH, YF1212CSV, YF1212GASKET, YF161208, YF1612CGH, YF1612CSV, YF181210, YF1812CGH, YF181810, YF1818CGH, YF241812, YF2418CGH, YF242412

How do I request a quote for the Appleton WYF and O-Z/Gedney YF Type Flat Flanged Boxes?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
