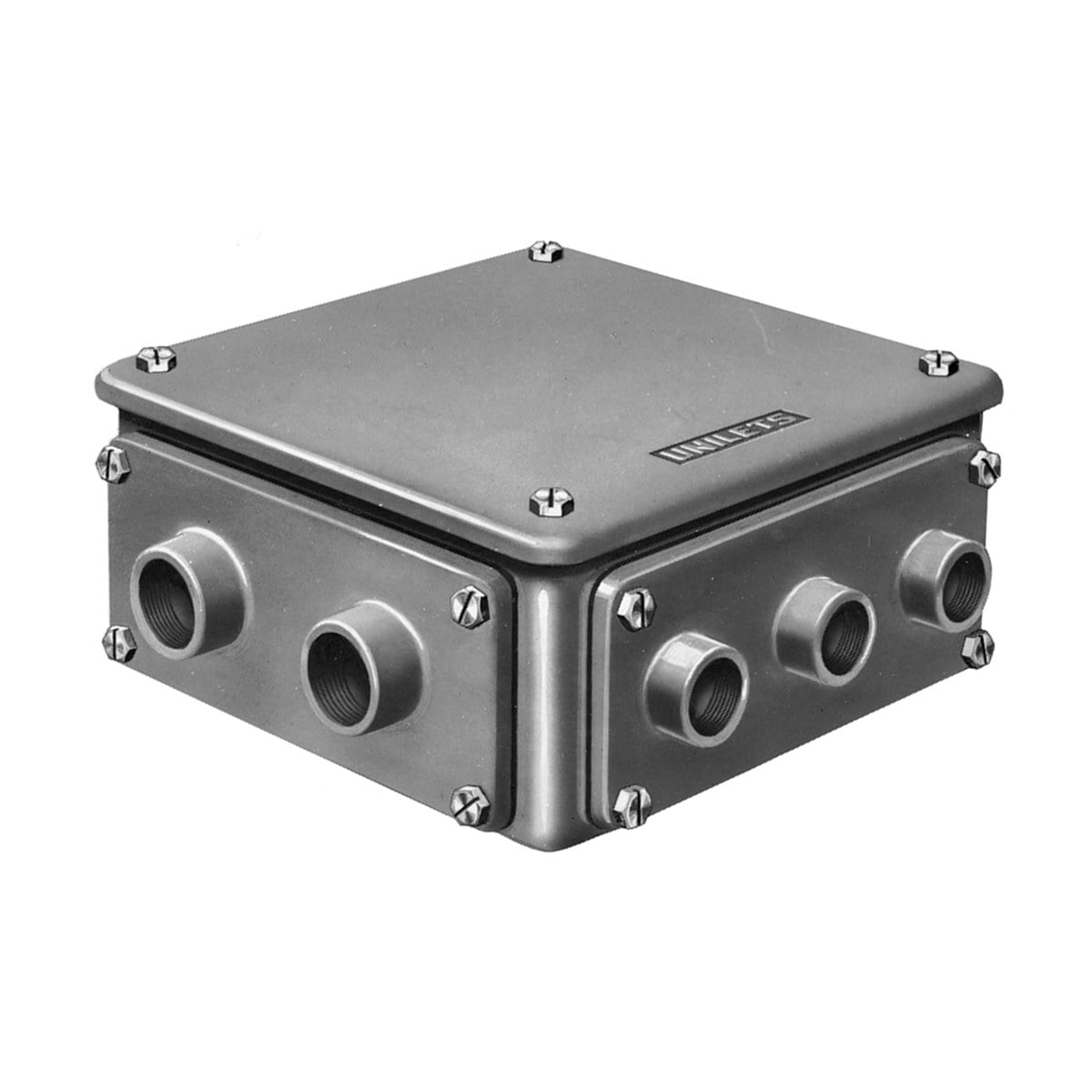

Appleton RS Series Malleable Iron Junction Boxes

What are Appleton RS Series Malleable Iron Junction Boxes?

Appleton Series Malleable Iron Junction Boxes are designed to serve as a main cable distribution center and provide access to the conductors for maintenance. They can be used for adding circuits to existing systems and as pull boxes. Removable hub covers permit variable hub arrangements in a wide range of sizes. They are furnished with a blank top cover and side covers which are available blank or with 1, 2, or 3 hubs. Gaskets and cover screws are supplied for the cover and all open sides. The threads are accurately tapped and tapered for tight, rigid joints and ground continuity. The hubs in all covers have integral bushings to protect conductor insulation from damage.

What are the key features of the Appleton RS Series Malleable Iron Junction Boxes?

• RS is NEC and CEC Rated for use in Ordinary (Unclassified) Locations.
• For Use with Threaded Rigid Metal Conduit and IMC.

What are the specifications of the Appleton RS Series Malleable Iron Junction Boxes?

Environment: Ordinary (Unclassified) Locations
Product type and listings: NEC Explosionproof, CEC Explosionproof, Junction Box, ATEX Flameproof, IECEx Flameproof
Enclosure material: Iron
Cover material: Iron

Which Appleton catalog numbers belong to the RS Series Malleable Iron Junction Boxes?

Appleton lists 29 catalog numbers in this series:

RS1, RSGK, RSK1100, RSK1125, RSK1150, RSK1200, RSK150, RSK175, RSK2100, RSK2125, RSK2150, RSK2200, RSK250, RSK275, RSK3100, RSK3125, RSK350, RSK375, RSKB, RSM1, RSS1, RSSGK, RSSK100, RSSK125, RSSK150, RSSK200, RSSK50, RSSK75, RSSKB

How do I request a quote for the Appleton RS Series Malleable Iron Junction Boxes?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
