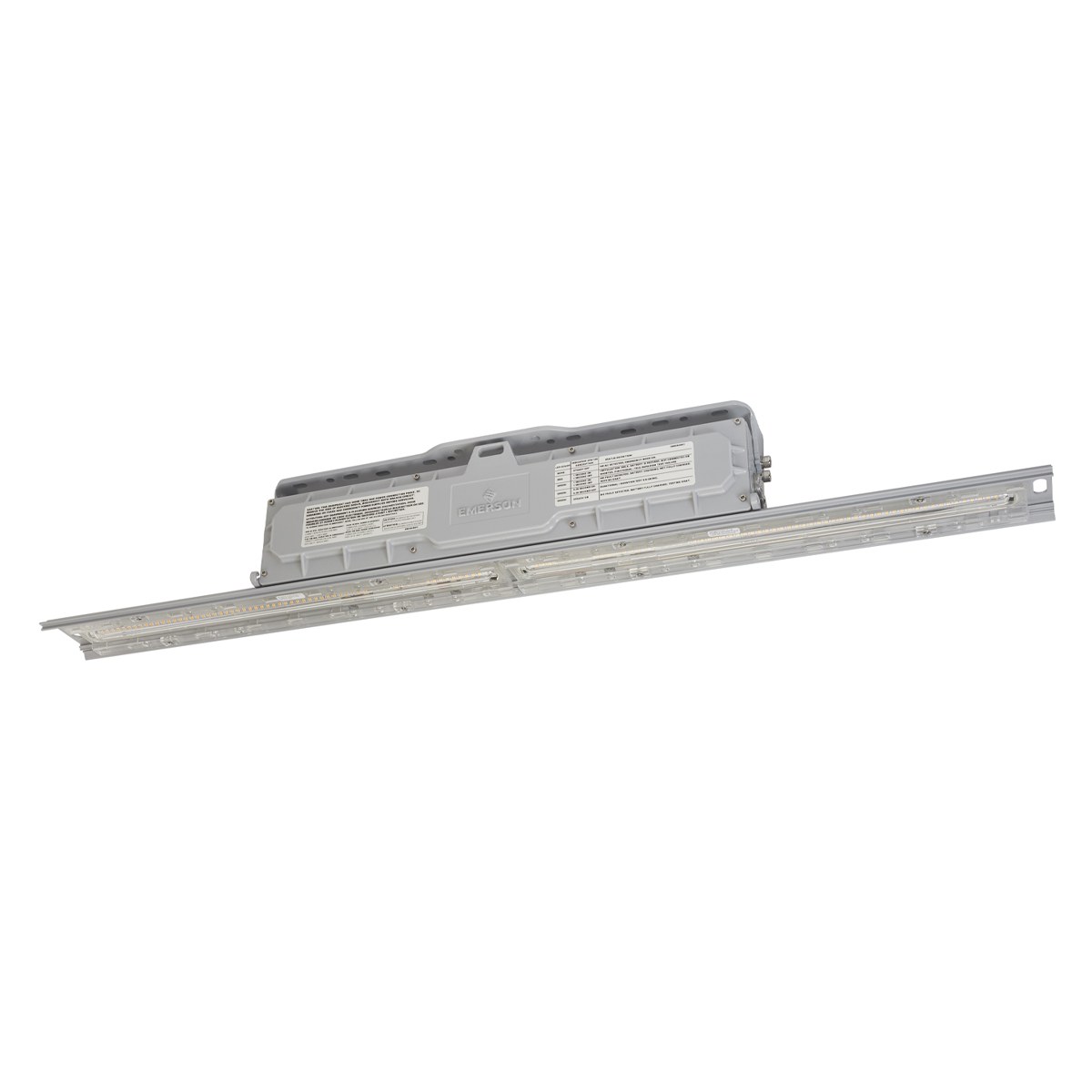

Appleton Rigmaster LED Series Luminaires

What are Appleton Rigmaster LED Series Luminaires?

Appleton Rigmaster LED Series Luminaires are a world class linear lighting solution in a rugged, corrosion-resistant housing, that can be ordered as a standard model or with emergency battery backup to fit all your hazardous location requirements. Providing comfortable, uniform illumination in a lightweight, low profile design, the diverse mounting bracket options ensure this luminaire is easy to install in any new or retrofit task lighting application. Designed for easy wiring, installation, and positioning, the Rigmaster is available in either a 600 mm (23.6 in) 4,300 Lumen or 1100 mm (43.3 in) 7,600 Lumen model. Each offers multiple color temperatures (CCT), globe materials, mountings, and voltages to ensure unprecedented application versatility. Rigmaster is ideal for use in high vibration locations as well as dust and moisture prone environments. With captive hardware and five casted safety retention points, this luminaire is durable enough to handle even the toughest applications.

What are the key features of the Appleton Rigmaster LED Series Luminaires?

• Rigmaster is cCSAus Certified for use in Hazardous (Classified) Locations, and has ABS Certifications.
• Check the Design Lights Consortium (DLC) qualified products listing (QPL) for applicable models. Select models meet International Dark-Sky Association requirements.
• 10 year standard warranty.

What are the specifications of the Appleton Rigmaster LED Series Luminaires?

Environment: Hazardous (Classified) Locations
Lumen output: 4,300, 7,600
Variable lumen output: Not Dimmable
Color temperature: 3000K, 4000K, 5000K
Light distribution: Linear

Which Appleton catalog numbers belong to the Rigmaster LED Series Luminaires?

Appleton lists 339 catalog numbers in this series:

APM050C135HD060, APM050C135HD104, APM050C135UD060, APM050C135UD104, BMMRM, BPLEDGR, RMA21CDLBUNGW, RMA21CPLBUNGT, RMA21CPLBUNGW, RMA21NPLBUNGT, RMA21NPLBUNGW, RMA22CDLBHNGW, RMA22CDLBUNGT, RMA22CDLBUNGW, RMA22CDLBUNGW1, RMA22CDLBUNGW2, RMA22CPLBHNGW, RMA22CPLBHNGW2, RMA22CPLBUNGT, RMA22CPLBUNGT2, RMA22CPLBUNGW, RMA22CPLBUNGW1, RMA22CPLBUNGW2, RMA22NDLBUNGT, RMA22NDLBUNGW, RMA22NPLBUNGT, RMA22NPLBUNGT1, RMA22NPLBUNGT2, RMA22NPLBUNGW, RMA22NPLBUNGW2, RMA22WDLBUNGW2, RMA22WPLBUNGT, RMA22WPLBUNGW, RMA22WPLBUNGW2, RMA41CDLBUNGT, RMA41CDLBUNGW, RMA41CPLBUNGT, RMA41CPLBUNGW, RMA41CPLBUNGW2, RMA41NDLBHNGW2, RMA41NDLBUNGW, RMA41NPLBUNGW, RMA41WPLBUNGW, RMA42CDLBHNGW, RMA42CDLBUNGT, RMA42CDLBUNGW, RMA42CDLBUNGW1, RMA42CDLBUNGW2, RMA42CPLBHNGW, RMA42CPLBUNGT, RMA42CPLBUNGT1, RMA42CPLBUNGT2, RMA42CPLBUNGW, RMA42CPLBUNGW1, RMA42CPLBUNGW2, RMA42NDLBUNGT, RMA42NDLBUNGW, RMA42NPLBHNGW2, RMA42NPLBUNGT, RMA42NPLBUNGT2, RMA42NPLBUNGW, RMA42NPLBUNGW2, RMA42WDLBUNGW, RMA42WPLBUNGT, RMA42WPLBUNGW, RMB21CDLBUNGW, RMB21CPLBUHGT, RMB21CPLBUHGW, RMB21CPLBUNGT, RMB21CPLBUNGW, RMB21WPLBUHGW1, RMB21WPLBUNGW1, RMB22CDLBUEGW, RMB22CDLBUHGT, RMB22CDLBUHGW, RMB22CDLBUHGW1, RMB22CDLBUNGT, RMB22CDLBUNGW, RMB22CDLBUNGW1, RMB22CPLBUEGW, RMB22CPLBUEGW2, RMB22CPLBUHGT, RMB22CPLBUHGT2, RMB22CPLBUHGW, RMB22CPLBUHGW1, RMB22CPLBUHGW2, RMB22CPLBUNGT, RMB22CPLBUNGT2, RMB22CPLBUNGW, RMB22NDLBUHGT, RMB22NDLBUHGW, RMB22NDLBUNGT, RMB22NDLBUNGW, RMB22NPLBUEGW, RMB22NPLBUHGW, RMB22NPLBUNGT, RMB22NPLBUNGW, RMB22WDLBUHGW2, RMB22WDLBUNGW, RMB22WDLBUNGW2, RMB22WPLBUHGT, RMB22WPLBUHGW, RMB41CDLBUHGW, RMB41CDLBUNGT2, RMB41CDLBUNGW1, RMB41CPLBUHGT, RMB41CPLBUHGW, RMB41CPLBUNGW, RMB41CPLBUNGW1, RMB41NDLBHNGW, RMB41NDLBUHGW, RMB41NDLBUNGW, RMB41WDLBUNGW, RMB41WPLBUHGW1, RMB41WPLBUNGW1, RMB42CDLBHNGW, RMB42CDLBUEGW, RMB42CDLBUHGT, RMB42CDLBUHGT2, RMB42CDLBUHGW, RMB42CDLBUNGT, RMB42CDLBUNGW, RMB42CDLBUNGW1, RMB42CDLBUNGW2, RMB42CPLBUEGT, RMB42CPLBUEGW, RMB42CPLBUEGW2, RMB42CPLBUHGT, RMB42CPLBUHGT2, RMB42CPLBUHGW, RMB42CPLBUHGW1, RMB42CPLBUHGW2, RMB42CPLBUNGT, RMB42CPLBUNGT2, RMB42CPLBUNGW, RMB42CPLBUNGW1, RMB42CPLBUNGW2, RMB42HPLBUHGT, RMB42NDLBUHGT, RMB42NDLBUNGT, RMB42NDLBUNGW, RMB42NPLBUEGW, RMB42NPLBUHGT, RMB42NPLBUHGT2, RMB42NPLBUHGW, RMB42NPLBUHGW2, RMB42NPLBUNGT, RMB42NPLBUNGW, RMB42WDLBUNGW, RMB42WPLBUEGW, RMB42WPLBUHGT, RMB42WPLBUHGW, RMB42WPLBUHGW1, RMB42WPLBUNGT, RMB42WPLBUNGW, RMB42WPLBUNGW1, RMBCKIT, RMCL, RMDL, RMGUARD2, RMGUARD4, RMHLPB, RMHLSB, RMHPENDKIT, RML21CDLBUEGW, RML21CDLBUHGW, RML21CDLBUNGT, RML21CDLBUNGW, RML21CPLBUEGW, RML21CPLBUHGT, RML21CPLBUHGW, RML21CPLBUNGT, RML21CPLBUNGW, RML21NDLBUHGW, RML21NDLBUNGW, RML21NPLBUNGT, RML21NPLBUNGW, RML22CDLBUHGT, RML22CDLBUHGW, RML22CDLBUNGT, RML22CDLBUNGT1, RML22CDLBUNGW, RML22CDLBUNGW2, RML22CPLBHNGW, RML22CPLBUHGT, RML22CPLBUHGW, RML22CPLBUNGT, RML22CPLBUNGT1, RML22CPLBUNGT2, RML22CPLBUNGW, RML22CPLBUNGW2, RML22NDLBUHGW, RML22NDLBUNGT, RML22NDLBUNGW, RML22NPLBUEGT, RML22NPLBUHGW, RML22NPLBUNGT, RML22NPLBUNGW, RML22WDLBUHGW, RML22WPLBHNGW, RML22WPLBUHGT, RML22WPLBUHGW, RML22WPLBUNGT1, RML22WPLBUNGW, RML22WPLBUNGW2, RML41CDLBUEGT, RML41CDLBUHGW, RML41CDLBUNGT, RML41CDLBUNGT2, RML41CDLBUNGW, RML41CPLBUEGW, RML41CPLBUHGT1, RML41CPLBUHGW, RML41CPLBUNGT, RML41CPLBUNGT1, RML41CPLBUNGW, RML41NDLBUNGW, RML41NPLBUNGW, RML41NPLBUNGW2, RML41WDLBUNGT, RML41WDLBUNGW, RML42CDLBHNGW, RML42CDLBUEGT, RML42CDLBUEGW, RML42CDLBUHGW, RML42CDLBUNGT, RML42CDLBUNGT1, RML42CDLBUNGT2, RML42CDLBUNGW, RML42CDLBUNGW2, RML42CPLBUEGW2, RML42CPLBUHGT, RML42CPLBUHGT1, RML42CPLBUHGW, RML42CPLBUHGW2, RML42CPLBUNGT, RML42CPLBUNGT1, RML42CPLBUNGT2, RML42CPLBUNGW, RML42CPLBUNGW1, RML42CPLBUNGW2, RML42NDLBUEGT, RML42NDLBUHGT1, RML42NDLBUHGW, RML42NDLBUNGT, RML42NDLBUNGT1, RML42NDLBUNGT2, RML42NDLBUNGW, RML42NPLBUEGT, RML42NPLBUHGW2, RML42NPLBUNGT, RML42NPLBUNGT2, RML42NPLBUNGW, RML42NPLBUNGW2, RML42WPLBUHGW, RML42WPLBUNGW, RML42WPLBUNGW2, RMLPB, RMLSB, RMN21CDLBUNGW, RMN21CPLBUEGT, RMN21CPLBUEGT1, RMN21CPLBUEGW, RMN21CPLBUHGW, RMN21NDLBUNGT, RMN21NDLBUNGW, RMN21NPLBUNGW, RMN21WPLBUHGW, RMN22CDLBHNGW, RMN22CDLBHNGW2, RMN22CDLBUHGT, RMN22CDLBUHGW, RMN22CDLBUHGW2, RMN22CDLBUNGT, RMN22CDLBUNGW, RMN22CDLBUNGW2, RMN22CPLBHNGW, RMN22CPLBHNGW2, RMN22CPLBUEGT, RMN22CPLBUEGT1, RMN22CPLBUEGW, RMN22CPLBUHGT, RMN22CPLBUHGT1, RMN22CPLBUHGW, RMN22CPLBUHGW2, RMN22CPLBUNGT, RMN22CPLBUNGW, RMN22CPLBUNGW2, RMN22NDLBUNGW, RMN22NPLBUNGT, RMN22VDLBUNGW, RMN22WDLBUNGW, RMN22WPLBUNGW, RMN41CDLBUNGT, RMN41CDLBUNGW, RMN41CPLBUEGT, RMN41CPLBUEGT1, RMN41CPLBUHGT, RMN41CPLBUHGW, RMN41CPLBUNGT, RMN41CPLBUNGT1, RMN41CPLBUNGW, RMN41NDLBUHGW, RMN41NDLBUNGW, RMN41NPLBUNGW, RMN41WDLBUNGW, RMN41WPLBUNGW, RMN42CDLBHNGW, RMN42CDLBHNGW2, RMN42CDLBUHGT, RMN42CDLBUHGW, RMN42CDLBUHGW2, RMN42CDLBUNGT, RMN42CDLBUNGW, RMN42CDLBUNGW2, RMN42CPLBHNGW, RMN42CPLBHNGW2, RMN42CPLBUEGT, RMN42CPLBUEGT1, RMN42CPLBUEGW, RMN42CPLBUHGT, RMN42CPLBUHGW, RMN42CPLBUHGW2, RMN42CPLBUNGT, RMN42CPLBUNGT2, RMN42CPLBUNGW, RMN42CPLBUNGW2, RMN42NDLBUHGW1, RMN42NDLBUNGW, RMN42NPLBHNGW, RMN42NPLBUHGT, RMN42NPLBUHGW, RMN42NPLBUNGT, RMN42NPLBUNGW1, RMN42WDLBUNGW, RMN42WPLBUHGT, RMN42WPLBUHGW, RMPENDKIT, RMSSB

How do I request a quote for the Appleton Rigmaster LED Series Luminaires?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
