Appleton IWL LED Series Luminaires

What are Appleton IWL LED Series Luminaires?

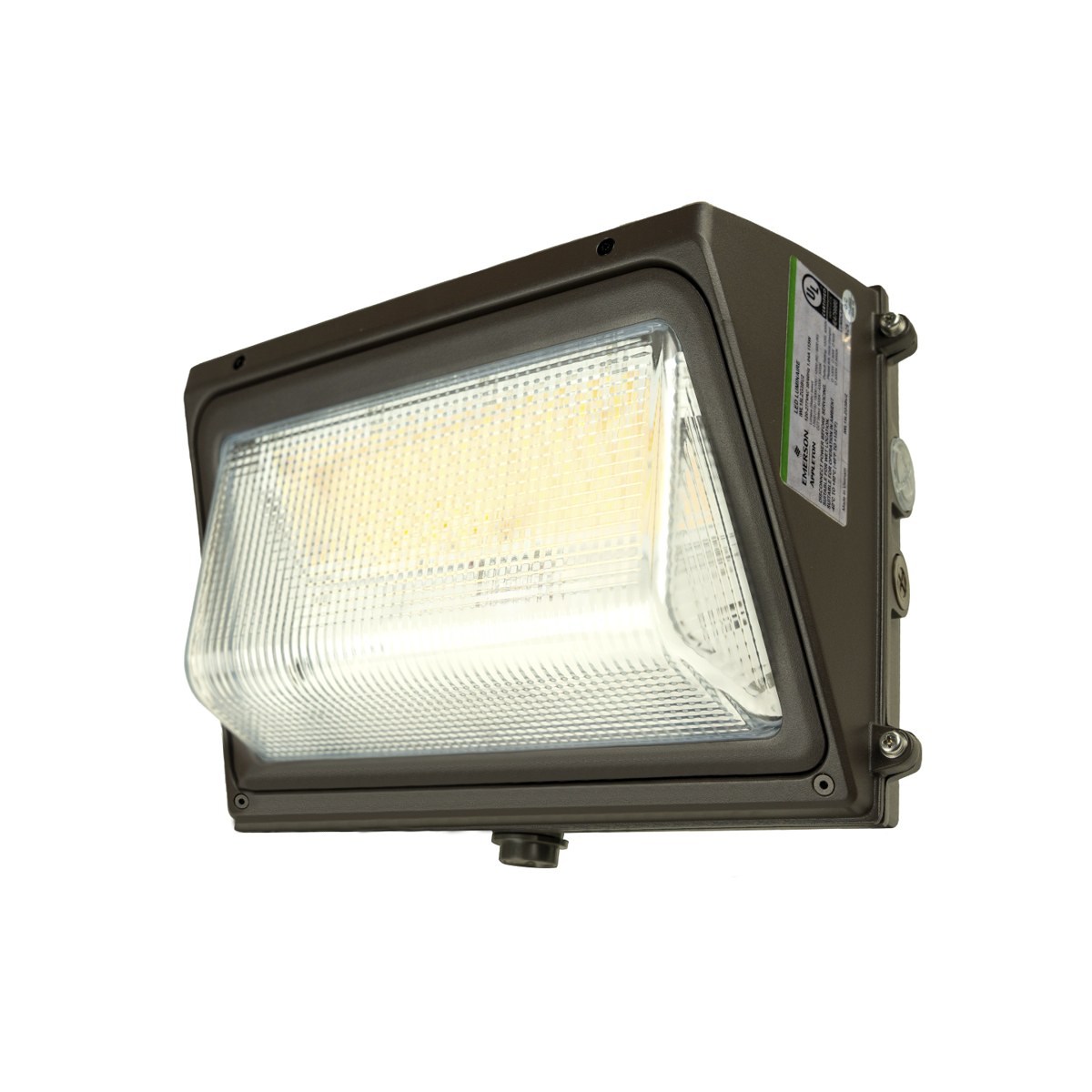

Appleton IWL LED Series is a compact wall pack luminaire designed to provide safe illumination at outdoor entrance doors and along the exterior of buildings. Field selectable wattage and color temperature (CCT) options meet the needs of a variety of applications. Twelve different configurations are available in one luminaire via a selection switch. Efficiently upgrade 100 to 400 Watt HID legacy luminaires with a range of 4,000 to 17,000 nominal lumens and 139 to 159 lumens per Watt (lm/W). Certified IP65 and Listed for Use in Wet Locations, with ambient temperature ratings from -40 to +50 °C (-40 to +122 °F) this offering is suitable for use in a wide range of commercial and industrial areas where condensation and humidity may be present.

What are the key features of the Appleton IWL LED Series Luminaires?

• IWL is cULus Listed for use in Ordinary (Unclassified) Locations.
• Check the Design Lights Consortium (DLC) qualified products listing (QPL) for applicable models.
• Field selectable color temperatures (CCT) and Wattage.
• 5 year standard warranty.

What are the specifications of the Appleton IWL LED Series Luminaires?

Environment: Ordinary (Unclassified) Locations
Lumen output: 5,000, 6,000, 6,000, 7,000, 8,000, 10,000, 10,000, 13,000, 15,000
Variable lumen output: Field Selectable
Color temperature: 3000K, 4000K, 5000K
Light distribution: Type III

Which Appleton catalog numbers belong to the IWL LED Series Luminaires?

Appleton lists 3 catalog numbers in this series:

IWL15LZG3BU2, IWL15LZG3BU2H, IWL7LZG3BU2

How do I request a quote for the Appleton IWL LED Series Luminaires?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
