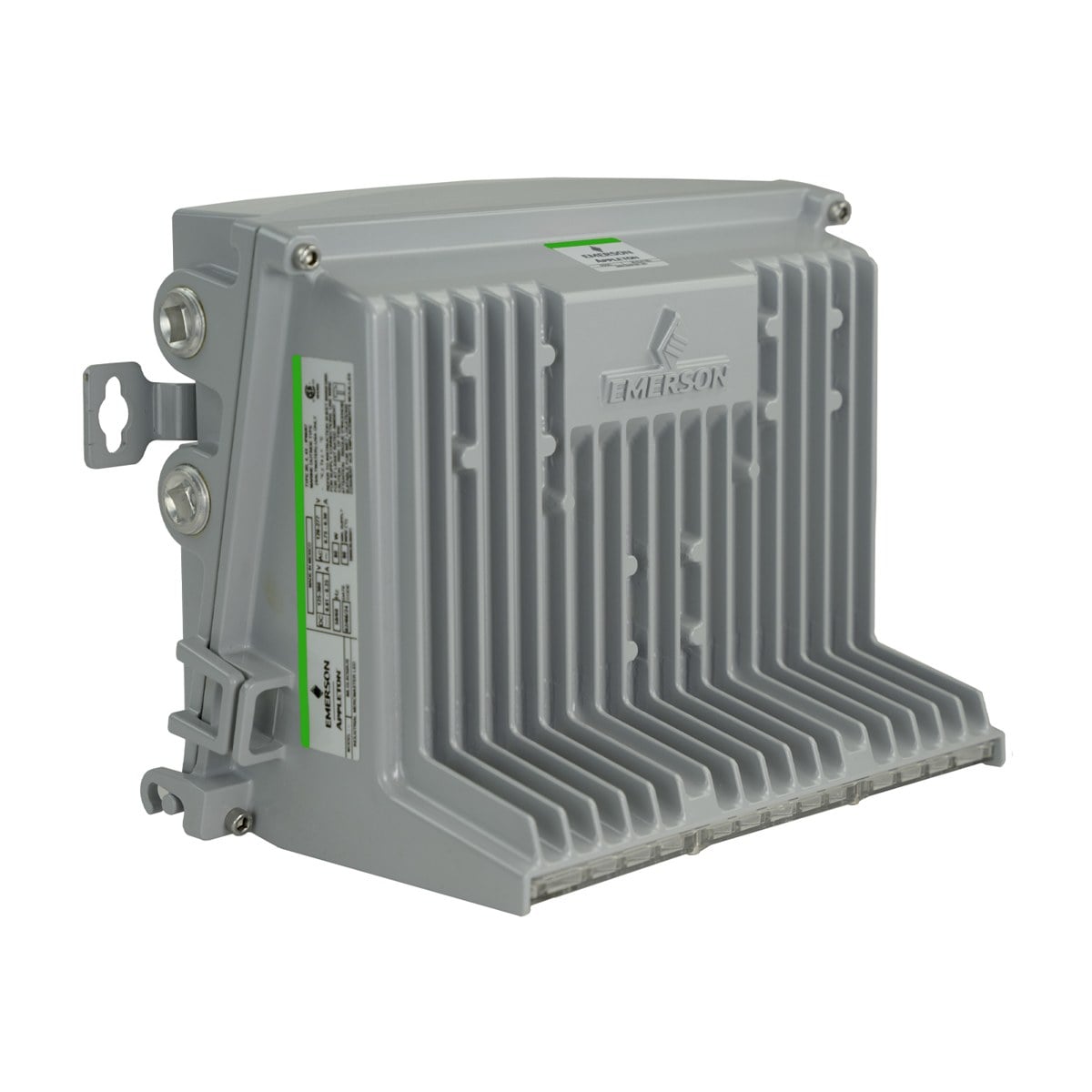

Appleton IWH LED Series Luminaires

What are Appleton IWH LED Series Luminaires?

Appleton IWH LED Series Luminaires are a reliable, full-feature lighting solution in a rugged, corrosion-resistant housing that can be ordered as a standard model or with emergency battery backup. This series offers a multitude of customizable options from a large range of lumen output options, color temperatures (CCT), voltages, and surge protection. These best-in-class LED luminaires achieve unprecedented application versatility and comfort, while meeting the most demanding wall pack lighting requirements in harsh industrial locations. Emerson’s latest innovation in smart lighting for hazardous and industrial locations enables Group Lighting Control of dimmable Appleton LED luminaires. Because the Wallmaster is a dimmable luminaire, it can act as a part of a “controlled” group when the dimming interface is wired to a Connected Appleton LED Luminaire. Up to 10 dimmable LED luminaires can be wired together and the Connected Luminaires advanced capabilities are enabled for the entire run. Appleton Group Lighting Controls optimize lighting levels for each installation type to maximize product life, minimize energy consumption, minimize nighttime lighting usage, improve maintenance planning, and reduce the carbon footprint of the facility.

What are the key features of the Appleton IWH LED Series Luminaires?

• IWH standard and emergency models are cCSAus Certified for use in Heavy Industrial (Ordinary) Locations.
• Check the Design Lights Consortium (DLC) qualified products listing (QPL) for applicable models. Select models meet DarkSky International requirements.
• Two-wire, 0-10V variable dimming input port for controlling the light output.
• 10 year standard warranty.

What are the specifications of the Appleton IWH LED Series Luminaires?

Environment: Industrial (Ordinary) Locations
Lumen output: 5,500, 7,500, 9,500, 12,000, 3,500
Variable lumen output: Variable Dimming
Color temperature: 1800K, 2200K, 3000K, 4000K, 5000K, Amber
Light distribution: Type V Medium

Which Appleton catalog numbers belong to the IWH LED Series Luminaires?

Appleton lists 175 catalog numbers in this series:

IWH122APFBHG, IWH122APFBHGS, IWH122APFBUG, IWH122APFBUGS, IWH122CPFBHG, IWH122CPFBHGS, IWH122CPFBUG, IWH122CPFBUGS, IWH122HPFBHG, IWH122HPFBHGS, IWH122HPFBUG, IWH122HPFBUGS, IWH122NPFBHG, IWH122NPFBHGS, IWH122NPFBUG, IWH122NPFBUGS, IWH122SPFBHG, IWH122SPFBHGS, IWH122SPFBUG, IWH122SPFBUGS, IWH122WPFBHG, IWH122WPFBHGS, IWH122WPFBUG, IWH122WPFBUGS, IWH32APFB2G, IWH32APFBHG, IWH32APFBHGS, IWH32APFBUG, IWH32APFBUGE, IWH32APFBUGH, IWH32APFBUGS, IWH32CPFB2G, IWH32CPFBHG, IWH32CPFBHGS, IWH32CPFBUG, IWH32CPFBUGE, IWH32CPFBUGH, IWH32CPFBUGS, IWH32HPFB2G, IWH32HPFBHG, IWH32HPFBHGS, IWH32HPFBUG, IWH32HPFBUGE, IWH32HPFBUGH, IWH32HPFBUGS, IWH32NPFB2G, IWH32NPFBHG, IWH32NPFBHGS, IWH32NPFBUG, IWH32NPFBUGE, IWH32NPFBUGH, IWH32NPFBUGS, IWH32SPFB2G, IWH32SPFBHG, IWH32SPFBHGS, IWH32SPFBUG, IWH32SPFBUGE, IWH32SPFBUGH, IWH32SPFBUGS, IWH32WPFB2G, IWH32WPFBHG, IWH32WPFBHGS, IWH32WPFBUG, IWH32WPFBUGE, IWH32WPFBUGH, IWH32WPFBUGS, IWH52APFB2G, IWH52APFBHG, IWH52APFBHGS, IWH52APFBUG, IWH52APFBUGE, IWH52APFBUGH, IWH52APFBUGS, IWH52CPFB2G, IWH52CPFBHG, IWH52CPFBHGS, IWH52CPFBUG, IWH52CPFBUGE, IWH52CPFBUGH, IWH52CPFBUGS, IWH52HPFB2G, IWH52HPFBHG, IWH52HPFBHGS, IWH52HPFBUG, IWH52HPFBUGE, IWH52HPFBUGH, IWH52HPFBUGS, IWH52NPFB2G, IWH52NPFBHG, IWH52NPFBHGS, IWH52NPFBUG, IWH52NPFBUGE, IWH52NPFBUGH, IWH52NPFBUGS, IWH52SPFB2G, IWH52SPFBHG, IWH52SPFBHGS, IWH52SPFBUG, IWH52SPFBUGE, IWH52SPFBUGH, IWH52SPFBUGS, IWH52WPFB2G, IWH52WPFBHG, IWH52WPFBHGS, IWH52WPFBUG, IWH52WPFBUGE, IWH52WPFBUGH, IWH52WPFBUGS, IWH72APFB2G, IWH72APFBHG, IWH72APFBHGS, IWH72APFBUG, IWH72APFBUGE, IWH72APFBUGH, IWH72APFBUGS, IWH72CPFB2G, IWH72CPFBHG, IWH72CPFBHGS, IWH72CPFBUG, IWH72CPFBUGE, IWH72CPFBUGH, IWH72CPFBUGS, IWH72HPFB2G, IWH72HPFBHG, IWH72HPFBHGS, IWH72HPFBUG, IWH72HPFBUGE, IWH72HPFBUGH, IWH72HPFBUGS, IWH72NPFB2G, IWH72NPFBHG, IWH72NPFBHGS, IWH72NPFBUG, IWH72NPFBUGE, IWH72NPFBUGH, IWH72NPFBUGS, IWH72SPFB2G, IWH72SPFBHG, IWH72SPFBHGS, IWH72SPFBUG, IWH72SPFBUGE, IWH72SPFBUGH, IWH72SPFBUGS, IWH72WPFB2G, IWH72WPFBHG, IWH72WPFBHGS, IWH72WPFBUG, IWH72WPFBUGE, IWH72WPFBUGH, IWH72WPFBUGS, IWH92APFBHG, IWH92APFBHGS, IWH92APFBUG, IWH92APFBUGS, IWH92CPFBHG, IWH92CPFBHGS, IWH92CPFBUG, IWH92CPFBUGS, IWH92HPFBHG, IWH92HPFBHGS, IWH92HPFBUG, IWH92HPFBUGS, IWH92NPFBHG, IWH92NPFBHGS, IWH92NPFBUG, IWH92NPFBUGS, IWH92SPFBHG, IWH92SPFBHGS, IWH92SPFBUG, IWH92SPFBUGS, IWH92WPFBHG, IWH92WPFBHGS, IWH92WPFBUG, IWH92WPFBUGS, IWHREM

How do I request a quote for the Appleton IWH LED Series Luminaires?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
