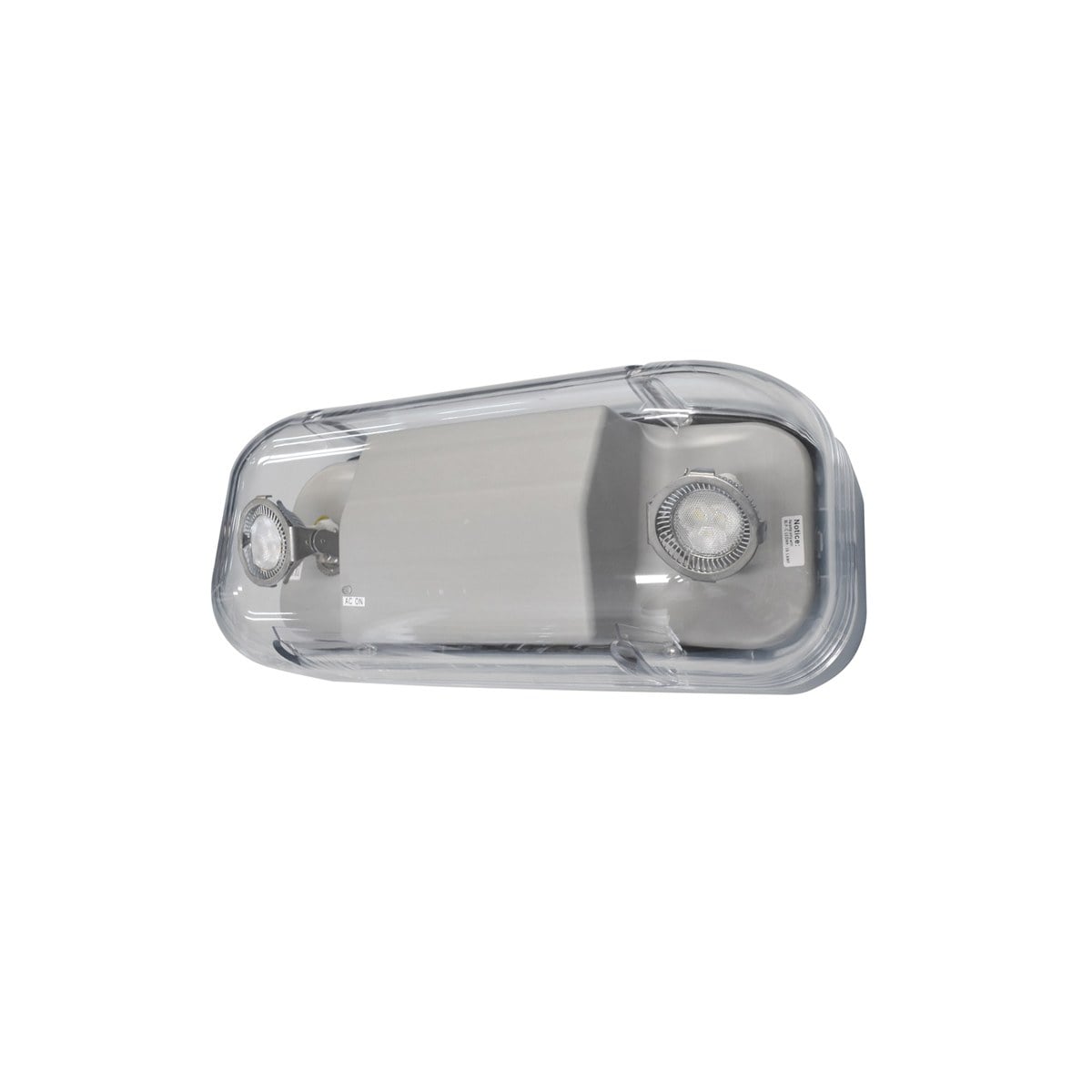

Appleton HEX LED Series

What are Appleton HEX LED Series?

Appleton HEX LED Series is designed for exit and emergency egress lighting and includes exit and emergency signs, an exit and emergency combo unit, and an emergency systems unit. The HEX is ideal for us in hazardous locations where flammable gases and vapors may be present to emphasize an exit route or path of egress. The emergency model is equipped with a rechargeable nickel cadmium battery that lasts a minimum of 90 minutes. It has a self-diagnostic feature that performs monthly, biannual, and annual tests to ensure reliable operation, and a LED indicator to visually communicate fixture operational status. The Exit and Emergency Sign and the Exit and Emergency Combo are available single or double sided with directional arrows that can be snapped out at time of installation. The Exit and Emergency Combo and the Emergency System have adjustable LED lamp heads which can be rotated up to 360 degrees.

What are the key features of the Appleton HEX LED Series?

• HEX is UL Listed for use in Hazardous (Classified) Locations.
• 5 year standard warranty.

What are the specifications of the Appleton HEX LED Series?

Environment: Hazardous (Classified) Locations
Lumen output: 3 Watt, 12 Watt, 15 Watt
Variable lumen output: Not Dimmable
Color temperature: Green, Red

Which Appleton catalog numbers belong to the HEX LED Series?

Appleton lists 67 catalog numbers in this series:

HEX31G12, HEX31G12H, HEX31G27, HEX31G27H, HEX31R12, HEX31R12H, HEX31R27, HEX31R27H, HEX32G12, HEX32G12H, HEX32G27, HEX32G27H, HEX32R12, HEX32R12H, HEX32R27, HEX32R27H, HEXBACKPLT, HEXC122G1212, HEXC122G1212C, HEXC122G126, HEXC122G126C, HEXC122G2712, HEXC122G2712C, HEXC122G276, HEXC122G276C, HEXC122R1212, HEXC122R1212C, HEXC122R126, HEXC122R126C, HEXC122R2712, HEXC122R2712C, HEXC122R276, HEXC122R276C, HEXC151G1212, HEXC151G1212C, HEXC151G126, HEXC151G126C, HEXC151G2712, HEXC151G2712C, HEXC151G276, HEXC151G276C, HEXC151R1212, HEXC151R1212C, HEXC151R126, HEXC151R126C, HEXC151R2712, HEXC151R2712C, HEXC151R276, HEXC151R276C, HEXR1, HEXR2, HEXRLENS, HEXS12BATTERY, HEXS12BATTERYC, HEXS1521212, HEXS1521212C, HEXS152126, HEXS152126C, HEXS1522712, HEXS1522712C, HEXS152276, HEXS152276C, HEXS6BATTERY, HEXS6BATTERYC, HEXSCREWCAP, HEXSLENS, HEXSSCREWCAP

How do I request a quote for the Appleton HEX LED Series?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
