Appleton EXB Cast Iron Junction Boxes

What are Appleton EXB Cast Iron Junction Boxes?

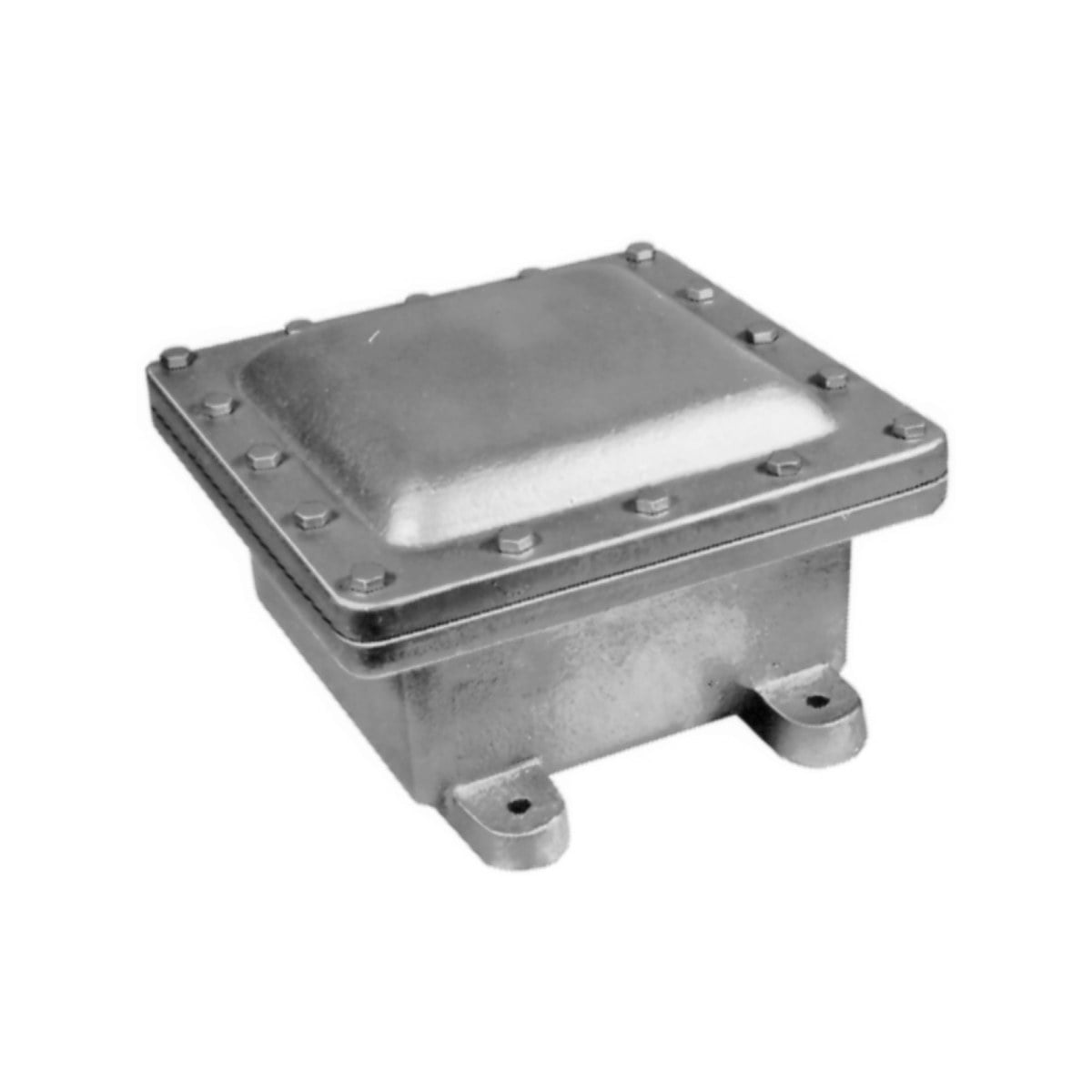

Appleton EXB Cast Iron Junction Boxes are used to protect personnel against accidental contact with enclosed electrical devices or connections and to protect the enclosed devices or connections against specified external conditions. They also serve as intermediate pulling and splicing points in a conduit system. These explosionproof, dust-ignitionproof junction boxes are designed with a precision machined flame path between the box and the cover. The EXB is available in a wide selection of sizes and locations for drilled and tapped openings. They feature extra wide mating surfaces with closely spaced stainless steel hex head cap screws, and integrally cast mounting feet.

What are the key features of the Appleton EXB Cast Iron Junction Boxes?

• EXB is UL Listed and CSA Certified for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit.

What are the specifications of the Appleton EXB Cast Iron Junction Boxes?

Environment: Hazardous (Classified) Locations
Product type and listings: Conduit Outlet Box and Cover, NEC Explosionproof, CEC Explosionproof
Enclosure material: Iron
Cover material: Iron

Which Appleton catalog numbers belong to the EXB Cast Iron Junction Boxes?

Appleton lists 22 catalog numbers in this series:

EXB040404, EXB060404, EXB060604, EXB080604, EXB080606, EXB080804, EXB080806, EXB100806, EXB100808, EXB101006, EXB101008, EXB120804, EXB121206, EXB121208, EXB121212, EXB181204, EXB181206, EXB181208, EXB181806, EXB181808, EXB241808, EXB241808HNGWYM

How do I request a quote for the Appleton EXB Cast Iron Junction Boxes?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
