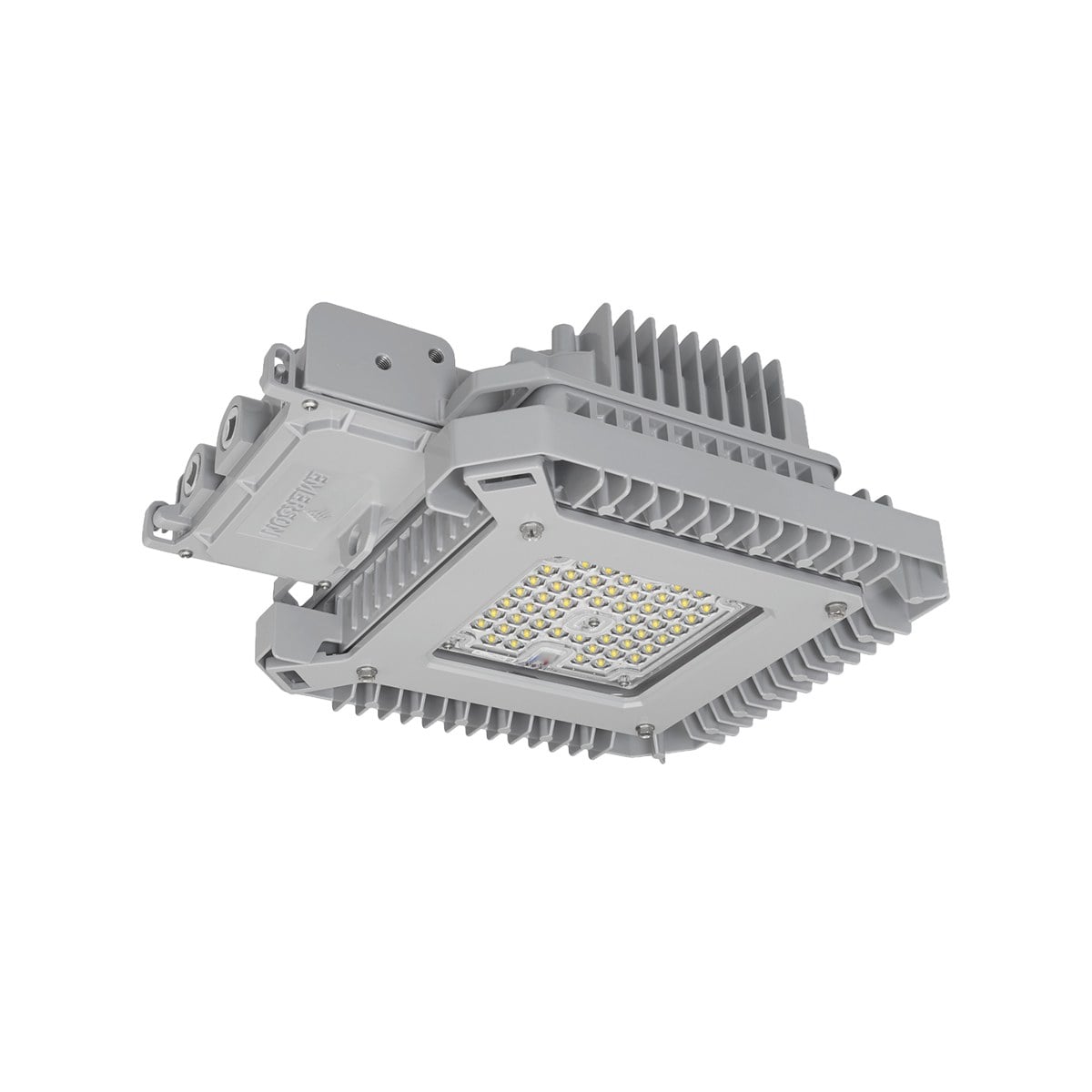

Appleton Baymaster LED Luminaires

What are Appleton Baymaster LED Luminaires?

Appleton Baymaster LED Luminaires deliver easier, faster, and safer lighting installations with its low weight, compact housing, and flexible mounting options. The unique quick mount pendant system allows for easy prewiring without having to support the high bay in place. With its multiple lumen outputs, color temperatures (CCT), light distribution patterns, and a cold operating temperature options, Baymaster provides greater mounting height versatility and superior light quality. These enclosed and gasketed fixtures are suitable for use in a wide range of hazardous, industrial, wet and corrosive environments. Baymaster ensures the diverse illumination needs of your high bay applications are met with high quality, uniform light and wider application versatility. Emerson’s latest innovation in smart lighting for hazardous and industrial locations enables Group Lighting Control of dimmable Appleton LED luminaires. Because the Baymaster LED is a dimmable luminaire, it can act as a part of a “controlled” group when the dimming interface is wired to a Connected Appleton LED Luminaire. Up to 10 dimmable LED luminaires can be wired together and the Connected Luminaires advanced capabilities are enabled for the entire run. Appleton Group Lighting Controls optimize lighting levels for each installation type to maximize product life, minimize energy consumption, minimize nighttime lighting usage, improve maintenance planning, and reduce the carbon footprint of the facility.

What are the key features of the Appleton Baymaster LED Luminaires?

• Baymaster is cETLus Listed, and ATEX, IECEx, and UKEX Certified for use in Hazardous (Classified) Locations. It has ABS Certifications and CE and UKCA Markings.
• Check the Design Lights Consortium (DLC) qualified products listing (QPL) for applicable models. Select models meet International Dark-Sky Association requirements.
• Two-wire, 0-10V variable dimming input port for controlling the light output.
• 10 year standard warranty.

What are the specifications of the Appleton Baymaster LED Luminaires?

Environment: Hazardous (Classified) Locations
Lumen output: 9,500, 15,000, 19,500, 24,000, 30,000, 38,000
Variable lumen output: Variable Dimming
Color temperature: 1800K, 3000K, 4000K, 5000K, Yellow Amber
Light distribution: Aisle, Type V Medium, Type V Wide

Which Appleton catalog numbers belong to the Baymaster LED Luminaires?

Appleton lists 690 catalog numbers in this series:

BHLL1AGMNBU, BHLL1CFMNBH, BHLL1CFMNBHF, BHLL1CFMNBHFS, BHLL1CFMNBHS, BHLL1CFMNBU, BHLL1CFMNBUF, BHLL1CFMNBUFS, BHLL1CFMNBUS, BHLL1CFWNBU, BHLL1CFWNBUS, BHLL1CGMNBH, BHLL1CGMNBHF, BHLL1CGMNBHFS, BHLL1CGMNBHS, BHLL1CGMNBU, BHLL1CGMNBUF, BHLL1CGMNBUFS, BHLL1CGMNBUS, BHLL1CGNNBH, BHLL1CGNNBHF, BHLL1CGNNBHFS, BHLL1CGNNBHS, BHLL1CGNNBU, BHLL1CGNNBUF, BHLL1CGNNBUFS, BHLL1CGNNBUS, BHLL1CGVNBU, BHLL1CGVNBUS, BHLL1CGWNBH, BHLL1CGWNBHF, BHLL1CGWNBHFS, BHLL1CGWNBHS, BHLL1CGWNBU, BHLL1CGWNBUF, BHLL1CGWNBUFS, BHLL1CGWNBUS, BHLL1NFMNBU, BHLL1SGMNBU, BHLL1WGMNBU, BHLL1WGNNBH, BHLL1WGNNBHF, BHLL1WGNNBHFS, BHLL1WGNNBHS, BHLL1WGNNBU, BHLL1WGNNBUF, BHLL1WGNNBUFS, BHLL1WGNNBUS, BHLL1WGWNBH, BHLL1WGWNBHF, BHLL1WGWNBHFS, BHLL1WGWNBHS, BHLL1WGWNBU, BHLL1WGWNBUF, BHLL1WGWNBUFS, BHLL1WGWNBUS, BHLL2CFMNBH, BHLL2CFMNBHF, BHLL2CFMNBHFS, BHLL2CFMNBHS, BHLL2CFMNBU, BHLL2CFMNBUF, BHLL2CFMNBUFS, BHLL2CFMNBUS, BHLL2CFNNBU, BHLL2CGMNBH, BHLL2CGMNBHF, BHLL2CGMNBHFS, BHLL2CGMNBHS, BHLL2CGMNBU, BHLL2CGMNBUF, BHLL2CGMNBUFS, BHLL2CGMNBUP, BHLL2CGMNBUS, BHLL2CGNNBH, BHLL2CGNNBHF, BHLL2CGNNBHFS, BHLL2CGNNBHS, BHLL2CGNNBU, BHLL2CGNNBUF, BHLL2CGNNBUFS, BHLL2CGNNBUS, BHLL2CGWNBH, BHLL2CGWNBHF, BHLL2CGWNBHFS, BHLL2CGWNBHS, BHLL2CGWNBU, BHLL2CGWNBUF, BHLL2CGWNBUFS, BHLL2CGWNBUS, BHLL2NDWNBUP, BHLL2NGMNBU, BHLL2WGNNBH, BHLL2WGNNBHF, BHLL2WGNNBHFS, BHLL2WGNNBHS, BHLL2WGNNBU, BHLL2WGNNBUF, BHLL2WGNNBUFS, BHLL2WGNNBUS, BHLL2WGWNBH, BHLL2WGWNBHF, BHLL2WGWNBHFS, BHLL2WGWNBHS, BHLL2WGWNBU, BHLL2WGWNBUF, BHLL2WGWNBUFS, BHLL2WGWNBUS, BHLL3CFMNBH, BHLL3CFMNBHF, BHLL3CFMNBHFS, BHLL3CFMNBHS, BHLL3CFMNBU, BHLL3CFMNBUF, BHLL3CFMNBUFS, BHLL3CFMNBUS, BHLL3CGMNBH, BHLL3CGMNBHF, BHLL3CGMNBHFS, BHLL3CGMNBHS, BHLL3CGMNBU, BHLL3CGMNBUF, BHLL3CGMNBUFS, BHLL3CGMNBUS, BHLL3CGNNBH, BHLL3CGNNBHF, BHLL3CGNNBHFS, BHLL3CGNNBHS, BHLL3CGNNBU, BHLL3CGNNBUF, BHLL3CGNNBUFS, BHLL3CGNNBUS, BHLL3CGWNBH, BHLL3CGWNBHF, BHLL3CGWNBHFS, BHLL3CGWNBHS, BHLL3CGWNBU, BHLL3CGWNBUF, BHLL3CGWNBUFS, BHLL3CGWNBUS, BHLL3NGMNBHFS, BHLL3NGMNBHS, BHLL3NGMNBU, BHLL3NGWNBU, BHLL3WGNNBH, BHLL3WGNNBHF, BHLL3WGNNBHFS, BHLL3WGNNBHS, BHLL3WGNNBU, BHLL3WGNNBUF, BHLL3WGNNBUFS, BHLL3WGNNBUS, BHLL3WGWNBH, BHLL3WGWNBHF, BHLL3WGWNBHFS, BHLL3WGWNBHS, BHLL3WGWNBU, BHLL3WGWNBUF, BHLL3WGWNBUFS, BHLL3WGWNBUS, BHLL7NDWNBUP, BHLPL1AFMNBHF, BHLPL1AFMNBUF, BHLPL1AFMNBUS, BHLPL1AFVNBHF, BHLPL1CFMNBH, BHLPL1CFMNBHF, BHLPL1CFMNBHFS, BHLPL1CFMNBHS, BHLPL1CFMNBU, BHLPL1CFMNBUF, BHLPL1CFMNBUFS, BHLPL1CFMNBUS, BHLPL1CFWNBU, BHLPL1CGMNBH, BHLPL1CGMNBHF, BHLPL1CGMNBHFS, BHLPL1CGMNBHS, BHLPL1CGMNBU, BHLPL1CGMNBUF, BHLPL1CGMNBUFS, BHLPL1CGMNBUS, BHLPL1CGNNBH, BHLPL1CGNNBHF, BHLPL1CGNNBHFS, BHLPL1CGNNBHS, BHLPL1CGNNBU, BHLPL1CGNNBUF, BHLPL1CGNNBUFS, BHLPL1CGNNBUS, BHLPL1CGWNBH, BHLPL1CGWNBHF, BHLPL1CGWNBHFS, BHLPL1CGWNBHS, BHLPL1CGWNBU, BHLPL1CGWNBUF, BHLPL1CGWNBUFS, BHLPL1CGWNBUS, BHLPL1NFWNBUC, BHLPL1NGMNBU, BHLPL1NGWNBU, BHLPL1NGWNBUC, BHLPL1SFWNBUC, BHLPL1SGMNBU, BHLPL1WFVNBHF, BHLPL1WGMNBU, BHLPL1WGNNBH, BHLPL1WGNNBHF, BHLPL1WGNNBHFS, BHLPL1WGNNBHS, BHLPL1WGNNBU, BHLPL1WGNNBUF, BHLPL1WGNNBUFS, BHLPL1WGNNBUS, BHLPL1WGWNBH, BHLPL1WGWNBHF, BHLPL1WGWNBHFS, BHLPL1WGWNBHS, BHLPL1WGWNBU, BHLPL1WGWNBUF, BHLPL1WGWNBUFS, BHLPL1WGWNBUS, BHLPL2CFMNBH, BHLPL2CFMNBHF, BHLPL2CFMNBHFS, BHLPL2CFMNBHS, BHLPL2CFMNBU, BHLPL2CFMNBUF, BHLPL2CFMNBUFS, BHLPL2CFMNBUS, BHLPL2CFWNBU, BHLPL2CFWNBUS, BHLPL2CGMNBH, BHLPL2CGMNBHF, BHLPL2CGMNBHFS, BHLPL2CGMNBHS, BHLPL2CGMNBU, BHLPL2CGMNBUF, BHLPL2CGMNBUFS, BHLPL2CGMNBUS, BHLPL2CGNNBH, BHLPL2CGNNBHF, BHLPL2CGNNBHFS, BHLPL2CGNNBHS, BHLPL2CGNNBU, BHLPL2CGNNBUF, BHLPL2CGNNBUFS, BHLPL2CGNNBUS, BHLPL2CGWNBH, BHLPL2CGWNBHF, BHLPL2CGWNBHFS, BHLPL2CGWNBHS, BHLPL2CGWNBU, BHLPL2CGWNBUF, BHLPL2CGWNBUFS, BHLPL2CGWNBUS, BHLPL2NGMNBU, BHLPL2SFVNBH, BHLPL2SFVNBHF, BHLPL2SFVNBHFS, BHLPL2SFVNBU, BHLPL2WFVNBHF, BHLPL2WGNNBH, BHLPL2WGNNBHF, BHLPL2WGNNBHFS, BHLPL2WGNNBHS, BHLPL2WGNNBU, BHLPL2WGNNBUF, BHLPL2WGNNBUFS, BHLPL2WGNNBUS, BHLPL2WGWNBH, BHLPL2WGWNBHF, BHLPL2WGWNBHFS, BHLPL2WGWNBHS, BHLPL2WGWNBU, BHLPL2WGWNBUF, BHLPL2WGWNBUFS, BHLPL2WGWNBUS, BHLPL3CFMNBH, BHLPL3CFMNBHF, BHLPL3CFMNBHFS, BHLPL3CFMNBHS, BHLPL3CFMNBU, BHLPL3CFMNBUF, BHLPL3CFMNBUFS, BHLPL3CFMNBUS, BHLPL3CFWNBU, BHLPL3CGMNBH, BHLPL3CGMNBHF, BHLPL3CGMNBHFS, BHLPL3CGMNBHS, BHLPL3CGMNBU, BHLPL3CGMNBUF, BHLPL3CGMNBUFS, BHLPL3CGMNBUS, BHLPL3CGNNBH, BHLPL3CGNNBHF, BHLPL3CGNNBHFS, BHLPL3CGNNBHS, BHLPL3CGNNBU, BHLPL3CGNNBUF, BHLPL3CGNNBUFS, BHLPL3CGNNBUS, BHLPL3CGWNBH, BHLPL3CGWNBHF, BHLPL3CGWNBHFS, BHLPL3CGWNBHS, BHLPL3CGWNBU, BHLPL3CGWNBUF, BHLPL3CGWNBUFS, BHLPL3CGWNBUS, BHLPL3NFMNBU, BHLPL3NGMNBHFS, BHLPL3NGMNBHS, BHLPL3NGMNBU, BHLPL3WGNNBH, BHLPL3WGNNBHF, BHLPL3WGNNBHFS, BHLPL3WGNNBHS, BHLPL3WGNNBU, BHLPL3WGNNBUF, BHLPL3WGNNBUFS, BHLPL3WGNNBUS, BHLPL3WGWNBH, BHLPL3WGWNBHF, BHLPL3WGWNBHFS, BHLPL3WGWNBHS, BHLPL3WGWNBU, BHLPL3WGWNBUF, BHLPL3WGWNBUFS, BHLPL3WGWNBUS, BLLDIFFP, BLLL6AFMNBUFM, BLLL6AFMNBUFS, BLLL6AFMNBUFSM, BLLL6CDMNBH, BLLL6CDWNBUP, BLLL6CFMNBH, BLLL6CFMNBHF, BLLL6CFMNBHFS, BLLL6CFMNBHS, BLLL6CFMNBU, BLLL6CFMNBUF, BLLL6CFMNBUFS, BLLL6CFMNBUS, BLLL6CGANBH, BLLL6CGANBHF, BLLL6CGANBHFS, BLLL6CGANBHS, BLLL6CGANBU, BLLL6CGANBUF, BLLL6CGANBUFS, BLLL6CGANBUS, BLLL6CGMNBH, BLLL6CGMNBHF, BLLL6CGMNBHFS, BLLL6CGMNBHS, BLLL6CGMNBU, BLLL6CGMNBUF, BLLL6CGMNBUFS, BLLL6CGMNBUP, BLLL6CGMNBUS, BLLL6CGWNBH, BLLL6CGWNBHF, BLLL6CGWNBHFS, BLLL6CGWNBHS, BLLL6CGWNBU, BLLL6CGWNBUF, BLLL6CGWNBUFS, BLLL6CGWNBUS, BLLL6WGANBH, BLLL6WGANBHF, BLLL6WGANBHFS, BLLL6WGANBHS, BLLL6WGANBU, BLLL6WGANBUF, BLLL6WGANBUFS, BLLL6WGANBUS, BLLL6WGWNBH, BLLL6WGWNBHF, BLLL6WGWNBHFS, BLLL6WGWNBHS, BLLL6WGWNBU, BLLL6WGWNBUF, BLLL6WGWNBUFS, BLLL6WGWNBUS, BLLL7AFMNBUFSP, BLLL7AGANBU, BLLL7CDANBU, BLLL7CDMNBU, BLLL7CFMNBH, BLLL7CFMNBHF, BLLL7CFMNBHFS, BLLL7CFMNBHS, BLLL7CFMNBU, BLLL7CFMNBUF, BLLL7CFMNBUFS, BLLL7CFMNBUS, BLLL7CGANBH, BLLL7CGANBHF, BLLL7CGANBHFS, BLLL7CGANBHS, BLLL7CGANBU, BLLL7CGANBUF, BLLL7CGANBUFS, BLLL7CGANBUS, BLLL7CGMNBH, BLLL7CGMNBHF, BLLL7CGMNBHFS, BLLL7CGMNBHS, BLLL7CGMNBU, BLLL7CGMNBUF, BLLL7CGMNBUFS, BLLL7CGMNBUS, BLLL7CGWNBH, BLLL7CGWNBHF, BLLL7CGWNBHFS, BLLL7CGWNBHS, BLLL7CGWNBU, BLLL7CGWNBUF, BLLL7CGWNBUFS, BLLL7CGWNBUM, BLLL7CGWNBUS, BLLL7NDANBU, BLLL7NDWNBU, BLLL7NDWNBUP, BLLL7NGANBU, BLLL7NGMNBH, BLLL7NGMNBU, BLLL7SFANBU, BLLL7SFANBUFP, BLLL7SFANBUFSP, BLLL7SFMNBUFSP, BLLL7SGANBU, BLLL7WGANBH, BLLL7WGANBHF, BLLL7WGANBHFS, BLLL7WGANBHS, BLLL7WGANBU, BLLL7WGANBUF, BLLL7WGANBUFS, BLLL7WGANBUS, BLLL7WGMNBU, BLLL7WGWNBH, BLLL7WGWNBHF, BLLL7WGWNBHFS, BLLL7WGWNBHS, BLLL7WGWNBU, BLLL7WGWNBUF, BLLL7WGWNBUFS, BLLL7WGWNBUS, BLLL8AGANBU, BLLL8CDMNBU, BLLL8CDMNBUF, BLLL8CDMNBUFS, BLLL8CDMNBUS, BLLL8CDWNBU, BLLL8CFMNBH, BLLL8CFMNBHF, BLLL8CFMNBHFS, BLLL8CFMNBHS, BLLL8CFMNBU, BLLL8CFMNBUF, BLLL8CFMNBUFS, BLLL8CFMNBUS, BLLL8CGANBH, BLLL8CGANBHF, BLLL8CGANBHFS, BLLL8CGANBHS, BLLL8CGANBU, BLLL8CGANBUF, BLLL8CGANBUFS, BLLL8CGANBUS, BLLL8CGMNBH, BLLL8CGMNBHF, BLLL8CGMNBHFS, BLLL8CGMNBHS, BLLL8CGMNBU, BLLL8CGMNBUF, BLLL8CGMNBUFS, BLLL8CGMNBUS, BLLL8CGWNBH, BLLL8CGWNBHF, BLLL8CGWNBHFS, BLLL8CGWNBHS, BLLL8CGWNBU, BLLL8CGWNBUF, BLLL8CGWNBUFS, BLLL8CGWNBUM, BLLL8CGWNBUS, BLLL8NDMNBU, BLLL8NGANBU, BLLL8NGMNBH, BLLL8NGMNBU, BLLL8NGWNBU, BLLL8SFANBU, BLLL8SFWNBH, BLLL8SFWNBU, BLLL8SGANBU, BLLL8WGANBH, BLLL8WGANBHF, BLLL8WGANBHFS, BLLL8WGANBHS, BLLL8WGANBU, BLLL8WGANBUF, BLLL8WGANBUFS, BLLL8WGANBUS, BLLL8WGMNBU, BLLL8WGMNBUP, BLLL8WGWNBH, BLLL8WGWNBHF, BLLL8WGWNBHFS, BLLL8WGWNBHS, BLLL8WGWNBU, BLLL8WGWNBUF, BLLL8WGWNBUFS, BLLL8WGWNBUS, BLLPL1AGMNBU, BLLPL1AGWNBU, BLLPL6CDANBU, BLLPL6CDMNBH, BLLPL6CDMNBU, BLLPL6CFMNBH, BLLPL6CFMNBHF, BLLPL6CFMNBHFS, BLLPL6CFMNBHS, BLLPL6CFMNBU, BLLPL6CFMNBUF, BLLPL6CFMNBUFS, BLLPL6CFMNBUS, BLLPL6CGANBH, BLLPL6CGANBHF, BLLPL6CGANBHFS, BLLPL6CGANBHS, BLLPL6CGANBU, BLLPL6CGANBUF, BLLPL6CGANBUFS, BLLPL6CGANBUS, BLLPL6CGMNBH, BLLPL6CGMNBHF, BLLPL6CGMNBHFS, BLLPL6CGMNBHS, BLLPL6CGMNBU, BLLPL6CGMNBUF, BLLPL6CGMNBUFS, BLLPL6CGMNBUS, BLLPL6CGWNBH, BLLPL6CGWNBHF, BLLPL6CGWNBHFS, BLLPL6CGWNBHS, BLLPL6CGWNBU, BLLPL6CGWNBUF, BLLPL6CGWNBUFS, BLLPL6CGWNBUS, BLLPL6WGANBH, BLLPL6WGANBHF, BLLPL6WGANBHFS, BLLPL6WGANBHS, BLLPL6WGANBU, BLLPL6WGANBUF, BLLPL6WGANBUFS, BLLPL6WGANBUS, BLLPL6WGWNBH, BLLPL6WGWNBHF, BLLPL6WGWNBHFS, BLLPL6WGWNBHS, BLLPL6WGWNBU, BLLPL6WGWNBUF, BLLPL6WGWNBUFS, BLLPL6WGWNBUS, BLLPL7AGANBU, BLLPL7AGMNBU, BLLPL7CDMNBH, BLLPL7CDMNBU, BLLPL7CDWNBU, BLLPL7CFMNBH, BLLPL7CFMNBHF, BLLPL7CFMNBHFS, BLLPL7CFMNBHS, BLLPL7CFMNBU, BLLPL7CFMNBUF, BLLPL7CFMNBUFS, BLLPL7CFMNBUS, BLLPL7CGANBH, BLLPL7CGANBHF, BLLPL7CGANBHFS, BLLPL7CGANBHS, BLLPL7CGANBU, BLLPL7CGANBUF, BLLPL7CGANBUFS, BLLPL7CGANBUS, BLLPL7CGMNBH, BLLPL7CGMNBHF, BLLPL7CGMNBHFS, BLLPL7CGMNBHS, BLLPL7CGMNBU, BLLPL7CGMNBUF, BLLPL7CGMNBUFS, BLLPL7CGMNBUS, BLLPL7CGWNBH, BLLPL7CGWNBHF, BLLPL7CGWNBHFS, BLLPL7CGWNBHS, BLLPL7CGWNBU, BLLPL7CGWNBUF, BLLPL7CGWNBUFS, BLLPL7CGWNBUS, BLLPL7NGMNBU, BLLPL7NGWNBU, BLLPL7SFANBU, BLLPL7WFMNBU, BLLPL7WGANBH, BLLPL7WGANBHF, BLLPL7WGANBHFS, BLLPL7WGANBHS, BLLPL7WGANBU, BLLPL7WGANBUF, BLLPL7WGANBUFS, BLLPL7WGANBUS, BLLPL7WGMNBU, BLLPL7WGWNBH, BLLPL7WGWNBHF, BLLPL7WGWNBHFS, BLLPL7WGWNBHS, BLLPL7WGWNBU, BLLPL7WGWNBUF, BLLPL7WGWNBUFS, BLLPL7WGWNBUS, BLLPL8AGMNBU, BLLPL8CDMNBU, BLLPL8CDWNBH, BLLPL8CDWNBU, BLLPL8CFMNBH, BLLPL8CFMNBHF, BLLPL8CFMNBHFS, BLLPL8CFMNBHS, BLLPL8CFMNBU, BLLPL8CFMNBUF, BLLPL8CFMNBUFS, BLLPL8CFMNBUS, BLLPL8CGANBH, BLLPL8CGANBHF, BLLPL8CGANBHFS, BLLPL8CGANBHS, BLLPL8CGANBU, BLLPL8CGANBUF, BLLPL8CGANBUFS, BLLPL8CGANBUS, BLLPL8CGMNBH, BLLPL8CGMNBHF, BLLPL8CGMNBHFS, BLLPL8CGMNBHS, BLLPL8CGMNBU, BLLPL8CGMNBUF, BLLPL8CGMNBUFS, BLLPL8CGMNBUS, BLLPL8CGWNBH, BLLPL8CGWNBHF, BLLPL8CGWNBHFS, BLLPL8CGWNBHS, BLLPL8CGWNBU, BLLPL8CGWNBUF, BLLPL8CGWNBUFS, BLLPL8CGWNBUS, BLLPL8NFMNBU, BLLPL8NGANBU, BLLPL8NGMNBU, BLLPL8NGWNBU, BLLPL8WGANBH, BLLPL8WGANBHF, BLLPL8WGANBHFS, BLLPL8WGANBHS, BLLPL8WGANBU, BLLPL8WGANBUF, BLLPL8WGANBUFS, BLLPL8WGANBUS, BLLPL8WGMNBU, BLLPL8WGWNBH, BLLPL8WGWNBHF, BLLPL8WGWNBHFS, BLLPL8WGWNBHS, BLLPL8WGWNBU, BLLPL8WGWNBUF, BLLPL8WGWNBUFS, BLLPL8WGWNBUS, BMQCPH, LEDC5, LEDDR9, LGGUARD, LHGUARD

How do I request a quote for the Appleton Baymaster LED Luminaires?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
