Appleton AELB Series 65 kAIC Bolted Motor Starters and Contactors

What are Appleton AELB Series 65 kAIC Bolted Motor Starters and Contactors?

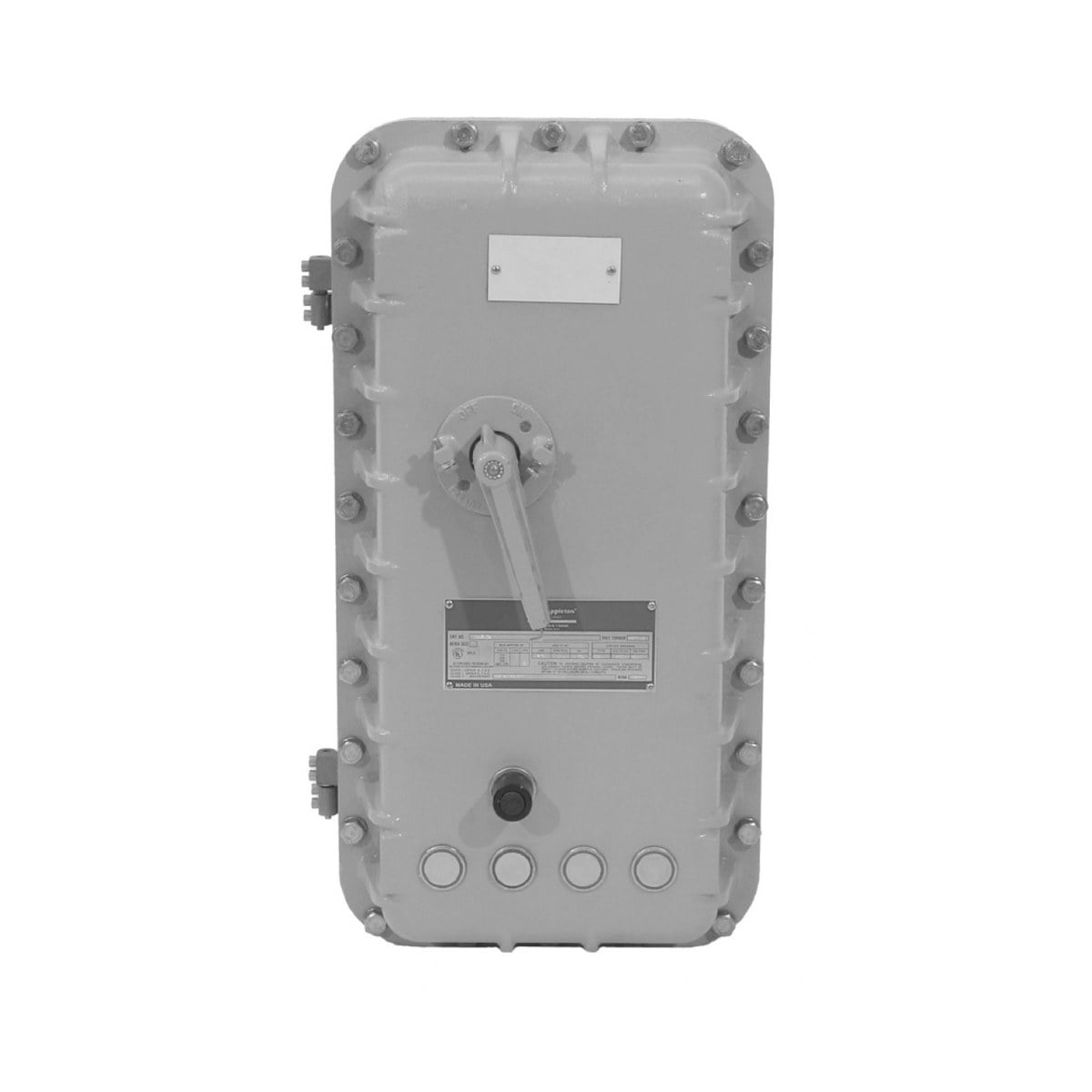

Appleton AELB Series 65 kAIC Bolted Motor Starters and Contactors provide disconnecting means, undervoltage protection, circuit protection, and motor running protection. These combination and non-combination motor starters are ideal for use in indoor, outdoor, wet, or corrosive environments where hazardous materials are handled or stored. The AELB explosionproof, dust-ignitionproof, waterproof motor starters and contactors are designed with a precision machined flame path between the box and the cover. An O-ring gasket is provided to seal out moisture, dust, oil, dirt etc. They accept Cutler-Hammer or Square D motor starters/circuit breakers, and the components are mounted on a galvanized steel removable pan. They feature an external stainless steel breaker operating handle, bolt on slotted mounting feet, stainless steel, captive Quad-Lead cover bolts, four-point control terminal block, and standard outlets at the top and the bottom.

What are the key features of the Appleton AELB Series 65 kAIC Bolted Motor Starters and Contactors?

• AELB is UL Classified for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit. Supplied with ground lug package.

What are the specifications of the Appleton AELB Series 65 kAIC Bolted Motor Starters and Contactors?

Environment: Hazardous (Classified) Locations
Product type and listings: Manual, Combination, Non-Combination, Motor Starter
Enclosure material: Copperfree Aluminum
Cover material: Copperfree Aluminum
Operator type: Selector Switch, Push Button, Pilot Light

Which Appleton catalog numbers belong to the AELB Series 65 kAIC Bolted Motor Starters and Contactors?

Appleton lists 4 catalog numbers in this series:

AELB, AELBB13410C, AELBB13410CBRDN, AELBBN13670C

How do I request a quote for the Appleton AELB Series 65 kAIC Bolted Motor Starters and Contactors?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
