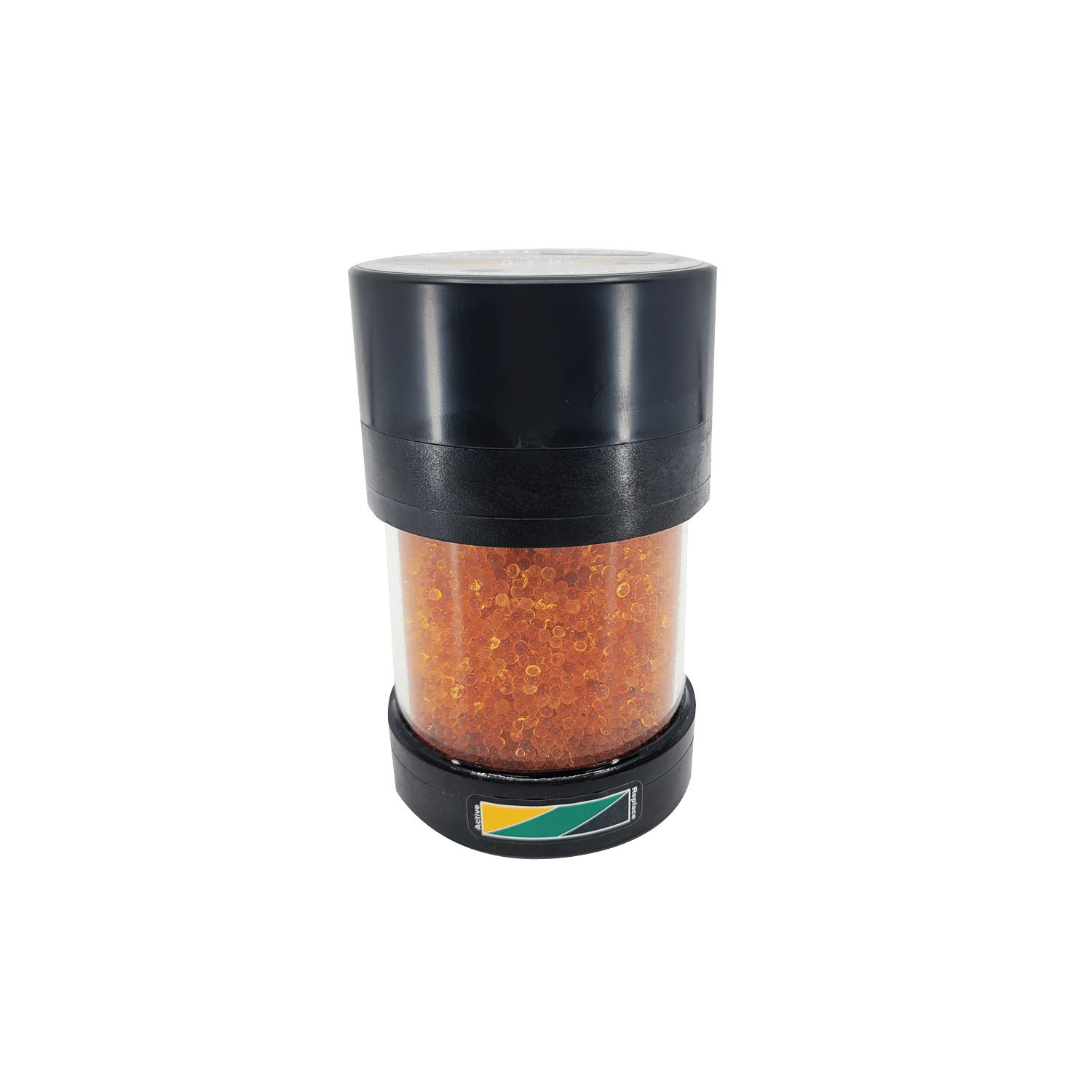

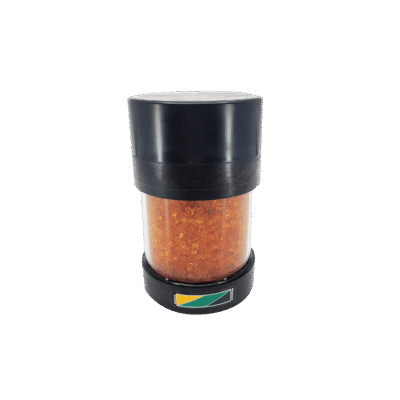

Air Sentry X-50 Desiccant Breather
Price range: $154.54 through $618.16
Bulk Orders
X-Series Breathers are the perfect solution for high humidity and high dust environments. To extend the desiccant’s life, the X-Series incorporates two check valves and a reusable top cap. The check valves provide a closed system until airflow is required, extending the service life of the desiccant. Specifically, the intake check valve allows airflow into the breather only when differential pressure between the atmosphere and fluid reservoir exceeds a 0.3-psi threshold, while the exhaust check valve permits air to exit the reservoir when the differential pressure exceeds a 0.3-psi threshold. When the gold silica gel cartridge turns dark green, simply install a new replacement cartridge to keep things moving.
All X-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.
Operating Temperature: -20°F (-29°C) to +200°F (+93°C)
High Humidity / High Dust Applications – Paper Mills • Wash-Down Areas • Steam-Cleaning Rooms • Mine Quarries
Specifications
| Base Material | 100% Silica Gel |
Model Specifications
| Model | X-50 |
| Check Valve PSI In/Out | 0.3 / 0.3 |
| Height inches (cm) | 5 (12.7) |
| Diameter inches (cm) | 3 (7.6) |
| Mounting Connection | ½” FNPT |
| Silica Gel lbs (kg) | 0.6 (0.27) |
| Maximum Adsorption Capacity fl. ounces (mL) | 3.68 (109) |
| Maximum Air Flow cfm | 10 |
| Maximum Reservoir Fluid Flow gpm | 75 |
| Type of Medium | 100% Silica Gel |
| Uses Replacement Cartridge | L-50 |
X Series Specification Chart
X and Guardian-Series Advanced Technology Brochure
Good, Better, Best Breather Brochure
Air Sentry Saves Manufacturer $340K Case Study
X-100 Pulp & Paper Case Study
How do you size a desiccant breather for a gearbox or hydraulic reservoir?
Size it by air flow. Air Sentry says all of its breathers handle gearbox thermal expansion and gravity filling or draining, but when a pump fills or drains the gearbox, the breather’s air flow capacity must match the pump. For a hydraulic reservoir breather, size from the pump’s oil flow (gpm) converted to air flow (cfm).
Sizing rule: the X-50 is rated for 10 cfm of air flow and 75 gpm of reservoir fluid flow, so keep pump flow at or below 75 gpm. Above that, the X-501 to X-522 models are rated 20 cfm and 150 gpm.
| Property | Value | Source note |
|---|---|---|
| Maximum air flow | 10 cfm | X-Series spec table |
| Maximum reservoir fluid flow | 75 gpm | X-Series spec table |
| Height x diameter | 5 in (12.7 cm) x 3 in (7.6 cm) | X-Series spec table |
| Silica gel | 0.6 lb (0.27 kg) | X-Series spec table |
| Maximum adsorption capacity | 3.68 fl oz (109 mL) | X-Series spec table |
| Replacement cartridge | L-50 | X-Series spec table |
| Saturation point | Dark green at approximately 40% of the gel’s original weight | Air Sentry how-it-works guide |
Air Sentry X-50 vs X-100: which desiccant tank breather fits?
Both are rated 10 cfm and 75 gpm with a ½” FNPT connection, so the differences are size, silica gel capacity and cartridge. Air Sentry lists its X-100 Wash Down Cap as compatible with the X-100 model, useful in wash-down areas.
X-100, same spec table: 6.25 in (15.9 cm) tall, 3.25 in (8.3 cm) diameter, 0.8 lb (0.4 kg) silica gel, 4.91 fl oz (145 mL) adsorption capacity, L-143 cartridge.
When should you replace the X-50 desiccant breather cartridge?
Replace the L-50 cartridge when the silica gel has turned from gold to dark green; the X-Series top cap is reusable. Watch where the change starts: Air Sentry says gel turning dark green from the bottom rather than the top indicates excessive moisture inside the reservoir.
Why use a gearbox breather with check valves in humid or dusty plants?
Air Sentry describes most older-style air vents as providing minimal, if any, contamination control. X-Series check valves keep the system closed until airflow is required, extending desiccant life, and the silica gel bed filters out up to 95% of incoming water vapor, per the manufacturer.
Manufacturer case study: X-100 breathers (one size up) were installed on 500 gearboxes at a construction-materials manufacturer; Air Sentry reports gearbox failures reduced by 50% and lubricant changes cut from twice a year to once a year. Savings vary with lubricant, labor and downtime costs, the study notes.
