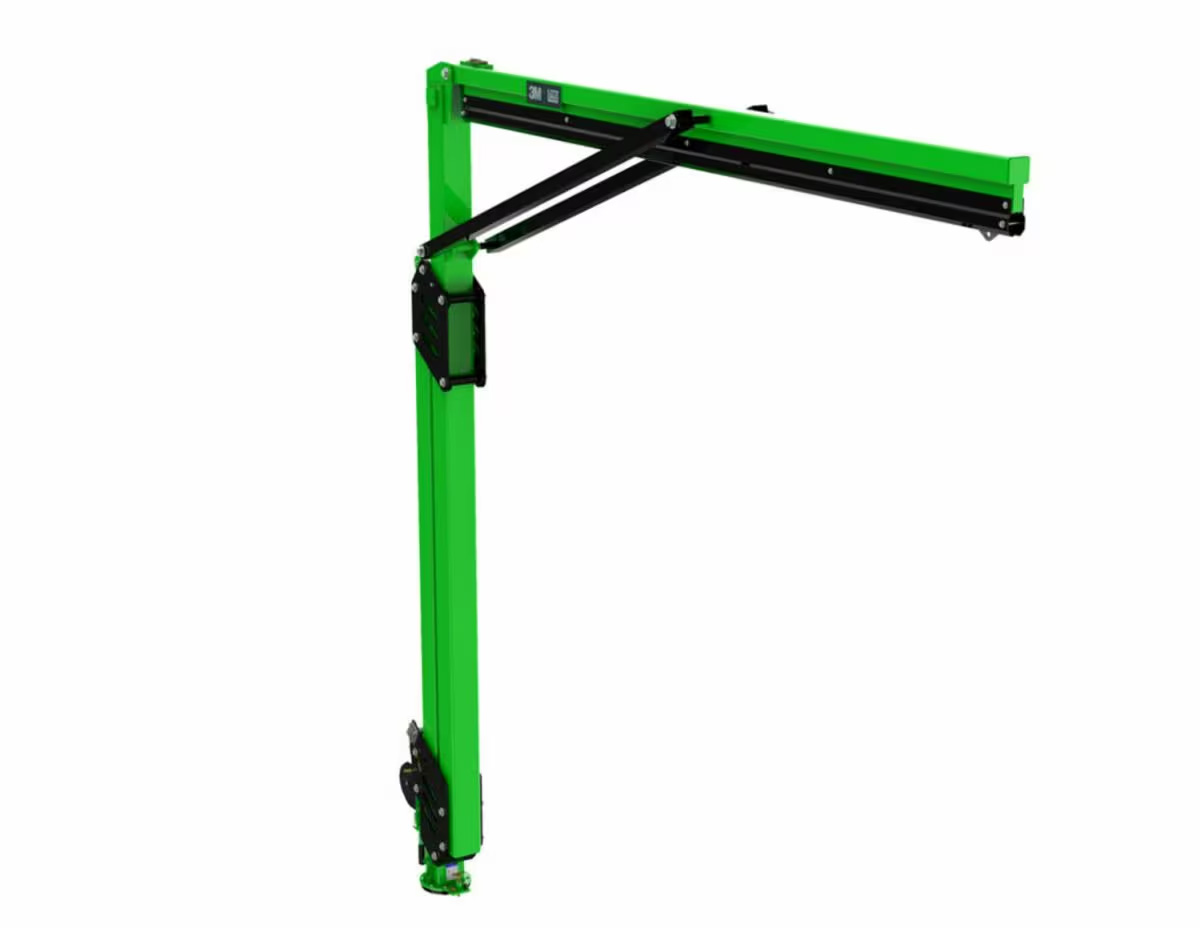

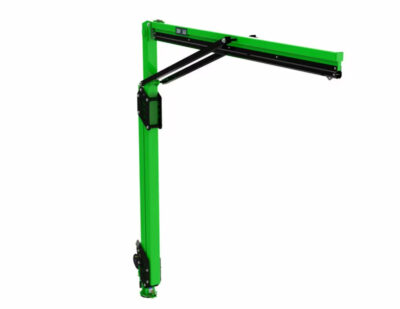

3M DBI-SALA FlexiGuard M200 Adjustable Height Mast
Bulk Orders
Details
Highlights
- Powder coated steel upright and gusset components
- Automatic mast lock helps prevents uncontrolled mast movement
- Permanent or portable mounted designs available
- Integrated level indicators (Counterweight Bases). Removable counterweight box (Counterweight Bases) with built in fork pockets and lifting ring attachment points (Lifting Kit sold separately). Open multi-directional base designed to accommodate a wide array of fork shapes and sizes
- Extended rail-length increases safe working area compared to our previous jib systems
- Aluminum extruded trolley rail
- Stainless steel / nylon construction
- 3M™ Safety-Walk™ Slip Resistant walking surface (counterweight Bases)
- Extended anchor height enhances capabilities in various applications compared to our previous jib systems
- Rotating mast up to 360 degrees with flip up rotation handle
- Power assisted height adjustment capability for adjustable models
- Additional system mobility with optional caster wheel kit
The 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a portable overhead anchorage system. The 3M™ DBI-SALA® FlexiGuard™ M200 mast is built with powder coated steel. The height adjustable design allows for maximum transportability and adaptation to different work environments. Adjustment of the system can be accomplished manually with integrated winch for adjustable models, or by relocating channel fasteners on semi fixed models.
The 3M™ DBI SALA® Flexiguard™ Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combination of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.
Typical properties
| Connected Safety ID Equipped | No |
| Install Type | Temporary/Portable |
| Manufacturing Origin | USA |
| Maximum Height (Imperial) | 15 ft, 20 ft, 25 ft, 30 ft |
| Maximum Height (Metric) | 4.6 m, 6.1 m, 7.6 m, 9.1 m |
| Maximum Number of Users | One, Two |
| Minimum Height (Imperial) | 11 ft, 15 ft, 16 ft, 20 ft |
| Minimum Height (Metric) | 3.4 m, 4.6 m, 4.9 m, 6.1 m |
| Net Weight (Imperial) | 945 lb, 1011 lb, 1057 lb, 1123 lb, 1169 lb, 1235 lb, 1281 lb, 1343 lb |
| Net Weight (Metric) | 428.64 kg, 458.58 kg, 479.45 kg, 509.38 kg, 530.25 kg, 560.19 kg, 581.05 kg, 609.17 kg |
| Offset Length (Imperial) | 12 ft, 15 ft |
| Offset Length (Metric) | 3.65 m, 4.57 m |
| Product Series | FlexiGuard™, M200 |
| Product Type | Adjustable Height Jib Mast |
| Recommended Industry | Construction, General Industrial, Mining, Transportation |
| System Type | Masts – Adjustable Height |
| Weight (Metric) | 428.64 kg, 458.58 kg, 479.45 kg, 509.38 kg, 544.31 kg, 581.05 kg, 589.67 kg, 609.17 kg |
| Weight Capacity (Imperial) | 310 lb. |
| Weight Capacity (Metric) | 141 kg |
| Overall Height (Metric) | 0 mm, 640 mm |
| Overall Length (Metric) | 0 mm, 6150 mm |
| Overall Width (Metric) | 0 mm, 122 mm |
