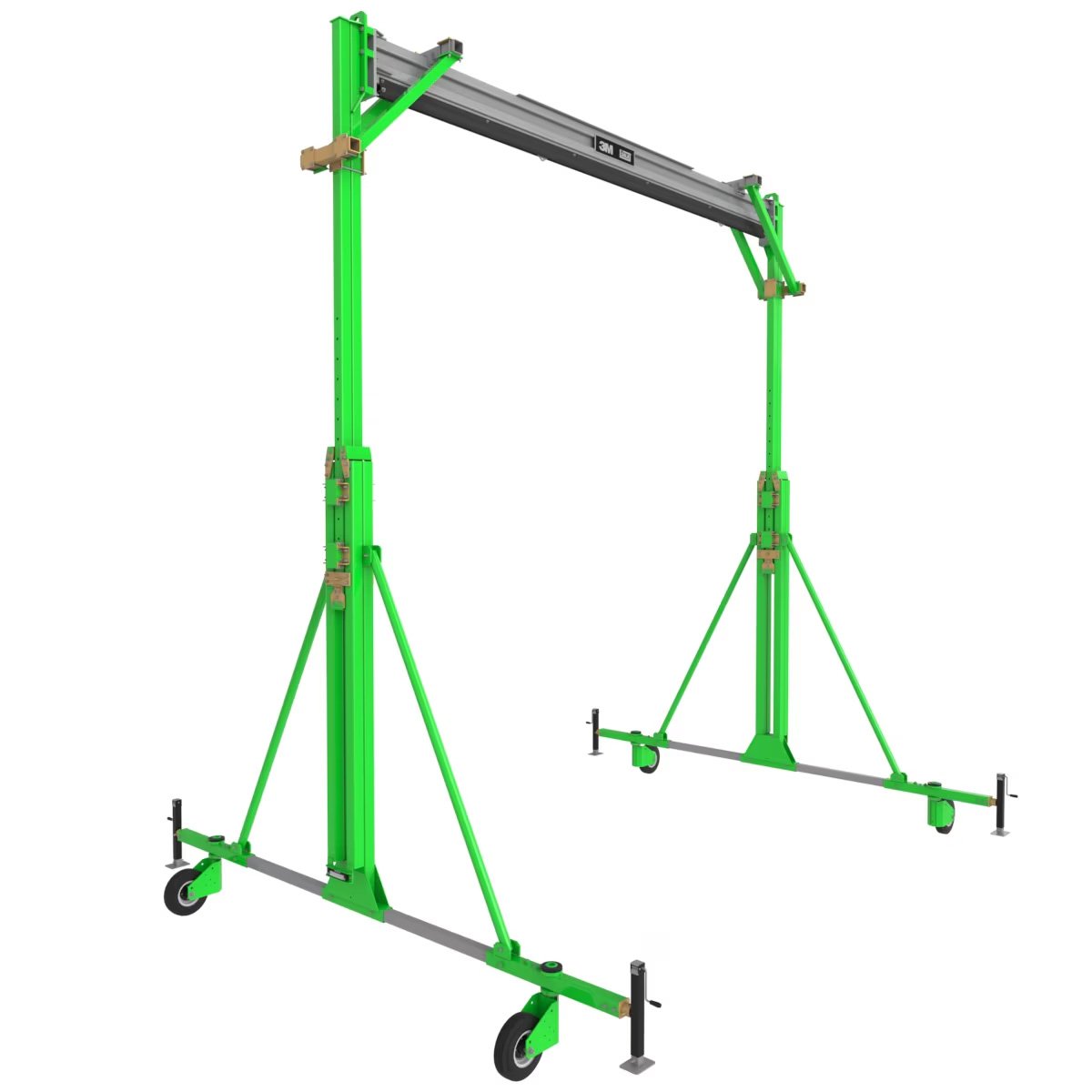

8517780 – 3M DBI-SALA Flexiguard A-Frame Rail Adjustable Height Anchor System, 2 User, Yellow, 16 – 22.5 ft Height, 20 ft Width
Bulk Orders
Details
Highlights
- Multiple height and width configurations available
- System includes steel leveling jacks
- Aluminum and steel construction
- Conforms to the requirements of OSHA 1926.502 and OSHA 1910.66
- Extruded aluminum rail requires minimal maintenance and includes two trolleys
- Suitable for numerous applications within the transportation, construction, utilities, and mining industries
The Adjustable Height 3M™ DBI-SALA® FlexiGuard™ A-Frame System helps protect workers from falls while providing a large working space. The connecting rails are made from extruded aluminum and is rated for use by up to two workers at once. This mobile safety system allows workers to move it from one job to the next.
Each Adjustable Height 3M™ DBI-SALA® FlexiGuard™ A-Frame System includes two rails made with extruded aluminum. The two-rail design allows for trolleys to bypass and is rated to support the weight of two workers in a fall arrest situation.
The Adjustable Height 3M™ DBI-SALA® FlexiGuard™ A-Frame System to be adaptive to the size of your space and project. Our Adjustable Height system can be easily modified with the assistance of a crane, forklift, or other powered systems.
The DBI-SALA® FlexiGuard™ Solutions are designed to be versatile, lightweight, and exceptionally mobile to ensure workers’ safety in a variety of challenging conditions. Our pre-engineered systems provide secure anchor points and spacious, safe working areas to help personnel focus on the task at hand while working at heights.
Typical properties
| Brands | DBI-SALA® |
| Case Quantity | 1 |
| Connected Safety ID Equipped | Yes |
| Install Type | Temporary/Portable |
| Maximum Height (Imperial) | 24.38 ft |
| Maximum Height (Metric) | 7.43 m |
| Maximum Number of Users | Two |
| Product Color | Silver, Yellow |
| Product Series | FlexiGuard™ |
| Product Type | A-frame System (Adjustable Height) |
| Recommended Industry | Construction, Mining, Transportation, Utilities |
| Specifications Met | ANSI Z359.6, OSHA 1926.502 |
| Weight (Imperial) | 3180 lb. |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity (Imperial) | 420 lb. |
| Weight Capacity (Metric) | 190 kg |
| Overall Width (Imperial) | 24.06 ft |
| Overall Width (Metric) | 7.33 m |
