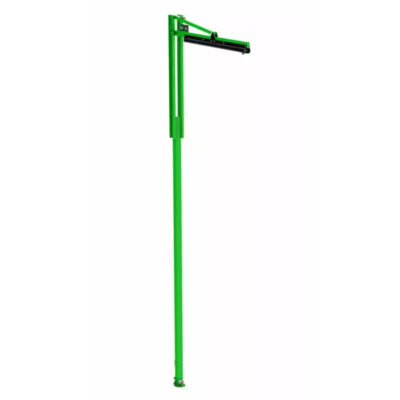

3M DBI-SALA FlexiGuard M100 Semi-Fixed Height Mast
Bulk Orders
Details
Highlights
- Powder coated steel upright and gusset components
- Extended rail-length increases safe working area compared to our previous jib systems
- Extended anchor height enhances capabilities in various applications compared to our previous jib systems
- Automatic mast lock helps prevent uncontrolled mast movement
- Aluminum extruded trolley rail with stainless steel / nylon trolley construction
- Rotating mast up to 360 degrees with Flip up rotation handle
- Permanent and portable mounted designs available
- Power assisted height adjustment capability for adjustable models
- Leveling jacks standard on the M100 with integrated fork pockets for transporting and positioning using industrial forklifts
- 3M™ Safety-Walk™ Slip Resistant walking surface (counterweight Bases)
- Additional system mobility with optional caster wheel kit
The 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a unique overhead anchorage system. The 3M™ DBI-SALA® FlexiGuard™ M100 Semi-Fixed Height Mast is built with powder coated steel. The semi-fixed height design allows the jib height to be fine tuned in small increments, providing maximum flexibility during installation.
The 3M™ DBI SALA® Flexiguard™ Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combinantion of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.
Typical properties
| Connected Safety ID Equipped | No |
| Install Type | Temporary/Portable |
| Manufacturing Origin | USA |
| Maximum Height (Imperial) | 20 ft, 25 ft, 30 ft |
| Maximum Height (Metric) | 6 m, 8 m, 9 m |
| Maximum Number of Users | One |
| Minimum Height (Imperial) | 15 ft, 20 ft, 25 ft |
| Minimum Height (Metric) | 5 m, 6 m, 8 m |
| Net Weight (Imperial) | 504 lb, 582 lb, 660 lb |
| Net Weight (Metric) | 228.61 kg, 263.99 kg, 299.37 kg |
| Offset Length (Imperial) | 7.5 ft |
| Offset Length (Metric) | 2.28 m |
| Product Series | FlexiGuard™, M100 |
| Product Type | Semi-Fixed Height Jib Mast |
| Recommended Industry | Utilities |
| System Type | Masts – Semi-Fixed Height |
| Weight (Metric) | 228.61 kg, 272.16 kg, 299.37 kg |
| Weight Capacity (Imperial) | 310 lb. |
| Weight Capacity (Metric) | 141 kg |
| Overall Height (Metric) | 0 mm, 1000 mm |
| Overall Length (Metric) | 0 mm, 6200 mm |
| Overall Width (Metric) | 0 mm, 144 mm |
