8530288 – 3M DBI-SALA Flexiguard Box-Frame Rail Adjustable Height Anchor System, 2 User, 12 – 18 ft High, 12 ft Wide
Bulk Orders
Details
Highlights
- Secure fall protection with intuitive pin-height selection system. The system can be adjusted using an overhead crane, forklift or other powered system
- Solid rubber wheels available
- Accessories available to suit worksite needs including optional tow bar
- Recommended for numerous applications within the transportation, construction, utilities, and mining industries
- Provides an overhead sliding anchor point for one, two or more personnel, maximum one person per trolley
- Aluminum and steel construction
- Conforms to OSHA 1926.502 and OSHA 1910.66 requirements
- Fixed and Adjustable height systems
- Requires clearance over equipment being accessed
- Overhead anchoring can improve at-height work safety; an effective fall arrest system

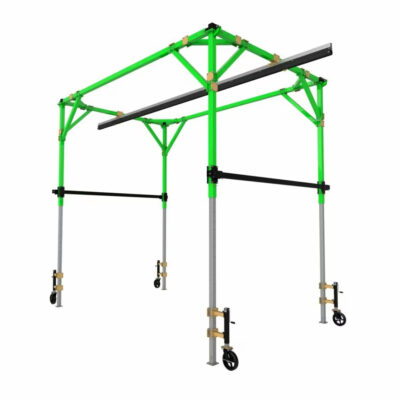

The 3M™ DBI-SALA® FlexiGuard™ Box Frame System provides a means of securing a fall arrest rigid rail in areas with limited or inadequate overhead structure. These frames are built to accommodate a specific area or piece of equipment. These units can be designed as permanent or portable frames, allowing for relocation.
The FlexiGuard™ Box Frame System provides a convenient means of securing a fall arrest rigid rail in areas with limited space or inadequate overhead structure. These frames are built to accommodate a specific area or piece of equipment. These units can be designed as permanent or portable frames, allowing for ease of relocation. These systems are ANSI and OSHA compliant. DBI SALA® has created a proven process for developing unique solutions. Whether it’s an existing or modified product, or an entirely new design, FlexiGuard™ always meets the requirements of your specific application. Each custom solution is driven by our customers’ needs and is dependent on the industry, environment and specific design constraints, including government standards. We also have numerous pre engineered systems that may be a perfect solution to your fall protection challenge. All of our systems are extremely durable and built to last with world class quality, materials and workmanship. They are unique solutions to unique challenges, and fall protection you can trust.
Typical properties
| Brands | DBI-SALA® |
| Case Quantity | 1 |
| Connected Safety ID Equipped | Yes |
| Install Type | Temporary/Portable |
| Maximum Height (Imperial) | 19.27 ft |
| Maximum Height (Metric) | 5.87 m |
| Maximum Number of Users | Two |
| Product Color | Silver, Yellow |
| Product Series | FlexiGuard™ |
| Product Type | Adjustable Height Box Frame System |
| Recommended Industry | Construction, Mining, Transportation, Utilities |
| Specifications Met | ANSI Z359.6, OSHA 1926.502 |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity (Imperial) | 420 lb. |
| Weight Capacity (Metric) | 190 kg |
| Overall Width (Imperial) | 23.28 ft |
| Overall Width (Metric) | 7.06 m |
