3M DBI-SALA FlexiGuard Counterweighted System
Bulk Orders
Details
Highlights
- Counterweighted overhead rail fall protection system
- Aluminum and steel construction
- Complete hardware provided
- Portable with use of a forklift
- Includes four steel leveling jacks; built-in slope indicators available as option
- Recommended for a variety of applications within the transportation, construction, utilities, and mining industries
- Available in multiple sizes, both fixed and adjustable heights
- One part of your fall protection system; intended for use with other personal protective equipment (PPE) including (but not limited to) harnesses and self-retracting lifelines
- Specialized installation and training available
- Heavy duty leveling jacks and built-in slope indicators
- Custom paint finishes available
- Accessories available to suit worksite needs

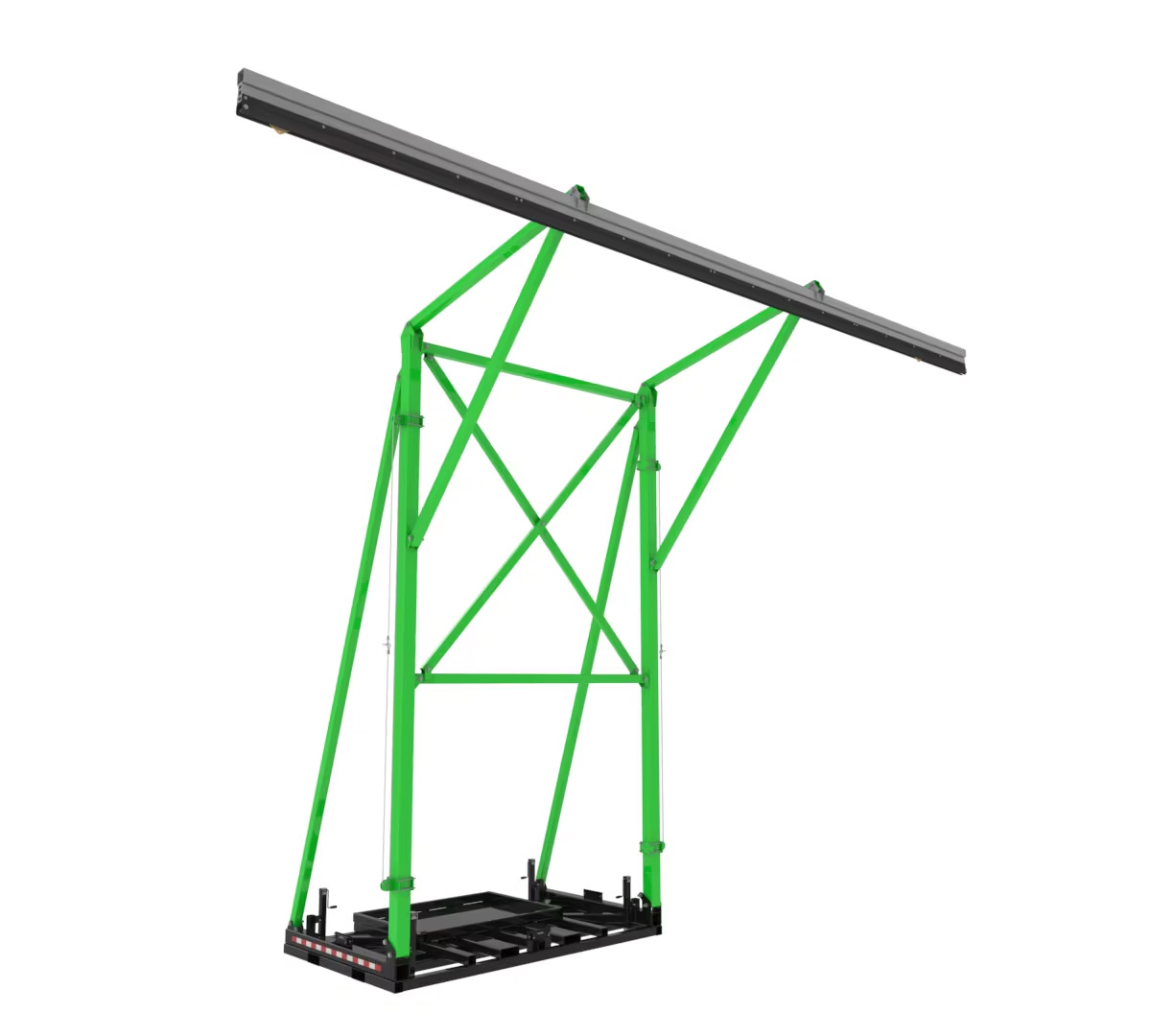

3M™ DBI-SALA® FlexiGuard™ Counterweighted System with 22 ft. (6.7m) anchor height and either 32 ft (9.8) or 42 ft. (12.8m) rail, concrete weights included.
The FlexiGuard™ Counterweighted System is designed as a portable solution to provide an overhead anchor point for up to two users while working at heights. These systems are designed to be counterbalanced by concrete or other means, allowing for close positioning to the work surface without obstructing the equipment being accessed. These systems conform to ANSI and OSHA requirements. Each solution is driven by our customers’ needs and is dependent on the industry, environment, and specific design constraints, including government standards. 3M’s pre-engineered systems may be an ideal solution to your fall protection challenge. DBI-SALA® FlexiGuard™ Solutions are designed to be versatile and mobile safety systems to help protect workers from the perils of at-height work in a variety of conditions. All the 3M™ DBI-SALA® FlexiGuard™ safety system can be moved from job to job using forklift pockets on the base.
Typical properties
Case Quantity | 1,1 EA/Case |
Connected Safety ID Equipped | Yes |
Dimensions | (12.00×8.00×9.30)in |
Install Type | Temporary/Portable |
Maximum Number of Users | Two |
Net Weight (Imperial) | 3850 lb |
Product Color | Silver, Yellow |
Product Series | FlexiGuard™ |
Product Type | Counterweighted System |
Recommended Industry | Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities |
Specifications Met | ANSI Z359.6, OSHA 1926.502 |
Weight (Imperial) | 3850 lb. |
Weight Capacity | 310 lbs. (141 kg) |
Weight Capacity (Imperial) | 310 lb. |
Weight Capacity (Metric) | 141 kg |
