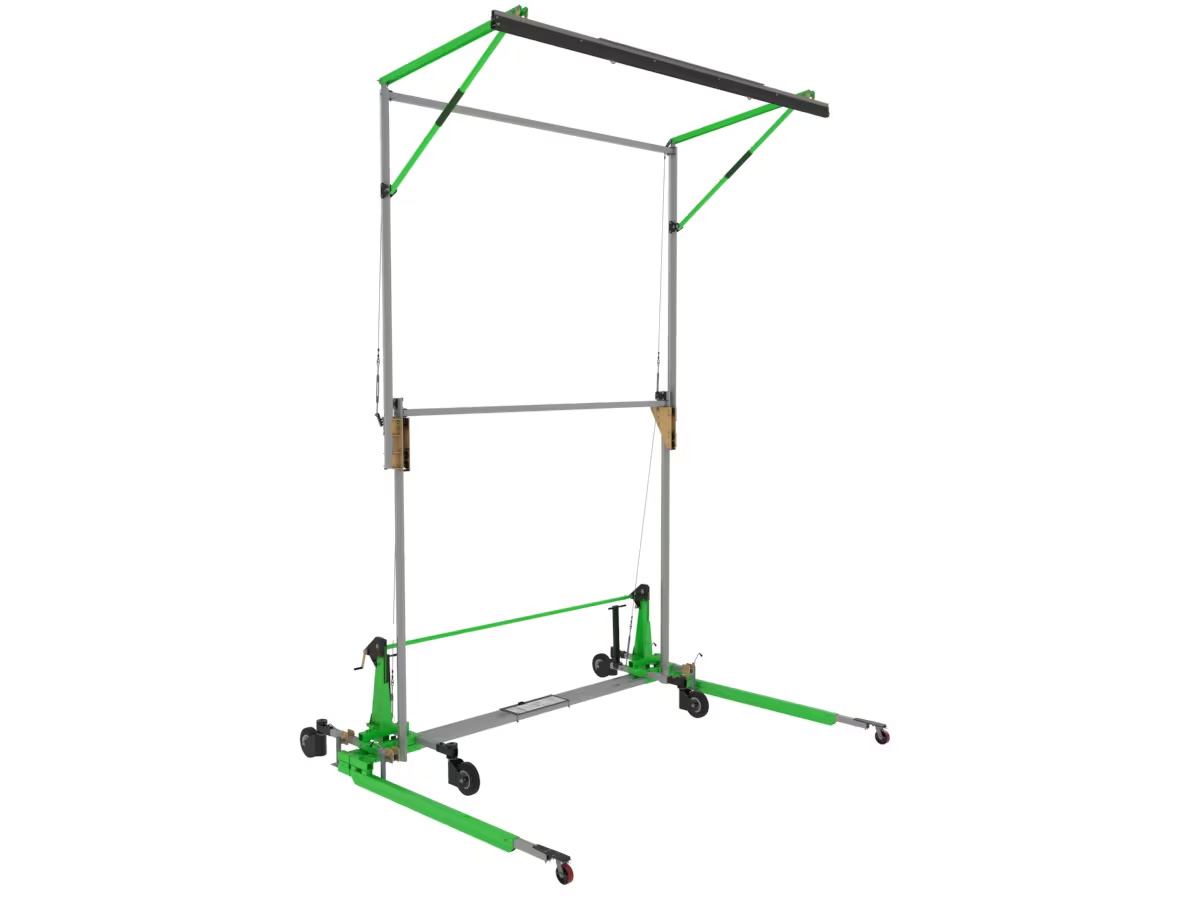

3M DBI-SALA FlexiGuard C-Frame System, Adjustable Height
Bulk Orders
Details
Highlights
- Available in multiple adjustable size configurations
- Extruded aluminum rail minimizes maintenance and includes two trolleys
- One part of your fall protection system; intended for use with other personal protective equipment (PPE) including (but not limited to) harnesses and self retracting lifelines
- Accessories available to suit worksite needs including optional non-swiveling pneumatic wheels or tow bar kit
- Outrigger support legs require some clearance under equipment being accessed
- Conforms to OSHA 1926.502 and OSHA 1910.66 requirements
- System includes four 16 in foam-filled rubber wheels
- Aluminum and steel construction
- Suitable for numerous applications within the aviation, transportation, construction, and mining industries
- System includes steel leveling jacks, with four 16 in. (40.6 cm) pneumatic wheels in the back and low profile 8 in. (20.3 cm) urethane caster wheels in the front
The Adjustable Height 3M™ DBI-SALA® FlexiGuard™ C-Frame System helps protect workers from falls while providing a large working space. The rigid rail is made from durable extruded aluminum and is rated for use by up to two workers at once. Sitting atop pneumatic wheels, This mobile safety system can be easily moved from one job to the next by manual means or with the assistance of a tow bar and service vehicle.
Reliable fall protection for two
Each Adjustable Height 3M™ DBI-SALA® FlexiGuard™ C-Frame System includes one rail made with durable, low maintenance-free extruded aluminum. The single rail design is rated to support the weight of two workers in a fall arrest situation.
Fitting in the door? No problem
We designed our Adjustable Height 3M™ DBI-SALA® FlexiGuard™ C-Frame System to be adaptive to the size of your space and project. The adjustable height system can be easily modified by cranking the integrated winch. The height of the system is automatically locked once the desired height is achieved.
Secure anchoring wherever the job takes you
The 3M™ DBI-SALA® FlexiGuard™ Solutions are designed to be versatile, lightweight, and exceptionally mobile to ensure workers’ safety in a variety of challenging conditions. Our pre-engineered systems provide secure anchor points and spacious, safe working areas to help personnel focus on the task at hand while working at heights.
Typical properties
| Case Quantity | 1 |
| Connected Safety ID Equipped | Yes |
| Install Type | Temporary/Portable |
| Maximum Height (Imperial) | 19.58 ft, 29.63 ft, 39.63 ft |
| Maximum Height (Metric) | 5.97 m, 9.03 m, 12.08 m |
| Maximum Number of Users | Two |
| Net Weight (Imperial) | 1650 lb, 2300 lb, 2450 lb |
| Net Weight (Metric) | 748.4 kg, 1043.3 kg, 1111.3 kg |
| Product Color | Silver, Yellow |
| Product Series | FlexiGuard™ |
| Product Type | C-Frame System – Adjustable Height |
| Recommended Industry | Construction, Mining, Transportation |
| Specifications Met | OSHA 1926.502 |
| Weight (Imperial) | 1650 lb., 1875 lb., 2050 lb., 2250 lb., 2300 lb., 2450 lb. |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity (Imperial) | 420 lb. |
| Weight Capacity (Metric) | 190 kg |
| Overall Width (Imperial) | 15.52 ft,10.57 ft,20.52 ft |
| Overall Width (Metric) | 6.25 m,4.73 m,3.22 m |
