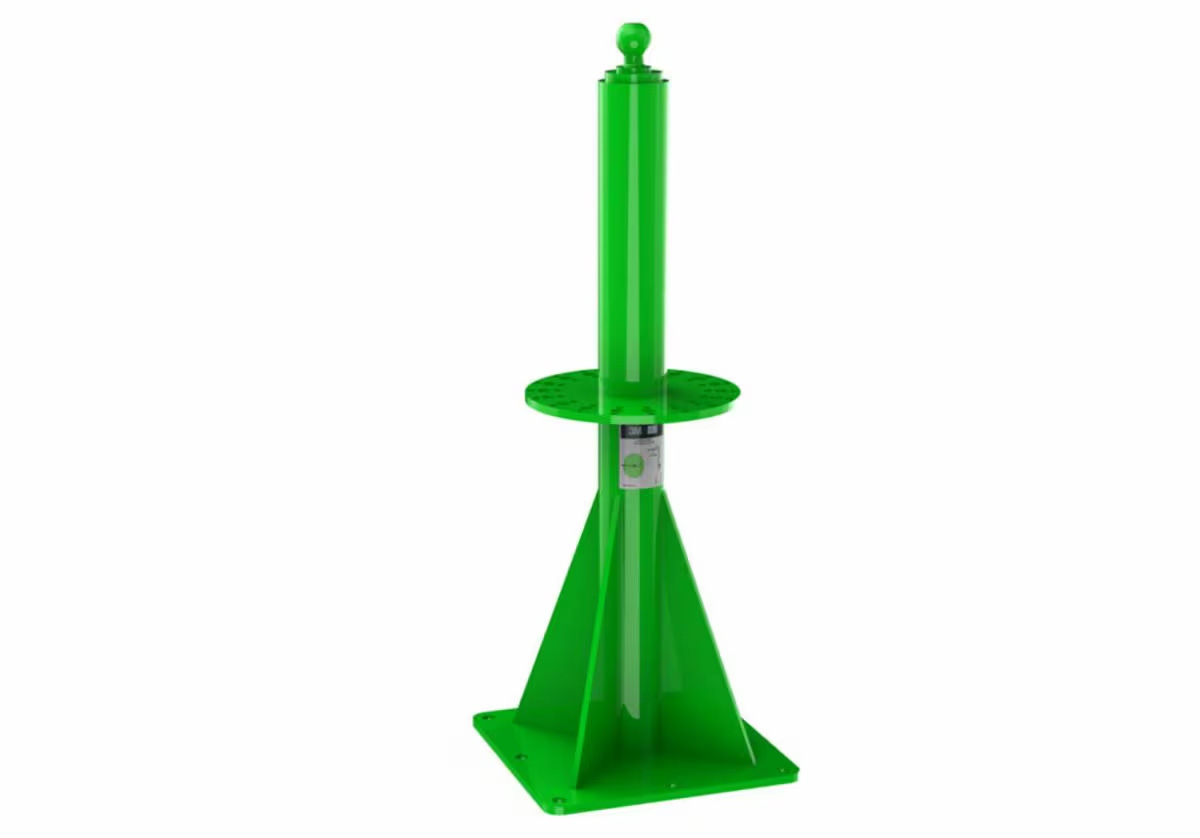

3M DBI-SALA FlexiGuard M100 Permanent Mount Base
Bulk Orders
Details
Highlights
- Powder coated steel upright and gusset components
- Extended rail-length increases safe working area compared to our previous jib systems
- Extended anchor height enhances capabilities in various applications compared to our previous jib systems
- Automatic mast lock helps prevent uncontrolled mast movement
- Aluminum extruded trolley rail with stainless steel / nylon trolley construction
- Rotating mast up to 360 degrees with Flip up rotation handle
- Permanent and portable mounted designs available
- Power assisted height adjustment capability for adjustable models
- Leveling jacks standard on the M100 with integrated fork pockets for transporting and positioning using industrial forklifts
- 3M™ Safety-Walk™ Slip Resistant walking surface (counterweight Bases)
Additional system mobility with optional caster wheel kit
The 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a unique overhead anchorage system. The 3M™ DBI-SALA® FlexiGuard™ M100 Permanent Mount Bases is designed with a powder coated steel.
The 3M™ DBI SALA® Flexiguard™ Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combinantion of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.
Typical properties
Connected Safety ID Equipped | No |
Install Type | Permanent |
Manufacturing Origin | USA |
Maximum Height (Imperial) | 3.6 ft, 5.6 ft |
Maximum Height (Metric) | 1.1 m, 1.7 m |
Maximum Number of Users | One |
Minimum Height (Imperial) | 3.6 ft, 5.6 ft |
Minimum Height (Metric) | 1.1 m, 1.7 m |
Mounting Type | Embedded, Surface |
Net Weight (Imperial) | 203 lb, 315 lb |
Net Weight (Metric) | 92.08 kg, 142.88 kg |
Product Series | FlexiGuard™, M100 |
Product Type | Permanent Jib Base |
Recommended Industry | Transportation |
System Type | Permanent Floor Mount Bases, Permanent Flush Mount Bases |
Weight (Metric) | 0 kg, 124.74 kg |
Weight Capacity (Imperial) | 310 lb. |
Weight Capacity (Metric) | 141 kg |
Overall Height (Metric) | 0 mm, 430 mm |
Overall Length (Metric) | 170 mm, 1320 mm |
Overall Width (Metric) | 38 mm, 76 mm |
