Description
Additional information

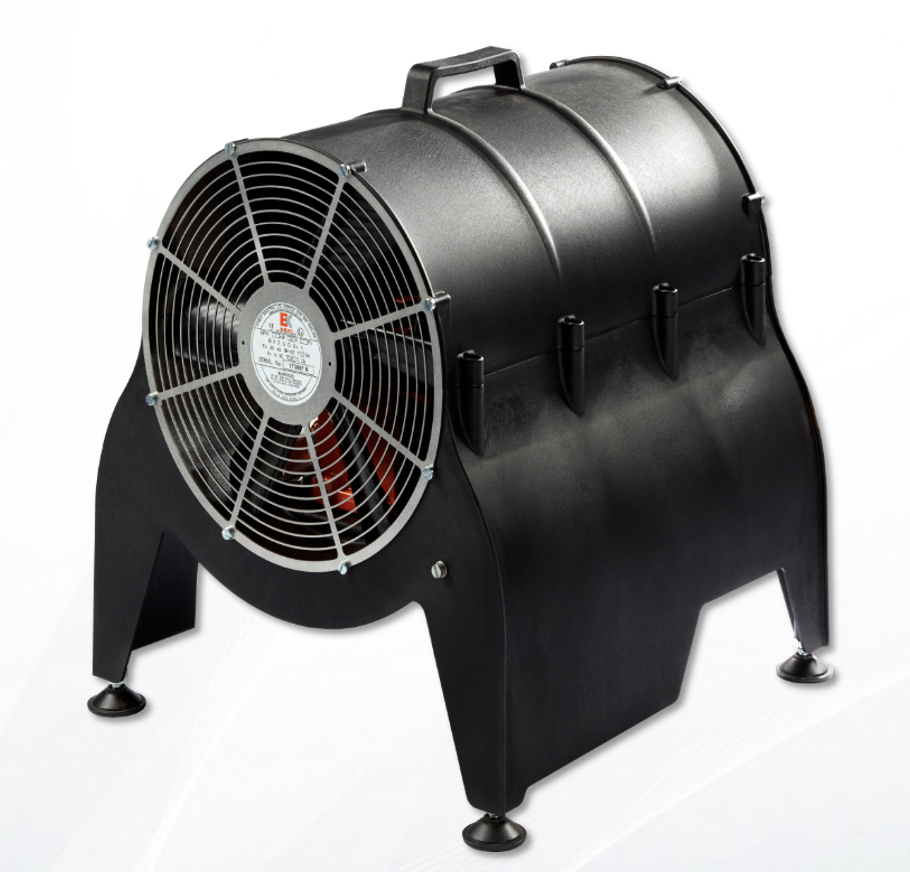

EXHEAT Industrial’s MFH ‘The Bulldog’® Portable Fan Heater is the world’s first truly portable hazardous area fan assisted heater. It combines efficient design with simple functionality to provide a portable heating solution for use in Zone 1 or 2 (IIA, IIB and H2) hazardous environments.

Certified to the new EN 80079-36 and EN 80079-37 standards for constructional safety, The Bulldog comes ready to ‘plug and play’ with the option of fitting a plug, or hard wiring to an isolator unit.

Robust Design: Compact and rigid housing suitable for onshore and offshore usage.
Approved for the North Sea: For applications Onshore and Offshore including the Rental market
Portable and Lightweight: Suitable for single user operation, with the addition of anti-static castors. Can be supplied on a long flying lead to get heat where you need it.
Up to 6kW: Heat can be directed to target a single individual or warm a mid-sized room to comfortable operating temperatures.
Direct Efficiency: Provides warm flow of air for
operators at up to 5m.
Cold Resistant: Suitable for ambient temperatures as
low as -40°C and up to +40°C.
Temperature-Specific Options: Available in T3 and
T4 temperature classes.

Specifications

Certification	ATEX II 2 G D Ex h Ex db eb IIB + H2 T3 to T4 Gb Ex tb IIIC T200°C to T135°C Db	IECEx Ex db eb IIB + H2 T3 to T4 Gb Ex tb IIIC T200°C to T135°C Db
Zones	Zones 1 & 2 for Gas and Zones 21 & 22 for Dust
Main Materials	Casing: PA66 30% with EMI shielding Impeller: PA66 30% with EMI shielding with epoxy coated aluminium hub Ex d Enclosure: Anodised extruded aluminium Ex e Enclosure: Stainless steel Motor Housing: Epoxy coated aluminium
Mounting	Adjustable feet at each corner allow for a stable standing on uneven surfaces
Voltage	Single phase 220V, 230V, 240V, 254V & 277V, three phase 380V, 400V, 415V, 440V, 480V & 690V 50/60Hz
Element	Finned stainless steel tubular elements
Dimensions	Length 475mm, width 470mm, height 530mm
Ingress Protection	IP65
Weight	30kg, excluding cable and any optional components
Trademark	EU IPO trademark registration number 06118069

Model	Voltage (V)	Phase	T Class	Nominal Output (kW)	Air Flow approx. (m³/hr)		Air Temp. Delta approx (°C)		Max Current (A)
					50Hz	60Hz	50Hz	60Hz
MFH-3-230	230/220	1	T4	3/2.75	1050	1260	8.8	7.4	13.6
MFH-3-254	254/240	1	T4	3/2.75	1050	1260	8.8	7.4	12.4
MFH-3-277	277	1	T4	3	1050	1260	8.8	7.4	11.4
MFH-3-400	400/380	3	T4	3/2.75	1050	1260	8.8	7.4	4.9
MFH-3-440	440/415	3	T4	3/2.75	1050	1260	8.8	7.4	4.6
MFH-3-480	480	3	T4	3	1050	1260	8.8	7.4	4.3
MFH-3.7-600	600	3	T4	3.7	1050	1260	10.9	9.1	4.2
MFH-3.7-690	690	3	T4	3.7	1050	1260	10.9	9.1	3.7
