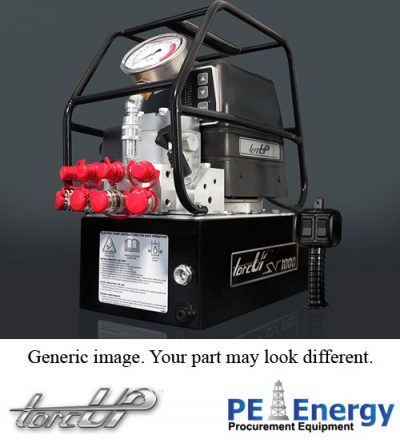

SV1000 Auto Cycle Pump 115V

SV SERIES Hydraulic Torque Wrench Pump

The Most Synchronous Hydraulic Torque Wrench Pump In The Industry

The SV Series hydraulic torque wrench pump is the perfect synthesis of continuous ratcheting and power to torque. Full range adjustability up to 10,000 PSI / 700 Bar.

• Made In USA
• Standard Multi-Port
• Available in 115V and 230V
• Supplied With 15? (3 Meter) Hydraulic Hose
• Genuine TorcUP Design

Features
Tool Selection Display
Industrial grade LED membrane switch enables quick selection of tool for auto cycle operation.

Powerful 1.5 HP Motor
The permanent magnet motor driving the SV1000 Series runs at 1/3 of the RPM found in other hydraulic pumps. Field-proven gears run cooler and last longer to provide years of trouble free service

Precise PSI/Bar Gauge
Removable, easy-to-read 4″ PSI/Bar gauge for ease of tool torque adjustment and monitoring.

Rugged Remote
Each pump includes the 15′ low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.

Built-In Protective Shroud and Roll Cage
The motor and electronics are enclosed in a safety shroud to protect the pump from the elements and other environmental contaminants. For added safety, the pump is also fitted with a sturdy roll cage for lifting and protection.

Industrial Reservoir
Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. The pump comes standard with a 1.5 gallon reservoir.

Easy View Sight Glass
Sight glass enables operator to monitor reservoir oil levels.

Pressure Adjustment Knob
The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.

Twinline High Pressure Hydraulic Hoses
Each pump comes standard with one set of 15′ twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.

No Drip Quick Connect Couplers
These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation. This model is configured for the quadra-torc option – running up to four tools simultaneously.
