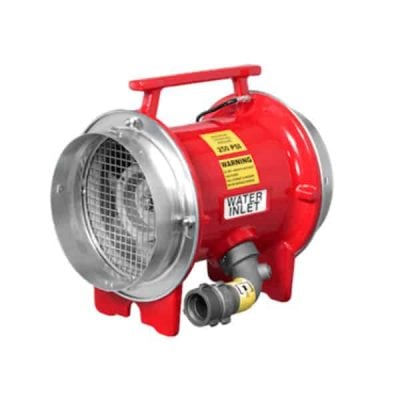

RamFan WA5001BSP 8″/20 cm WF20 Portable Ventilator

Name: RamFan WA5001BSP 8"/20 cm WF20 Portable Ventilator - Euramco Safety
SKU: WA5001BSP
Rating: 5 (1 reviews)

SKU: WA5001BSP

Manufacturer:

Euramco Safety

Bulk Orders

Competitive Pricing

Short Lead Times

Consolidated Shipping

Prompt Response

Request a Quote

Description
Additional information

No portable blower in the world compares with the smoke removal rates of the WF20 connected to ducting from 10″ to 12″. Warships at general quarters require powerful suction to remove smoke from interior spaces. The WF20 suctions the smoke from the affected areas through long lengths of ducting to the outside air.

The WF20 blower uses the water pressure energy of a fire hose and a patented turbine, coupled to a high-efficiency fan blade, to generate high-velocity, high-pressure airflow. The modular construction, choice of corrosion-resistant materials and simplicity assures infrequent and simple maintenance.

Specifications

Model	WF20
Part Number	WA5001BSP
Ducted Airflow	1,835 cfm @ 150 psi 3,120 m3/hr @ 1.0 MPa
PPV Airflow (with Multiplier)	13,125 cfm @ 150 psi (22,313 m3/hr @ 1.0 MPa) 16,511 cfm @ 250 psi (28,069 m3/hr @ 1.7 MPa)
Weight	35 lbs / 15.9 kg
Dimensions (h/w/d)	16 x 12 x 12 in / 40 x 31 x 31 cm
Pressure/Flow	Nominal: 40 psi/29 gpm (0.3 MPa/109 lpm) Max: 250 psi/94 gpm (1.75 MPa/355 lpm)
Power	4.6Hp @ 150 psi (3.4 kW @ 1.0 MPa) 8Hp @ 250 psi (6kw @ 1.7 MPa)
Connections	1.5″ (3.8 cm) NST (NH), NPSH, or BSP male connections
Certifications	AMCA CE
Air Flow (Single Door)	10,600 Cfm (18,000 M³/Hr)
Ducted	1,835 Cfm (3,520 M³/Hr)
