Lucas Oil CK-4 Diesel Oil
Bulk Orders
Lucas CK-4 is a premium Heavy Duty Motor Oil blended with high quality API Group II and Group III base oils and a cutting-edge additive package providing the robust performance required by modern diesel engines while assuring good fuel economy.
This product meets Cummins® Engine Standard CES20086
Key Benefits
- CK-4 is available in Synthetic and Synthetic Blend
- Longer engine life
- Extended oil changes
- Lower soot levels
- Less filter maintenance
- Less oxidation
- Lower oil consumption
- High temperature stability
- Exclusive Lucas formula
- Safely blends with other motor oils
Packaging

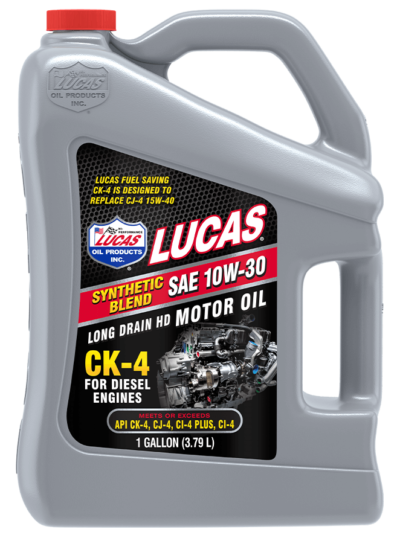

SAE 10W-30 Synthetic Blend CK-4 Diesel Oil
| #10282 | 1 Gallon (Case of 4) | 32 lbs |
| #10283 | 5 Gallon Pail (1 Pail) | 40 lbs |
| #10284 | 55 Gallon Drum (1 Drum) | 440 lbs |
| #10285 | 330 Gallon Tote (1 Tote) | 2,500 lbs |
SAE 5W-40 Synthetic CK-4 Motor Oil
| #11178 | 1 Gallon (Case of 4) | 32 lbs |
| #11165 | 5 Gallon Pail (1 Pail) | 40 lbs |
| #18011 | 6 Gallon BIB (1 BIB) | 46 lbs |
| #11166 | 55 Gallon Drum | 440 lbs |
| #11167 | 330 Gallon Tote (1 Tote) | 2,500 lbs |
| #11168 | Bulk |
SAE 15W-40 Synthetic CK-4 Diesel Oil
| #11246 | 1 Quart (Case of 12) | 25 lbs |
| #11247 | 1 Gallon (Case of 4) | 32 lbs |
| #11248 | 5 Gallon Pail (1 Pail) | 40 lbs |
| #11249 | 55 Gallon Drum (1 Drum) | 440 lbs |
| #11250 | 330 Gallon Tote (1 Tote) | 2,500 lbs |
SAE 15W-40 Magnum CK-4 Diesel Oil
| #10287 | 1 Gallon (Case of 4) | 32 lbs |
| #10288 | 5 Gallon Pail (1 Pail) | 40 lbs |
| #10289 | 55 Gallon Drum | 440 lbs |
| #10292 | 330 Gallon Tote (1 Tote) | 2,500 lbs |
What is CK-4 diesel oil, and which trucks need it?
Lucas formulates its CK-4 oils (also searched as CK 4 or CK4 oil) for modern diesel engines that run on ultra-low sulfur diesel fuel and carry emission control systems such as DPF and SCR. Each current Lucas CK-4 data sheet lists API CK-4 among the specifications the oil meets or exceeds.
From the data sheets: the 15W-40 oils provide soot control and TBN retention, and Lucas describes them as well suited to higher mileage engines and to mixed fleets where older and newer vehicles share one motor oil.
CK-4 vs CJ-4: can CK-4 oil go in older diesel engines?
Lucas states that its 15W-40 and 10W-30 CK-4 oils are fully backward compatible with the earlier API CJ-4 and CI-4 Plus standards, and its 5W-40 with prior standards such as CJ-4. Confirm the SAE grade and OEM specification in your engine manual against the data sheet list.
- Earlier API categories listed: CJ-4, CI-4 Plus, CI-4, plus the light duty SN and SM.
- Cummins: all three current data sheets list CES 20086.
- Other OEM specifications listed: Caterpillar ECF-3, Detroit Diesel DFS 93K222, Volvo VDS-4.5 and Mack EOS-4.5 (Synthetic 15W-40 and Synthetic Blend sheets).
Which Lucas CK-4 engine oil grade fits your fleet: 5W-40, 10W-30 or 15W-40?
Start with the SAE grade your engine maker specifies, because Lucas recommends each CK-4 engine oil for engines specifying that grade. Synthetic 5W-40 is the fully synthetic oil Lucas designed for extremely cold temperatures; the 15W-40 comes as Synthetic or Synthetic Blend, each with its own part numbers (listed below).
| Grade and property | Typical value | Source note |
|---|---|---|
| Synthetic 5W-40, viscosity at 100°C | 15.1 cSt | Lucas data sheet, updated 3/26/2024 |
| Synthetic 5W-40, cold cranking at -30°C | 5,738 cP | Lucas data sheet, updated 3/26/2024 |
| Synthetic 5W-40, TBN (D2896) | 10.2 | Lucas data sheet, updated 3/26/2024 |
| Synthetic 15W-40, viscosity at 100°C | 14.8 cSt | Lucas data sheet, updated 2/19/2025 |
| Synthetic 15W-40, flash point (PMCC) | >400°F | Lucas data sheet, updated 2/19/2025 |
Where can I buy Lucas CK-4 diesel oil in bulk for a truck fleet?
Use the Request a Quote button on this page and list the Lucas part number and container for each grade you run. The Lucas data sheets list bulk containers up to a 330 gallon tote:
- Synthetic 5W-40: 11166 (55 gallon), 11167 (330 gallon), 11168 (bulk)
- Synthetic 15W-40: 11249 (55 gallon), 11250 (330 gallon), 18065 (6 gallon bag in box)
- Synthetic Blend 15W-40: 10289 (55 gallon), 10292 (330 gallon), 18014 (6 gallon bag in box)
- Synthetic Blend 10W-30: 10284 (55 gallon), 10285 (330 gallon), 18017 (6 gallon bag in box)
