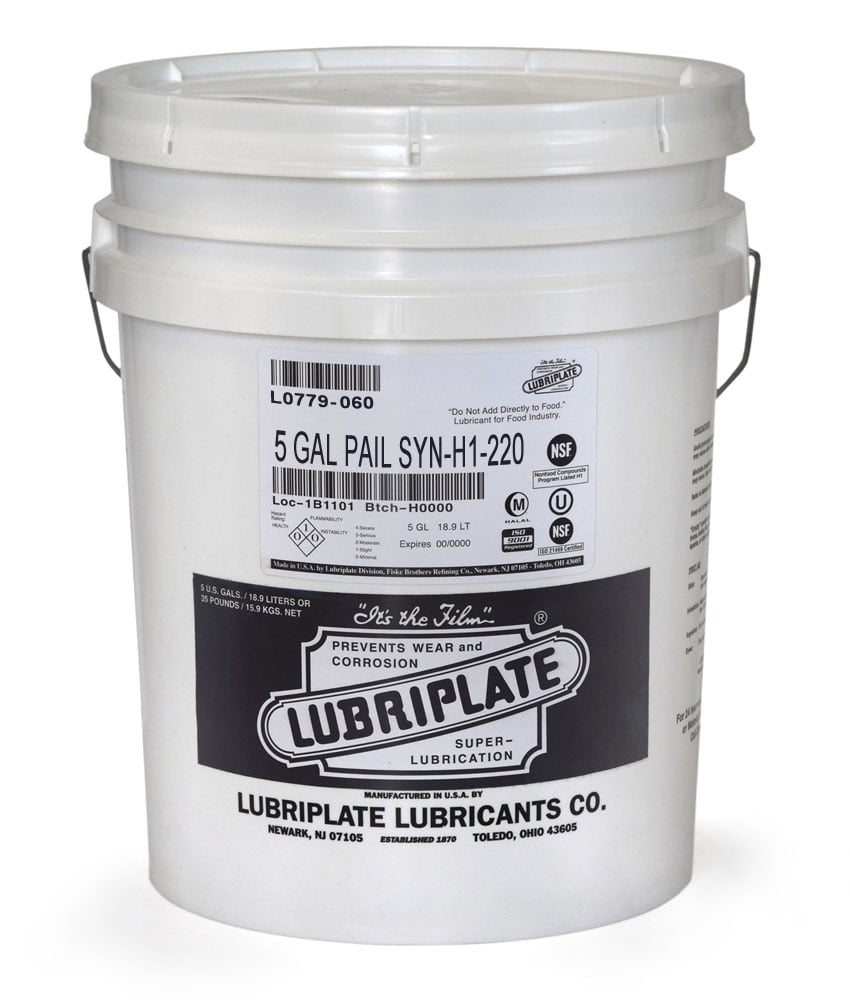

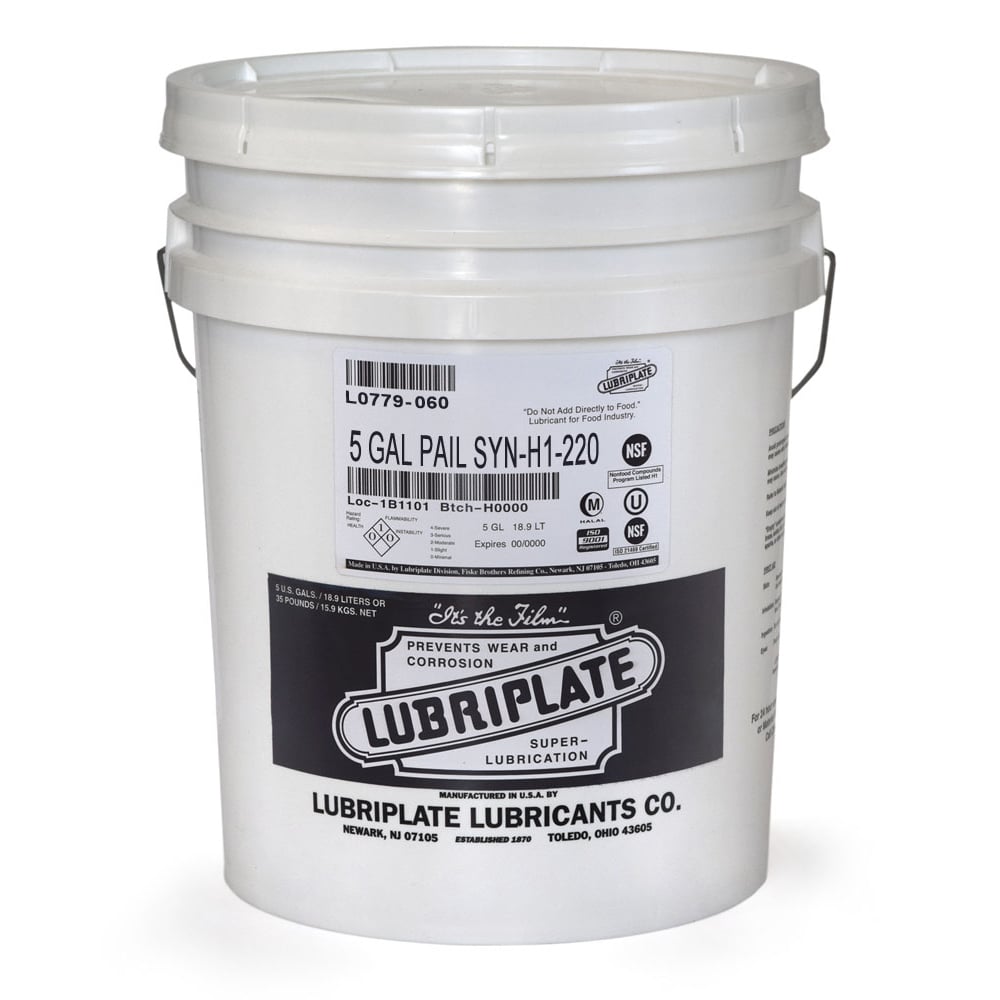

Lubriplate L0779-060 SYN-H1-220 – Pail (5 gl)

LUBRIPLATE SYN-H1-220 is a Polyalkylene Glycol (PAG) based synthetic, bearing and gearbox lubricant specifically designed for use where elevated temperatures exist and the need for a Food Grade lubricant is required. LUBRIPLATE SYN-H1-220 is specifically formulated for food processing equipment where there is the possibility of incidental food contact and is manufactured with ingredients which comply with FDA 21 CFR 178.3570 and NSF H-1 requirements.

APPLICATIONS

LUBRIPLATE SYN-H1-220 is recommended for bearings and gearboxes that are exposed to temperatures up to 400F for extended periods of time.

ADVANTAGES

With its excellent load carrying capacity, 12 Stages Passed on FZG Four Square Gear Test; you can be assured that your bearings and gears have the utmost protection from wear even under the most severe operating conditions. LUBRIPLATE SYN-H1-220 has excellent lubricity which decreases friction and lowers bulk oil temperatures. It also has outstanding thermal and oxidative stability which allows for its longer service life.

CHANGEOVER PROCEDURE

LUBRIPLATE SYN-H1-220 is compatible with minor amounts of petroleum oils. However, to achieve maximum performance from LUBRIPLATE SYNH1-220, it is suggested that the following procedure be followed when converting from petroleum oil based lubricants in a reservoir system such as bearing housing or gearbox:

1) Drain previous lubricant from equipment while still warm.
2) Replace any filter if applicable.
3) Fill equipment reservoir with LUBRIPLATE SYN-H1-220. Run under normal operating conditions for 24 hours. LUBRIPLATE SYN-H1-220 will generally clean any varnish and sludge which may have been left behind by the petroleum oil.
4) Thoroughly drain the reservoir while still warm.
5) Inspect the oil filters, if applicable, and replace as needed.
6) Fill the reservoir with fresh LUBRIPLATE SYN-H1-220 and begin normal operation

COMPATIBILITY

LUBRIPLATE SYN-H1-220 is compatible with most elastomers used in seals and gaskets. Below is a list of the most common elastomers which are suitable for use with LUBRIPLATE SYN-H1-220:

Buna NHycarHypalonNatural Black RubberNatural Red RubberBuna SNeoprene
