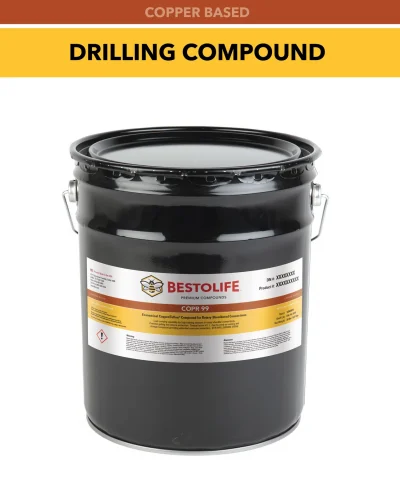

BESTOLIFE 655520 Copr 99

BESTOLIFE® Copr 99 is a lead-free, zinc-free thread compound for rotary-shouldered connections. It provides galling and seizing protection and support for high bearing stress. It applies easily in a wide range of temperatures and conditions, resists washout, and will not harden or bleed excessively in storage.

APPLICATIONS
Economical copper/PTFE compound for rotary shouldered connections. Recommended for all drilling applications (rotary-shouldered connections). It is also effective for use on slides, jacking systems, cantilever type rigs, and assemblies.

TECHNICAL DATA
Copr 99 meets or exceeds environmental restrictions and exposure concerns associated with the use of lead and zinc drill collar/tool joint thread compounds. It contains copper flake combined with a proprietary blend of graphite and other solids in a high-quality lubricating base grease formulated with H2S and oxidation inhibitors. API and IADC tables for drill collars and drill pipe are minimum torque values. BESTOLIFE® recommends applying the friction factor to the optimum makeup torque to ensure maximum performance and protection when using BESTOLIFE® copper compounds.

PRODUCT CHARACTERISTICS
Color: Copper
Penetration: (ASTM D217) 295-310
NLGI Grade: 1.5
Weight/Gallon: 9.9 pounds/gallon
Thickener: Lithium
Fluid Type: Petroleum
Dropping Point: (ASTM D2265) ≥350°F (≥177°C)
Flash Point: ≥392°F (≥200°C)
Brushable To: 10°F (-12°C)
Service Rating: 500°F (260°C)
Friction Factor: 1.0*
Shelf Life: (Unopened container) 4 years
Contains: Copper, PTFE, graphite and other nonmetallic additives
Container Size: 2 gallon
Container Weight: 20 pounds plastic
