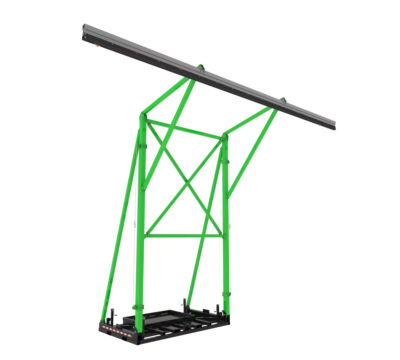

8517763 – 3M DBI-SALA Flexiguard Counterweight Rail Fixed Height Anchor System with Concrete, 2 User, 22 ft High, 42 ft Wide

SKU: 8517763
Manufacturer:
3M

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

Details

Highlights

  • Counterweighted overhead rail fall protection system
  • Portable with use of a forklift
  • 3M™ DBI-SALA® FlexiGuard™ Systems are available in multiple sizes, both fixed and adjustable heights
  • Aluminum and steel construction
  • Includes four steel leveling jacks; built-in slope indicators available as option
  • One part of your fall protection system; intended for use with other personal protective equipment (PPE) including (but not limited to) harnesses and self-retracting lifelines
  • Complete hardware provided
  • Recommended for a variety of applications within the transportation, construction, utilities, and mining industries
  • Specialized installation and training available

3M™ DBI-SALA® FlexiGuard™ Counterweight Rail Fixed Height Anchor System with Concrete 8517761, 2 User, 22 ft (6.7 m) High, 32 ft (9.75 m) Wide

The FlexiGuard Counterweighted System is designed as a portable solution to provide an overhead anchor point for multiple users while working at heights. These systems are designed to be counterbalanced by concrete or other means, allowing for close positioning to the work surface without obstructing the equipment being accessed. These systems are ANSI and OSHA compliant. DBI SALA® has created a proven process for developing unique solutions. Whether it’s an existing or modified product, or an entirely new design, FlexiGuard always meets the requirements of your specific application. Each custom solution is driven by our customers’ needs and is dependent on the industry, environment and specific design constraints, including government standards. We also have numerous pre engineered systems that may be a perfect solution to your fall protection challenge. All of our systems are extremely durable and built to last with world class quality, materials and workmanship. They are unique solutions to unique challenges, and fall protection you can trust.

Typical properties

Brands DBI-SALA®
Case Quantity 1
Connected Safety ID Equipped Yes
Install Type Temporary/Portable
Maximum Height (Imperial) 23.55 ft
Maximum Height (Metric) 7.18 m
Maximum Number of Users Two
Net Weight (Imperial) 3980 lb
Product Color Silver, Yellow
Product Series FlexiGuard™
Product Type Counterweighted System
Recommended Industry Construction, Mining, Transportation, Utilities
Specifications Met ANSI Z359.6, OSHA 1926.502
Weight (Imperial) 3980 lb.
Weight Capacity 310 lbs. (141 kg)
Weight Capacity (Imperial) 420 lb.
Weight Capacity (Metric) 190 kg
Overall Width (Imperial) 42 ft
Overall Width (Metric) 12.8 m
