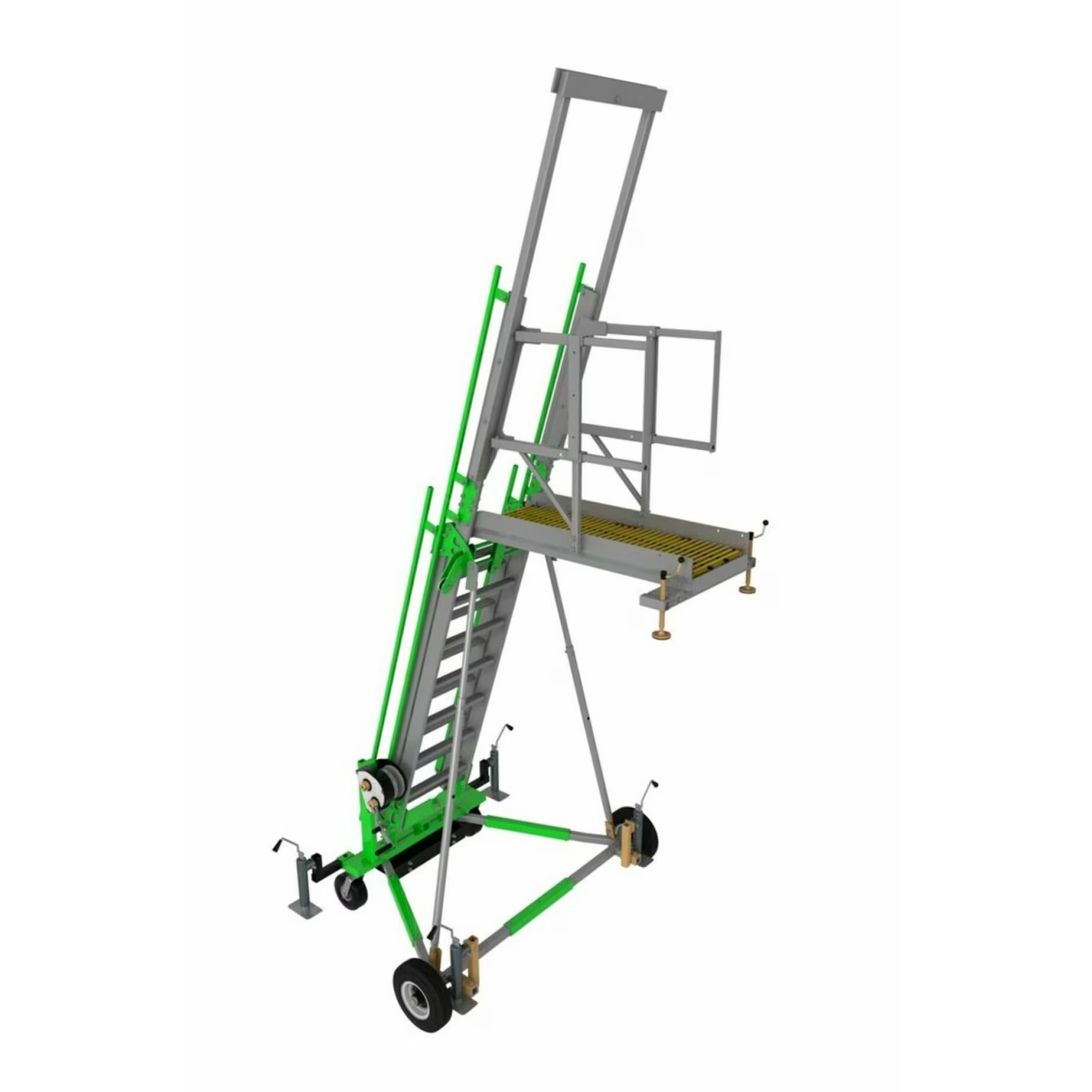

8517719 – 3M DBI-SALA Flexiguard Freestanding Ladder Adjustable Height Access Anchor System, 2 User, 18.5 – 31 ft.

SKU: 8517719
Manufacturer:
3M

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

Details

Highlights

  • Freestanding Ladder System
  • Multiple height adjustment ranges available
  • Requires minimal clearance away from the work area/ object
  • Visual level indicators
  • Platform height ranges from 10.75 ft. (3.28 m) to 30.8 ft (9.39 m) available over various models
  • Fall arrest anchorage for accessing ladder
  • Different models available to suit customer requirements
  • Custom designs available
  • Manual height adjustment via winch assembly
  • Leveling jacks included
  • Aluminum and steel construction
  • Specialized installation and training available

3M™ DBI-SALA® FlexiGuard™ Freestanding Ladder System combines convenient access to elevated work areas with 100% fall protection for up to two users from the ground up for the duration of the work being performed

The FlexiGuard Freestanding Ladder System combines easy access to elevated work areas with 100% fall protection for up to two users from the ground up for the duration of the work being performed. System configurations include guardrails and the use of multiple SRLs on the system. These systems are ANSI and OSHA compliant. DBI SALA® has created a proven process for developing unique solutions. Whether it’s an existing or modified product, or an entirely new design, FlexiGuard always meets the requirements of your specific application. Each custom solution is driven by our customers’ needs and is dependent on the industry, environment and specific design constraints, including government standards. We also have numerous pre engineered systems that may be a perfect solution to your fall protection challenge. All of our systems are extremely durable and built to last with world class quality, materials and workmanship. They are unique solutions to unique challenges, and fall protection you can trust.

Typical properties

Brands DBI-SALA®
Case Quantity 1
Connected Safety ID Equipped Yes
Install Type Temporary/Portable
Maximum Height (Imperial) 31 ft
Maximum Height (Metric) 9.449 m
Maximum Number of Users Two
Minimum Height (Imperial) 18.25 ft
Minimum Height (Metric) 5.563 m
Net Weight (Imperial) 2850 lb
Net Weight (Metric) 1292.7 kg
Product Color Silver, Yellow
Product Series FlexiGuard™
Product Type Freestanding Ladder System
Recommended Industry Construction, Mining, Transportation, Utilities
Specifications Met ANSI Z359.6, OSHA 1926.502
Weight (Imperial) 2850 lb.
Weight Capacity 310 lbs. (141 kg)
Weight Capacity (Imperial) 310 lb.
Weight Capacity (Metric) 140.614 kg
