3M DBI-SALA Temporary Cable Horizontal Lifeline HLL Lifeline Assembly
Bulk Orders
Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote
Details
Highlights
- Durable galvanized lifeline
- Portable design is durable, yet lightweight, for easy transport
- Built-in, turnbuckle tensioner helps your worker tension the system to the required level
- Stanchions and bases sold separately
- This safety equipment is intended for use with additional personal protective equipment (PPE)
- Recommended for use in multiple industries including construction, facilities, power plants, general manufacturing, heavy infrastructure, and more
- Equipped with RFID
- Metal energy absorbers, help protect the structure, and minimize needed fall clearance
- Steel carabiners are easy to use, self locking and closing, and provide quick and safe attachment

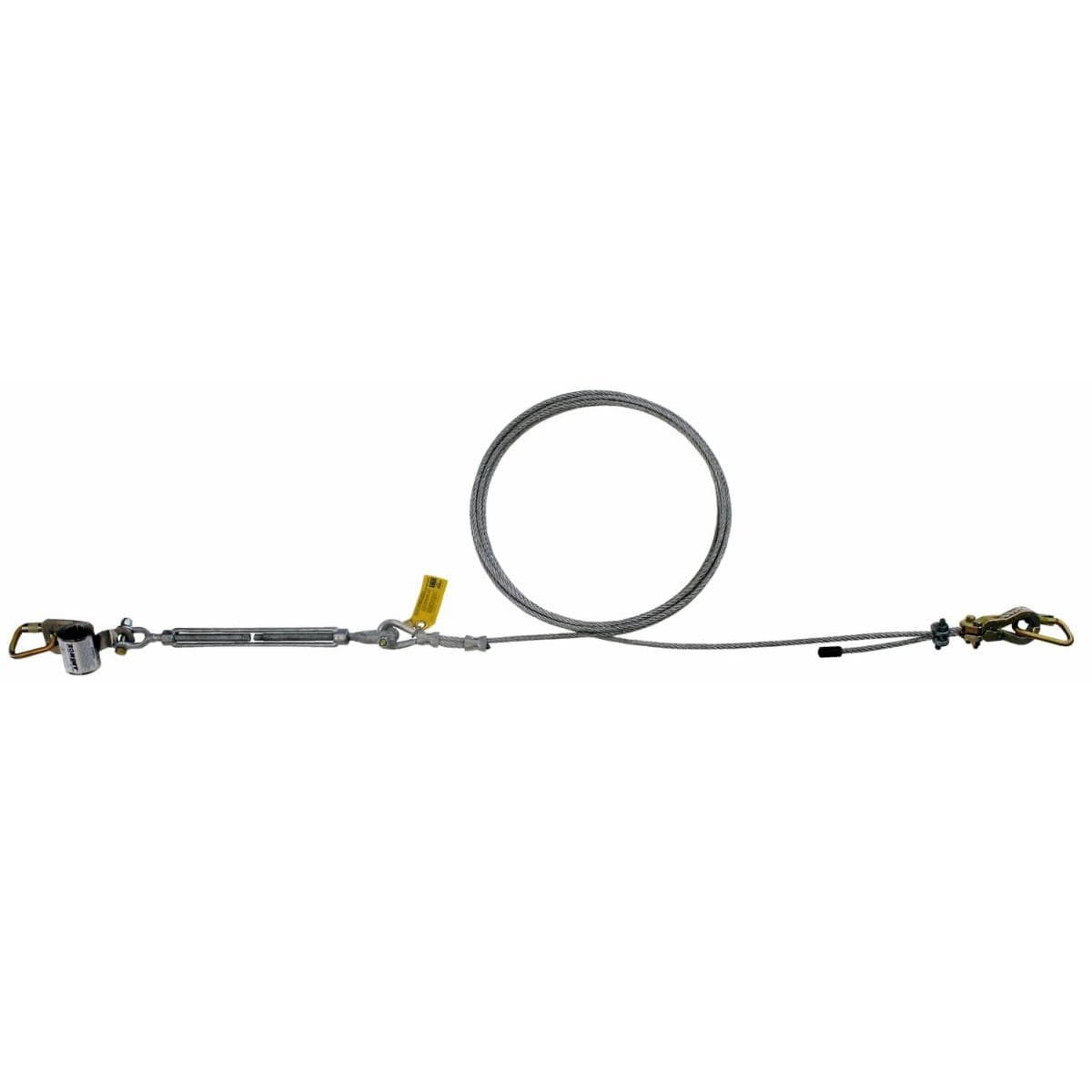

3M™ DBI-SALA® Temporary Cable Horizontal Lifeline Assembly offers the comprehensive approach to fall-arrest protection you expect from 3M. This safety equipment kit includes a steel cable lifeline, turnbuckle tensioner, metal energy absorbers, and carabiners for easy attachment.
Tie off and get to work
The 3M™ DBI-SALA® Temporary Cable Horizontal Lifeline Assembly is a complete lifeline system that features a steel cable lifeline, turnbuckle tensioner, metal Energy Absorbers, and Saflok™ carabiners. The metal energy shock absorbers help reduce fall force on the worker to safe levels, the tensioner helps your team find the safe and secure level of tension, and self-locking carabiners allow you to easily connect to the stanchions.
Built for versatility
Whether you’re adding to your existing system or starting from scratch, the 3M™ DBI-SALA® Temporary Cable Horizontal Lifeline offers exceptional flexibility on the job. Our complete line of fall prevention gear and accessories ensures that whether you’re configuring a single-span or multi-span system, you can rely on 3M DBI-SALA for trusted, customizable fall protection.
Reliable fall protection
Typical properties
| Case Quantity | 1 |
| Connected Safety ID Equipped | Yes |
| Install Type | Temporary/Portable |
| Lifeline Length (Imperial) | 20 ft, 40 ft, 60 ft, 80 ft, 100 ft, 120 ft, 140 ft, 160 ft, 180 ft, 200 ft, 220 ft, 240 ft, 260 ft, 280 ft, 300 ft |
| Lifeline Length (Metric) | 6.09 m, 12.19 m, 18.28 m, 24.38 m, 30.47 m, 36.57 m, 42.66 m, 48.76 m, 54.86 m, 60.95 m, 67.05 m, 73.14 m, 79.24 m, 85.33 m, 91.43 m |
| Lifeline Material | Galvanized Cable |
| Maximum Number of Workers | 2 Per Span, 6 Total |
| Product Series | SecuraSpan™ |
| Product Type | Lifeline/Component |
| Recommended Industry | Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities |
| Span Type | Single or Multi-Span |
| Specifications Met | ANSI Z359.1, OSHA 1910.66, OSHA 1926.502 |
| Weight (Imperial) | 16 lb., 20 lb., 25 lb., 33 lb., 38 lb., 42 lb., 47 lb., 53 lb., 58 lb., 63 lb., 68 lb., 73 lb., 78 lb., 83 lb., 88 lb. |
| Weight (Metric) | 7.3 kg, 9.1 kg, 11.3 kg, 15 kg, 17.2 kg, 19.1 kg, 21.3 kg, 24 kg, 26.3 kg, 28.6 kg, 30.8 kg, 33.1 kg, 35.4 kg, 36 kg, 37.6 kg |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity (Imperial) | 310 lb. |
| Weight Capacity (Metric) | 141 kg |
| Overall Length (Imperial) | 20 ft, 40 ft, 60 ft, 80 ft, 100 ft, 120 ft, 140 ft, 160 ft, 180 ft, 200 ft, 220 ft, 240 ft, 260 ft, 280 ft, 300 ft |
| Overall Length (Metric) | 6 m, 12 m, 18 m |
