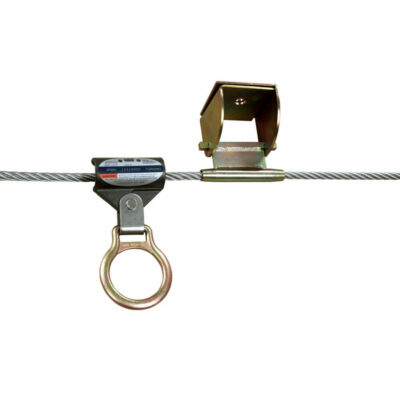

3M DBI-SALA Permanent Multi-Span Horizontal Lifeline System
Bulk Orders
Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote
Details
Highlights
- Available in galvanized and stainless steel 3/8 in. (9.5 mm) 7×19
- Available in multiple lengths with many system components
- Off the shelf permanent multi-span horizontal system designed for user installation
- Metal energy absorber limits fall arrest forces
- Flexible system capacity
- Equipped with RFID
- Sleeve provides hands-free operation (order model 7608002 separately)
- Customizable multi-span configurations
3M™ DBI-SALA® Permanent Multi-Span Cable Horizontal Lifeline System comes is multiple lengths available–all include one intermediate bracket, tensioner, mounting hardware and metal energy absorbers.
The multi span system is a simple and safe off the shelf permanent horizontal lifeline designed for user installation. It is customizable, including span length, total system length and even final installation position. The brackets are specifically designed so the system may be installed above, even with, or below the user. We offer a broad selection, as well as significant features in safety and productivity. A horizontal lifeline may appear to be a basic line strung between two anchors, but it is much more complex. It is critical to choose a system that has been precision engineered and tested to meet regulations. These systems are used to protect workers operating in the horizontal plane who may not have continuous access to suitable anchorage points.
Typical properties
| Case Quantity | 1 |
| Connected Safety ID Equipped | Yes |
| Install Type | Permanent |
| Lifeline Length (Imperial) | 20 ft, 40 ft, 60 ft |
| Lifeline Length (Metric) | 6.09 m, 12.19 m, 18.28 m |
| Lifeline Material | Galvanized Cable, Stainless Steel Cable |
| Maximum Number of Workers | 2 |
| Net Weight (Imperial) | 27 lb, 32 lb |
| Net Weight (Metric) | 12.2 kg, 14.5 kg |
| Product Type | Permanent Multi-span Horizontal Lifeline System |
| Recommended Industry | General Industrial |
| Span Type | Multi-Span |
| Specifications Met | OSHA 1910.66, OSHA 1926.502 |
| Weight (Imperial) | 22 lb., 27 lb., 32 lb. |
| Weight (Metric) | 12.2 kg, 14.5 kg |
| Weight Capacity | 310 lbs. (141 kg) |
| Weight Capacity (Imperial) | 310 lb. |
| Weight Capacity (Metric) | 141 kg |
| Overall Length (Imperial) | 20 ft, 40 ft, 60 ft |
| Overall Length (Metric) | 12.2 m, 18.3 m |
