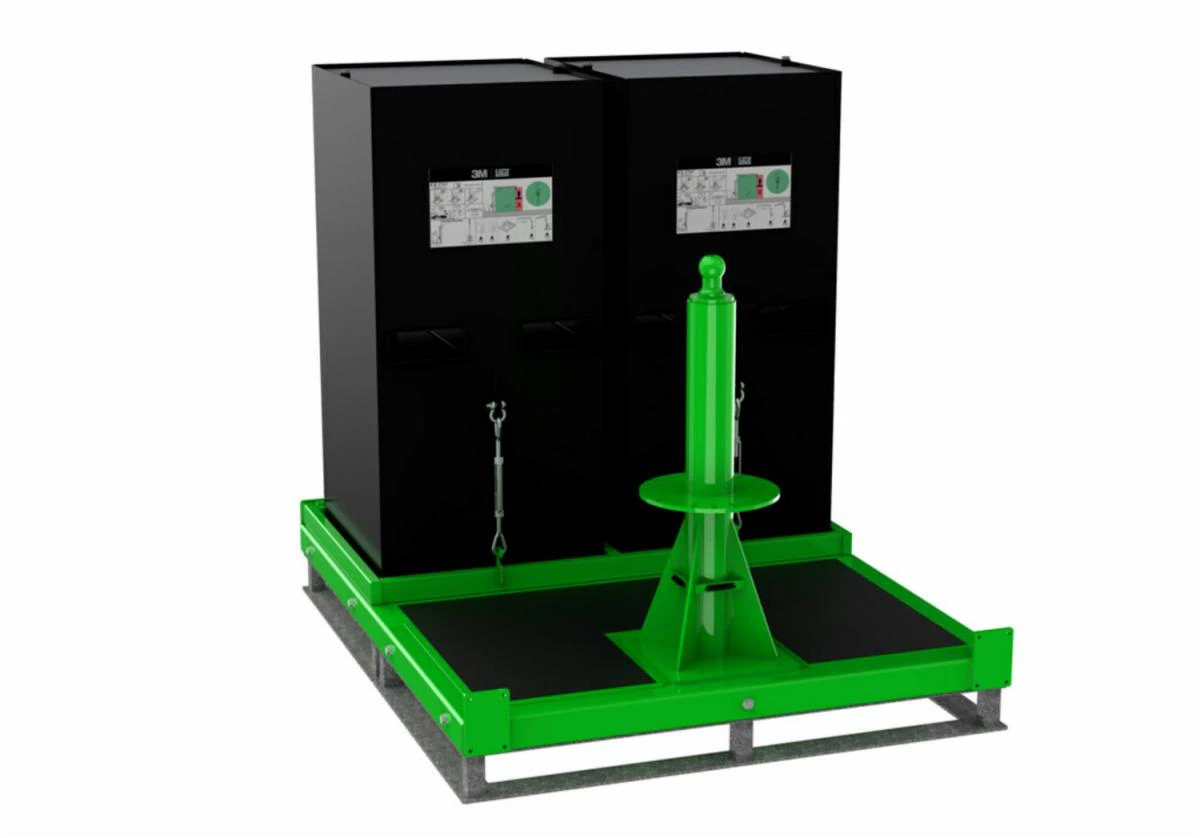

3M DBI-SALA FlexiGuard M200 Portable Counterweight Base
Bulk Orders
Details
Highlights
- Powder coated steel upright and gusset components
- Automatic mast lock helps prevents uncontrolled mast movement
- Permanent or portable mounted designs available
- Integrated level indicators (Counterweight Bases). Removable counterweight box (Counterweight Bases) with built in fork pockets and lifting ring attachment points (Lifting Kit sold separately). Open multi-directional base designed to accommodate a wide array of fork shapes and sizes
- Extended rail-length increases safe working area compared to our previous jib systems
- Aluminum extruded trolley rail
- Stainless steel / nylon construction
- 3M™ Safety-Walk™ Slip Resistant walking surface (counterweight Bases)
- Extended anchor height enhances capabilities in various applications compared to our previous jib systems
- Rotating mast up to 360 degrees with flip up rotation handle
- Power assisted height adjustment capability for adjustable models
- Additional system mobility with optional caster wheel kit
The 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a unique overhead anchorage system. The 3M™ DBI-SALA® FlexiGuard™ M200 Portable Counterweight Base design with removable counterweight box enables easier system mobility with a forklift.
The 3M™ DBI SALA® Flexiguard™ Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combination of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.
Typical properties
| Concrete Included | No, Yes |
| Connected Safety ID Equipped | No |
| Install Type | Temporary/Portable |
| Manufacturing Origin | USA |
| Maximum Height (Imperial) | 6.1 ft |
| Maximum Height (Metric) | 1.9 m |
| Maximum Number of Users | One or Two |
| Minimum Height (Imperial) | 6.1 ft |
| Minimum Height (Metric) | 1.9 m |
| Mounting Type | Surface |
| Net Weight (Imperial) | 2407 lb, 11325 lb |
| Net Weight (Metric) | 1091.8 kg, 5136.93 kg |
| Product Series | M200 |
| Product Type | Portable Jib Base |
| Recommended Industry | Transportation |
| System Type | Portable Counterweight Bases |
| Weight (Metric) | 521 kg |
| Weight Capacity (Imperial) | 310 lb. |
| Weight Capacity (Metric) | 141 kg |
| Overall Height (Metric) | 1730 mm |
| Overall Length (Metric) | 2210 mm |
| Overall Width (Metric) | 180 mm |
