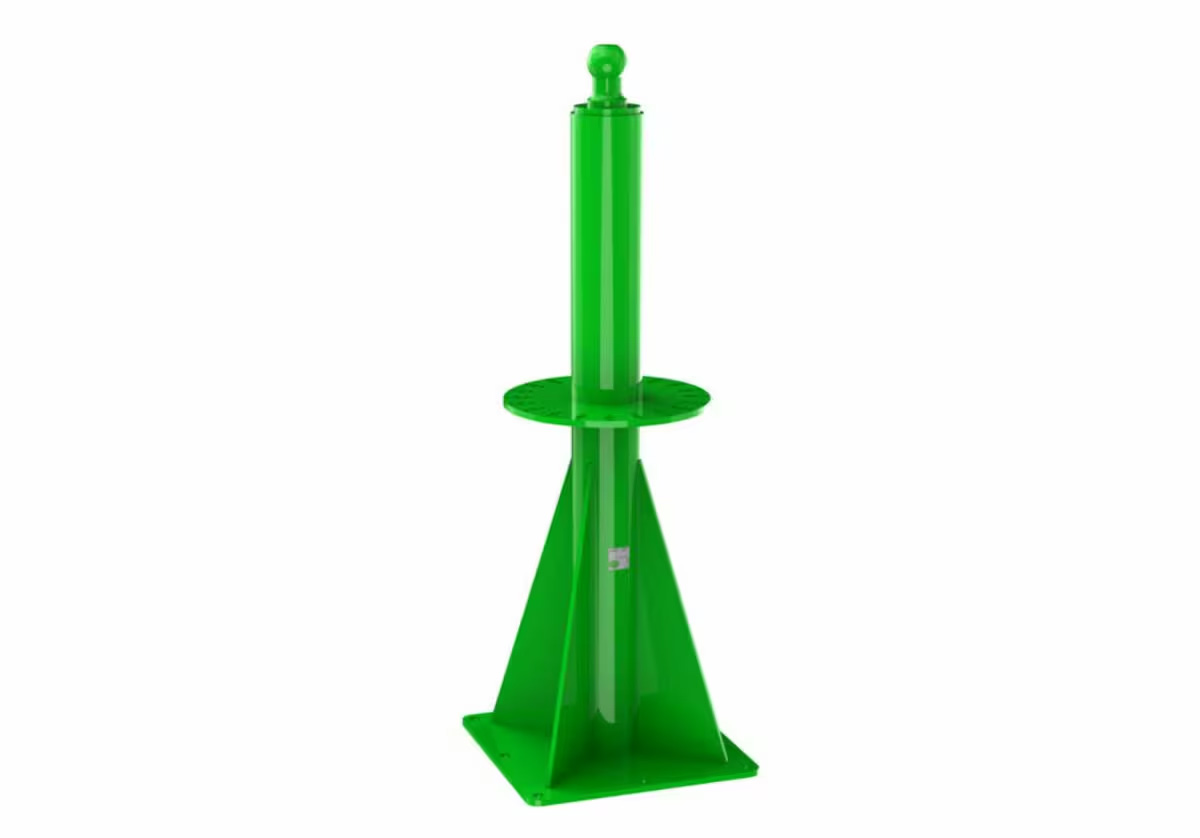

3M DBI-SALA FlexiGuard M200 Permanent Mount Base

SKU: DBI-SALA-FMPMB
Manufacturer:
3M

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

Details

Highlights

  • Permanently mounted design
  • Works optimally with all M200 series mast assemblies
  • Rugged powder coated steel construction

The 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a portable overhead anchorage system. The 3M™ DBI-SALA® FlexiGuard™ M200 Permanent Mount Base is built with powder coated steel. The height adjustable design allows for maximum transportability and adaptation to different work environments. Adjustment of the system can be accomplished manually with integrated winch for adjustable models, or by relocating channel fasteners on semi fixed models.

The 3M™ DBI SALA® Flexiguard™ Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combinantion of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.

Typical properties

Connected Safety ID Equipped No
Install Type Permanent
Manufacturing Origin USA
Maximum Height (Imperial) 4.6 ft, 6.6 ft
Maximum Height (Metric) 1.4 m, 2 m
Maximum Number of Users One or Two
Minimum Height (Imperial) 4.6 ft, 6.6 ft
Minimum Height (Metric) 1.4 m, 2 m
Mounting Type Embedded, Surface
Net Weight (Imperial) 265 lb, 377 lb
Net Weight (Metric) 120.2 kg, 171 kg
Product Series FlexiGuard™, M200
Product Type Permanent Jib Base
Recommended Industry Mining, Utilities
System Type Permanent Floor Mount Bases, Permanent Flush Mount Bases
Weight (Metric) 120.2 kg, 171 kg
Weight Capacity (Imperial) 310 lb.
Weight Capacity (Metric) 141 kg
Overall Height (Metric) 0 mm
Overall Length (Metric) 0 mm
Overall Width (Metric) 0 mm
