3M DBI-SALA FlexiGuard M100 Portable Counterweight Base
Bulk Orders
Details
Highlights
- Powder coated steel upright and gusset components
- Automatic mast lock helps prevent uncontrolled mast movement
- Permanent and portable mounted designs available
- 3M™ Safety-Walk™ Slip Resistant walking surface (counterweight Bases)
- Extended rail-length increases safe working area compared to our previous jib systems
- Aluminum extruded trolley rail with stainless steel / nylon trolley construction
- Power assisted height adjustment capability for adjustable models
- Additional system mobility with optional caster wheel kit
- Extended anchor height enhances capabilities in various applications compared to our previous jib systems
- Rotating mast up to 360 degrees with Flip up rotation handle
- Leveling jacks standard on the M100 with integrated fork pockets for transporting and positioning using industrial forklifts

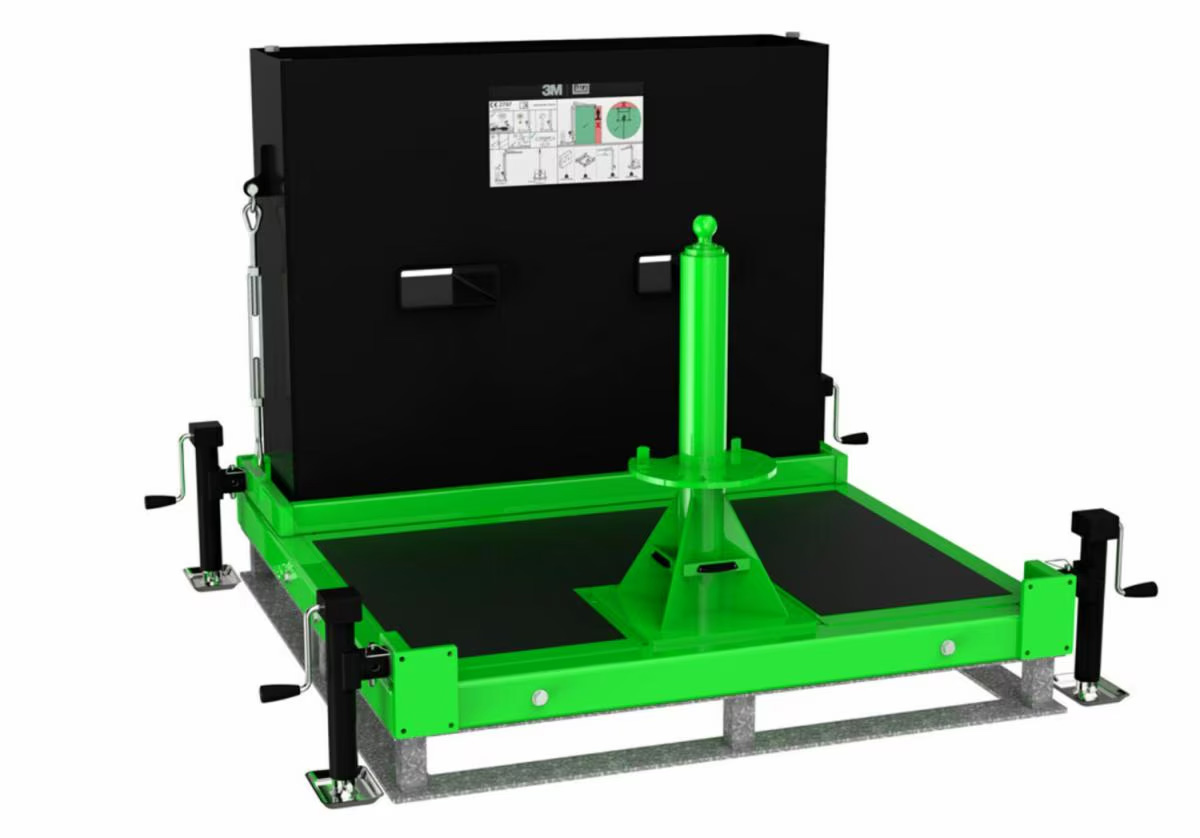

The 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a unique overhead anchorage system. The 3M™ DBI-SALA® FlexiGuard™ M100 Portable Counterweight Bases design with removable counterweight box enables easier system mobility with a forklift.
The 3M™ DBI SALA® Flexiguard™ Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combination of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.
Typical properties
| Concrete Included | No, Yes |
| Connected Safety ID Equipped | No |
| Install Type | Temporary/Portable |
| Manufacturing Origin | USA |
| Maximum Height (Imperial) | 4.5 ft |
| Maximum Height (Metric) | 1.4 m |
| Maximum Number of Users | One |
| Minimum Height (Imperial) | 4.5 ft |
| Minimum Height (Metric) | 1.4 m |
| Mounting Type | Surface |
| Net Weight (Imperial) | 1498 lb, 4195 lb |
| Net Weight (Metric) | 679.48 kg, 1902.82 kg |
| Product Series | FlexiGuard™, M100 |
| Product Type | Portable Jib Base |
| Recommended Industry | General Industrial, Utilities |
| System Type | Portable Counterweight Bases |
| Weight (Metric) | 0 kg, 680.39 kg |
| Weight Capacity (Imperial) | 310 lb. |
| Weight Capacity (Metric) | 141 kg |
| Overall Height (Metric) | 0 mm, 1680 mm |
| Overall Length (Metric) | 1390 mm, 1680 mm |
| Overall Width (Metric) | 142 mm, 203 mm |
