OTECO Manifold Fittings: 5K Oilfield Pressure Equipment for Drilling Operations

When a Single Manifold Fitting Failure Costs You $1.2 Million in Lost Production

Picture this: It’s 3:47 AM on a drilling platform in the Gulf of Mexico. Your crew is 847 feet into what could be the most productive well of the year. Then you hear it — that sickening sound of metal giving way under 5,000 PSI of pressure.

A manifold fitting just failed. Not because of operator error. Not because of extreme conditions. But because some purchasing manager decided to save $200 per fitting by buying “equivalent” components from the lowest bidder.

Now you’re looking at a minimum 18-hour shutdown. Emergency helicopter flights for replacement parts. Crew overtime at $180 per hour per man. And that’s assuming the failure didn’t damage anything else downstream.

The real cost of that “savings”? $1.2 million in lost production time. Plus the reputation hit when word spreads that your operation went dark because of cheap fittings.

Why Smart Operators Are Losing Sleep Over Manifold Fitting Quality

Here’s what keeps drilling superintendents awake at night: the manifest fitting market has become a minefield of substandard components masquerading as “API equivalent” equipment.

You’ve seen it firsthand. Fittings that look identical to proven components, priced 30-40% below established suppliers. The sales rep shows you certifications that look legitimate. The metallurgy reports seem to check out. So you take the bait.

But here’s the brutal truth about cutting corners on manifold fittings: the failure doesn’t happen during installation when it’s convenient to fix. It happens at 2 AM during peak flow rates when every second of downtime costs you real money.

And it’s not just about the immediate failure costs. When inferior fittings can’t maintain proper flow characteristics, you’re bleeding efficiency with every barrel that passes through. The restriction might only cost you 3-5% flow rate, but multiply that across a year of production and you’re talking about hundreds of thousands in lost revenue.

Worse yet, when these substandard fittings fail catastrophically, they don’t fail clean. They create debris, pressure spikes, and secondary failures that can cascade through your entire manifold system. One $500 fitting failure can easily trigger $50,000 in collateral damage.

The hidden killer? Inconsistent metallurgy. Those “equivalent” castings might pass initial testing, but they haven’t been proven through millions of pressure cycles in real-world conditions. They develop stress fractures, corrosion patterns, and fatigue failures that properly engineered fittings simply don’t experience.

The Houston Solution That’s Been Bulletproof for 60+ Years

Since 1962, OTECO has been manufacturing manifold fittings in Houston with one obsession: zero failures in the field. Not “low failure rates.” Not “acceptable industry standards.” Zero.

Their 5K and 7.5K high-pressure manifold fittings aren’t just another option in the marketplace. They’re what you specify when failure is not an option. When your drilling operation absolutely, positively has to maintain pressure integrity at 3 AM in the middle of nowhere.

Here’s why major operators keep coming back to OTECO decade after decade: these fittings deliver predictable performance under unpredictable conditions. When everyone else is chasing lower prices, OTECO has been perfecting metallurgy, machining tolerances, and testing protocols that eliminate failure modes before they reach your rig.

“The question isn’t whether you can afford OTECO fittings. The question is whether you can afford not to use them when a single failure can cost more than your entire fitting budget for the year.”

Why These Specific Engineering Choices Prevent the Failures That Kill Your Schedule

Let’s talk about what makes these fittings different from the commoditized junk flooding the market. Because every single specification choice OTECO made serves one purpose: eliminating field failures that cost you real money.

Single Chucking on Horizontal Machining Centers: This isn’t manufacturing jargon — it’s the difference between fittings that leak and fittings that don’t. When a fitting is machined in multiple setups, each re-positioning introduces microscopic alignment errors. These errors create stress concentration points that become crack initiation sites under cyclic pressure loading.

OTECO machines each fitting in a single chucking operation. Every critical dimension is created in one uninterrupted process. This means perfect concentricity between bore and external threads, precise wall thickness consistency, and surface finishes that won’t trap contaminants or create corrosion cells.

The result? No leak paths. No stress risers. No premature failures. Your pressure integrity stays intact through thousands of cycles.

ASTM A216 Grade WCC and A487 Grade 4D Modified Castings: Here’s where the metallurgy gets serious. Most suppliers use whatever casting material gives them the lowest price. OTECO uses these specific grades because they’ve been proven in the field for decades.

Grade WCC provides exceptional toughness at moderate temperatures while maintaining excellent weldability. This matters when you need to modify connections in the field or repair adjacent components. The chemistry is precisely controlled for consistent mechanical properties — no surprises when stress levels peak.

For 7.5K applications, Grade 4D Modified delivers the strength you need without becoming brittle. This is critical because high-strength materials that crack under impact are worse than moderate-strength materials that bend. When a wrench gets dropped or thermal cycling creates stress, these castings absorb the energy instead of propagating cracks.

1.5X Hydrostatic Testing: Every fitting gets tested to 150% of working pressure before it leaves the factory. Not a sample from each batch — every single fitting. This isn’t just quality control; it’s stress-relief treatment that eliminates weak fittings before they reach your site.

The testing process reveals casting defects, machining issues, and material inconsistencies that could cause field failures. If a fitting is going to fail, OTECO wants it to happen in Houston, not on your drilling platform.

37.5° Weld Bevels Matching ANSI B36.10: This specification prevents the welding problems that create weak joints and rework delays. When O.D. and I.D. dimensions precisely match ANSI standards, your welders get consistent fit-up every time. No gaps to fill, no high-low conditions to grind out, no incomplete penetration from poor access.

Perfect weld preparation means full-strength joints that won’t leak or crack under pressure cycling. Your installation schedule stays on track because there’s no rework, no weld repairs, and no delays waiting for consumables to fix bad joints.

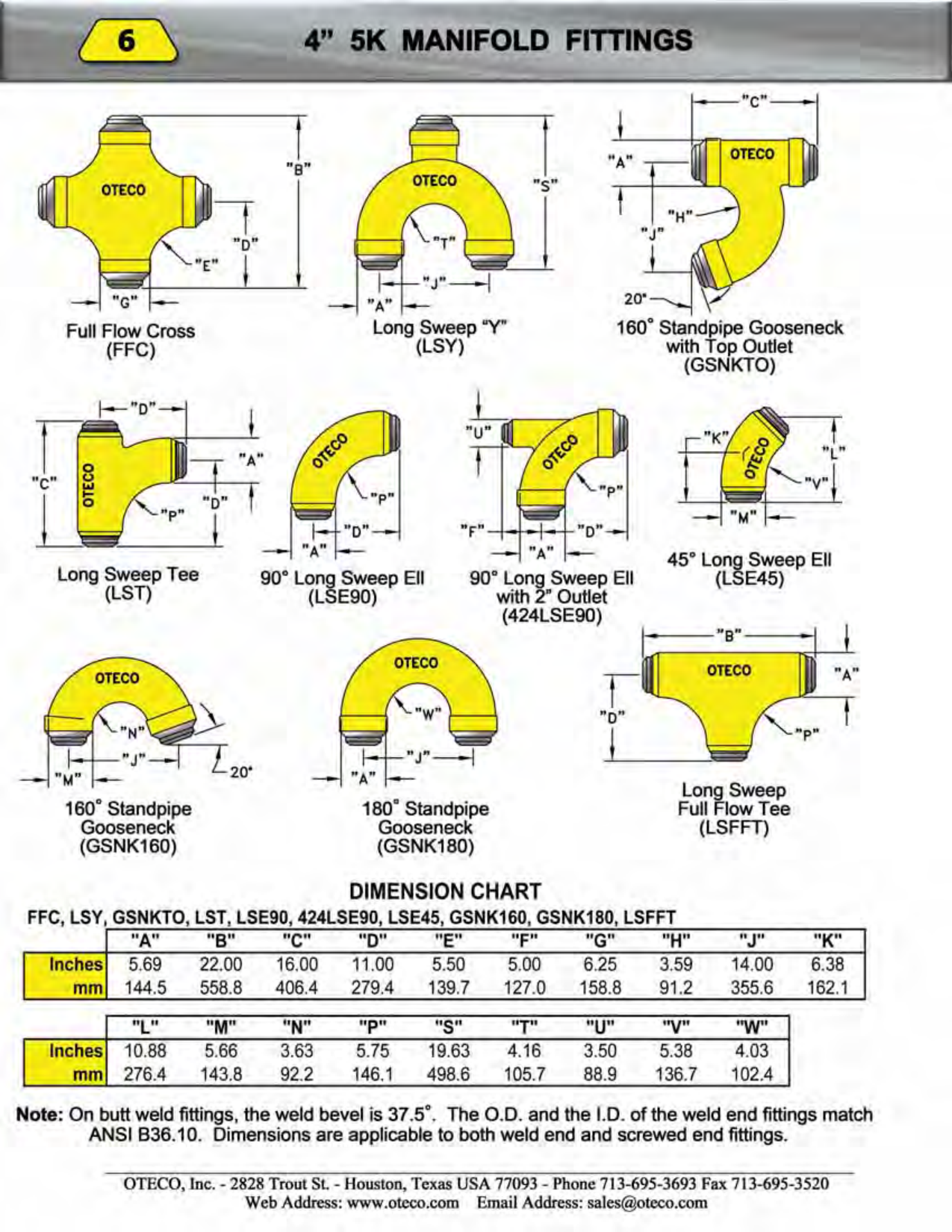

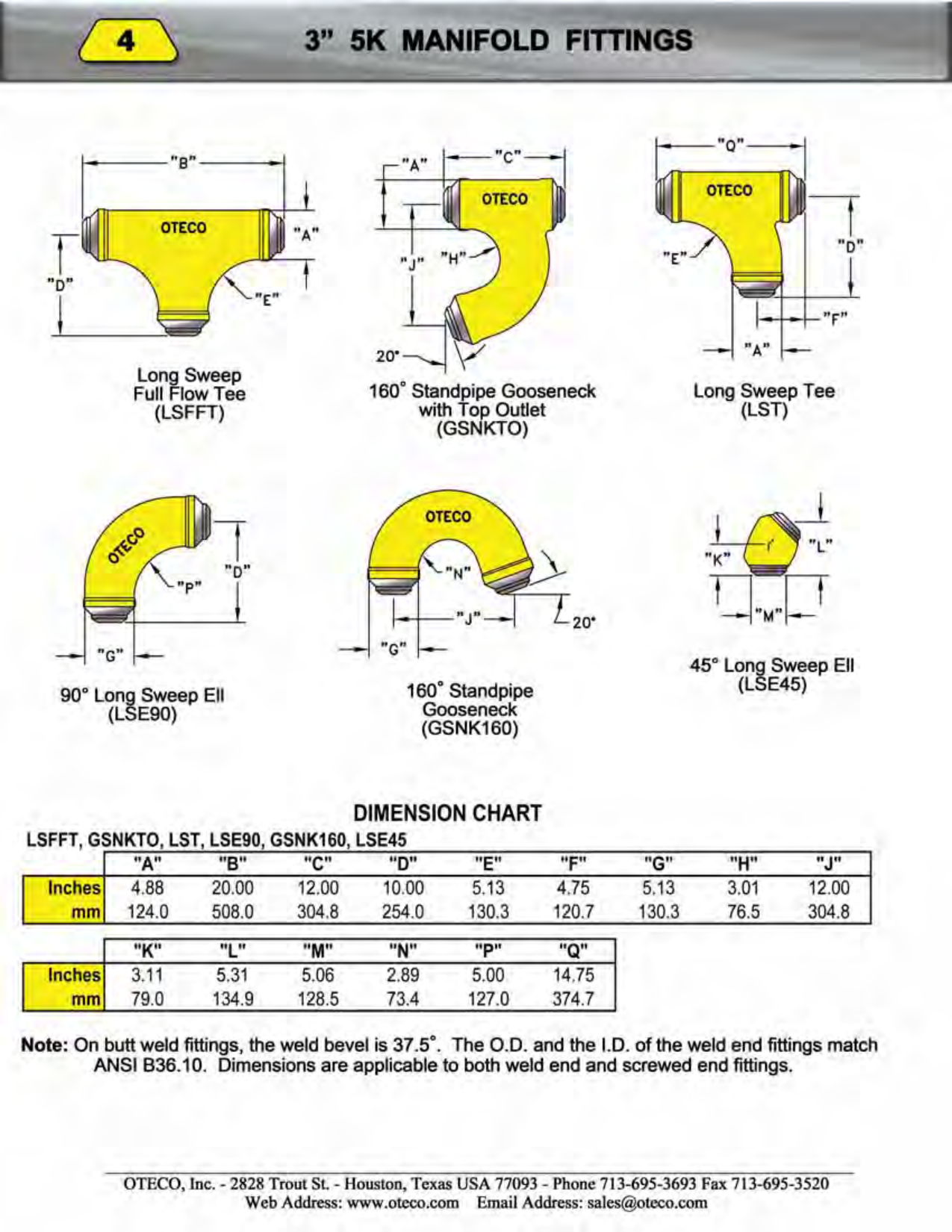

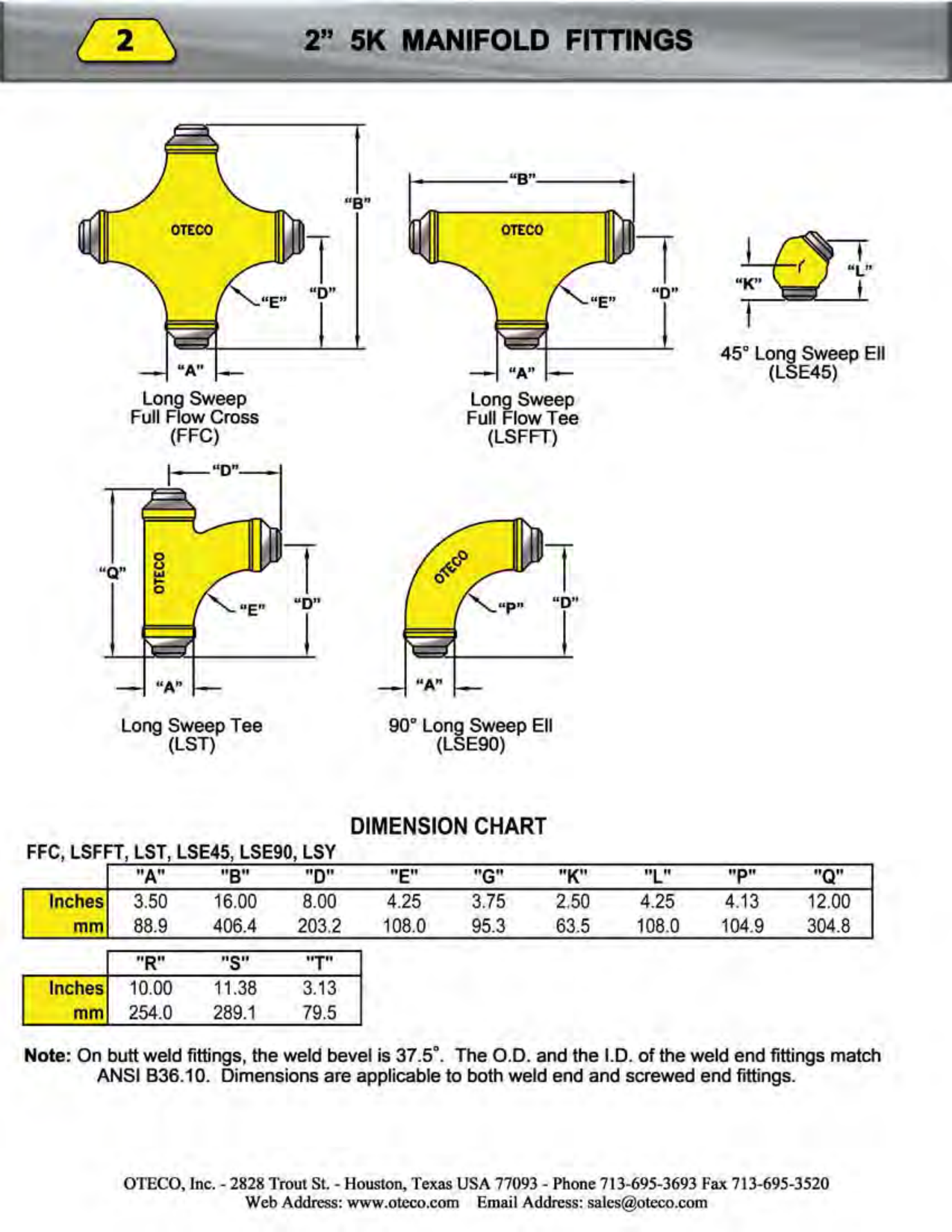

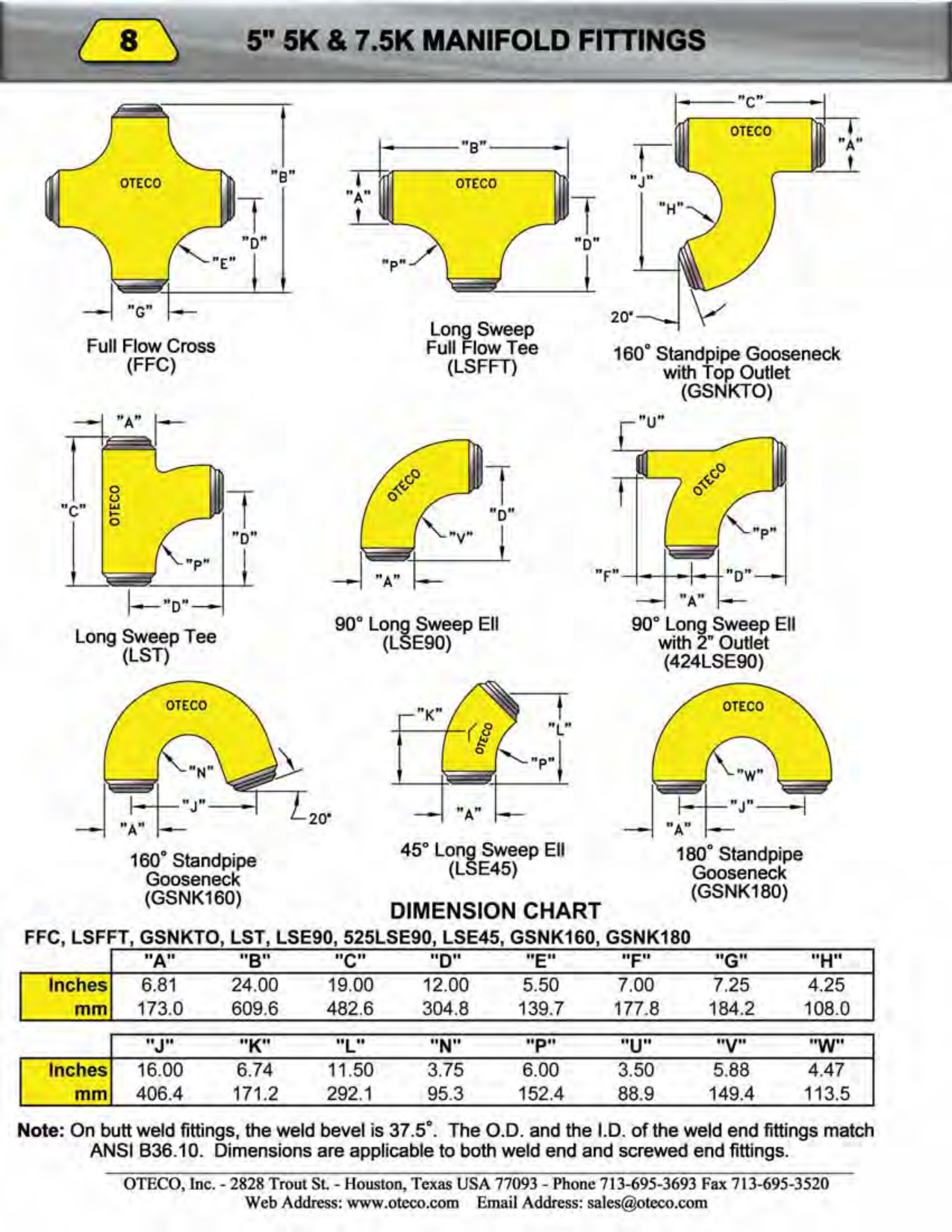

Available in 2″, 3″, 4″, and 5″ Sizes: This size range covers the critical flow paths in modern drilling operations. The 2″ and 3″ fittings handle auxiliary systems where reliability is crucial but space is tight. The 4″ and 5″ components carry main flow streams where pressure drop and turbulence can cost you significant production.

Each size is optimized for its specific application. Wall thicknesses provide adequate strength without creating excessive weight. Flow transitions are smooth to minimize pressure drop and erosion. You get exactly the performance you need without paying for over-engineering you don’t need.

Multiple Fitting Configurations: Full Flow Cross (FFC), Long Sweep Tee (LST), Long Sweep Full Flow Tee (LSFFT), Long Sweep Ell 45° & 90° (LSE45/LSE90), Long Sweep “Y” (LSY), and Standpipe Gooseneck 160° & 180° (GSNK160/GSNK180) configurations give you the design flexibility to optimize your manifold layout.

Long sweep designs minimize pressure drop and reduce erosion in high-velocity applications. Full flow configurations eliminate restrictions that cause turbulence and efficiency losses. When your manifold design is optimized with proper fittings, you maintain maximum flow rates with minimum pumping energy.

Where These Fittings Prove Their Worth Every Day

You’ll find OTECO manifold fittings in the most demanding drilling operations worldwide. From deepwater platforms in the North Sea to unconventional wells in the Permian Basin, these components deliver reliable performance when everything else depends on their integrity.

Choke and kill manifolds rely on these fittings to maintain pressure control during critical operations. Oteco Rig Hardware includes standpipe manifolds where flow interruption can compromise wellbore stability. Mud pump discharge systems depend on these components to handle pressure spikes and flow reversals without failure.

The complete technical specifications and engineering data are available in the Oteco Manifold Fittings Product Brochure, which provides detailed pressure ratings, material certifications, and dimensional data for every configuration.

For operations requiring additional valve components, the OTECO Model 72 Gate Valve provides compatible pressure ratings and end connections that integrate seamlessly with these manifold fittings. When sourcing legacy equipment, the Obsolete & Rare Parts Catalog often includes OTECO components for older installations requiring exact replacements.

Your Next Move When Reliability Can’t Be Compromised

The mathematics are simple: one prevented failure pays for an entire manifold’s worth of premium fittings. When you’re specifying components for critical pressure service, the cost difference between proven performance and “equivalent” alternatives disappears in the first few months of operation.

OTECO has been manufacturing these fittings in Houston for over six decades because major operators understand this equation. When your drilling schedule, budget, and reputation depend on pressure integrity, you specify components with documented field performance.

Your manifold system is only as reliable as its weakest component. Don’t let a substandard fitting become the failure point that shuts down your operation and destroys your schedule. Specify OTECO manifold fittings and sleep well knowing your pressure systems will perform when it matters most.

Technical Specifications
