| Bar Type Cups | ||||
| Part Number | Tubing O.D. | Tubing Weight | Tool Size | Durometer |
| 150BT-2.90* | 1.900” | 2.90 | 1” | 90 |
| 216BT-3.25* | 2-1/16” | 3.25-3.4 | ||
| 238BT-0770* | 2-3/8” | 4.6-4.7 | 3/4” | 70 |
| 238BT-0790* | 90 | |||
| 238BT-0870* | 7/8” | 70 | ||
| 238BT-0890 | 90 | |||
| 238BT-1070* | 1-1/16” | 70 | ||
| 238BT-1080* | 80 | |||
| 238BT-1090 | 90 | |||
| 238BT-1091* | 90 | |||
| 238BT-1270 | 1-1/4” | 70 | ||
| 238BT-1280 | 80 | |||
| 238BT-1290 | 90 | |||
| 238BT-1291* | 90 | |||
| 238BT-5.95* | 5.95 | 90 | ||
| 238BT-5.95-70 | 70 | |||
| 278BT-1070* | 2-7/8” | 6.4-6.5 | 1-1/16” | 70 |
| 278BT-1090 | 90 | |||
| 278BT-1270* | 1-1/4” | 70 | ||
| 278BT-1280* | 80 | |||
| 278BT-1290* | 90 | |||
| 278BT-1291* | 90 | |||
| 278BT-1370* | 1-5/16” | 70 | ||
| 278BT-1380* | 80 | |||
| 278BT-1390 | 90 | |||
| 278BT-1391 | ||||
| 278BT-1570* | 1-1/2” | 70 | ||
| 278BT-1580* | 80 | |||
| 278BT-1590 | 90 | |||
| 278BT-1670 | 1.600” | 70 | ||
| 278BT-1680* | 80 | |||
| 278BT-1690 | 90 | |||
| 278BT-1691* | 90 | |||
| 278BT-7.90* | 7.90 | 90 | ||
| 278BT-7.90-80 | 80 | |||
| 278BT-8.70* | 8.70 | 70 | ||
| 278BT-8.70-70 | ||||
| 350BT-1270* | 3-1/2” | 9.2-9.3 | 1-1/4” | 70 |
| 350BT-1290* | 90 | |||
| 350BT-1670* | 1.600” | 70 | ||
| 350BT-1680* | 80 | |||
| 350BT-1690* | 90 | |||
| 350BT-1870* | 1.875” | 70 | ||
| 350BT-1880* | 80 | |||
| 350BT-1890* | 90 | |||
| 350BT-2070* | 2.000” | 70 | ||
| 350BT-2080* | 80 | |||
| 350BT-2090* | 90 | |||
| 350BT-10.3* | 10.3 | 1.855” | ||
| 350BT-12.95 | 12.95 | |||
| 350BT-12.95-1670 | 1.600” | 70 | ||
| 350BT-12.95-1690 | 90 | |||
| 450BT-2870 | 4-1/2” | 9.5-11.6 | 2.875” | 70 |
| 450BT-2880 | 80 | |||
| 450BT-2890 | 90 | |||
| *Available by special order. | ||||

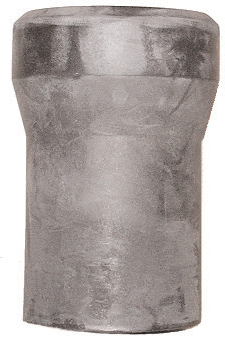

Drag Type
The standard drag-type test cup is constructed of a 70 durometer upper section with a 90 durometer lower section for greater strength.
The two compounds are bonded to a steel sleeve and base to form a rugged, long lasting test cup.
Bar Type
Bar-type tubing test cups are available for six tubing sizes, various tool sizes and in 70, 80 and 90 durometer nitrite rubber compounds. A 90 durometer natural rubber compound is also available for all-weather operation. Field tests have repeatedly proven the heavy-duty capabilities of this cup.
| Drag Type Cups | ||
| Part Number | Tubing O.D. | Tool Size |
| 0175* | 2-1/16” | 5/8” |
| 20-MT | 2-3/8” | 7/8” |
| 20-MTS | 2-3/8” Hydril | 7/8” |
| 25-TC | 2-7/8” | 1-1/16” |
| 30-TC | 3-1/2” | 1-1/4” |
| Water Saver Cups | ||
| Part Number | Tubing O.D. | Cup I.D. |
| 20-WS | 2-3/8” | 11/16” |
| 25-WS | 2-7/8” | |
| 30-WS | 3-1/2” | |
| 20-WS-60 | 2-3/8” | |
| 25-WS-60 | 2-7/8” | |
| 30-WS-60 | 3-1/2” | |
PE Energy is an authorized Oil States Industries distributor offering the full range of Oil States Industries products. Contact us for a custom quote.
See all Oil States products.
