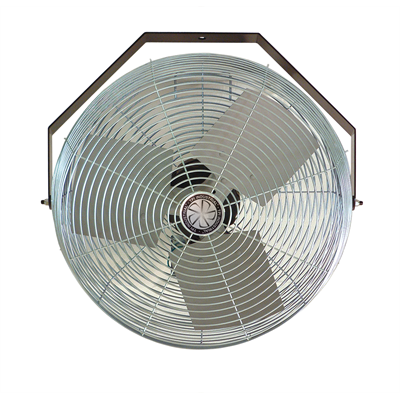

TPI U-TE-HD Series Outdoor Rated Yoke Fan

TPI U-TE-HD Series Outdoor Rated Yoke Fan
  • Pull chain switch
  • Head rotates 360° vertically and horizontally
  • Coated steel guards
  • SJT type 3 conductor, 10’ long cord
  • Steel hub/spider aluminum paddle blades
  • Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface.
  • Meets OSHA standards / 1 Year limited warranty
  • CFM measured 2 feet from face of fan
  • Imported to TPI specifications
  • Can be used in outdoor semi-protected applications.
  • California residents see Prop 65 Warnings

Fan Without Mounting Arm

Catalog Number

Model Number

Fan Style Type

Blade Size

Blade Material

Weight (lbs)

07972802

U-18-TE

Direct Drive

18

Aluminum

20

07986002

U-12-TE

Direct Drive

12

Aluminum

13

08540702

U-24-TE

Direct Drive

24

Aluminum

23

08775502

U-24-TE-HV

Direct Drive

24

Aluminum

25

Fan With Mounting Arm

Catalog Number

Model Number

Fan Style Type

Blade Size

Blade Material

Weight (lbs)

08216102

U-12-TE-W

Direct Drive

12

Aluminum

20

08216202

U-18-TE-W

Direct Drive

18

Aluminum

20

PE Energy is an authorized TPI Corporation distributor. Contact us for a custom quote.
