TPI 3450SD Series Setback On Demand Heavy-Duty Fan Forced Wall Heaters

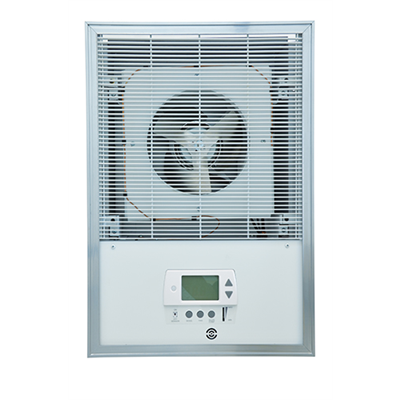

TPI 3450SD Series Setback On Demand Heavy-Duty Fan Forced Wall Heaters white

Heavy duty architectural style
Automatic fan purge circuit
Manual reset thermal limit switch
Powder coated bar stock grill with extruded Aluminum frame and 16 gauge housing
Set desired comfort level and set-back level up to 12°F
The thermostat learns your schedule based on detected movement and returns the area to the desired temperature using two stage operation. If the thermostat does not detect movement within one hour, setback occurs to the preset level
Occupancy sensor defaults to economy mode after one hour, sensor has a 94 degree angular range and a 16’ linear range
Tamper proof grill covers the thermostat.
Corrosion resistant steel tubular element with brazed steel fins
Permanently lubricated, unit bearing, shaded pole motor with impedance protection
Factory preset to correct operating system voltage of heater
Propeller type fan blade: 1400 RPM motor; 245 CFM
Wall box included with heater
Available in white, consult factory
ROUGH-IN DIMENSIONS: 23 1/16” H x 14 1/4” W x 4 1/4” D GRILL DIMENSIONS: 25 1/32” H x 17 7/16” W
Made in USA
California residents see Prop 65 Warnings

Catalog Number	Model Number	Wattage	BTU	Voltage	Weight (lbs)
03985102	F3452SD	2000	6826	208	55
03985202	H3452SD	2000	6826	240	55
03985302	G3452SD	2000	6826	277	55
03985402	J3452SD	2000	6826	208	55
03985502	K3452SD	2000	6826	240	55
03985602	F3453SD	3000	10239	208	55
03985702	H3453SD	3000	10239	240	55
03985802	G3453SD	3000	10239	277	55
03985902	J3453SD	3000	10239	208	55
03986002	K3453SD	3000	10239	240	55
03986102	F3454SD	4000	13652	208	55
03986202	H3454SD	4000	13652	240	55
03986302	G3454SD	4000	13652	277	55
03986402	J3454SD	4000	13652	208	55
03986502	K3454SD	4000	13652	240	55
03986602	F3455SD	5000	17065	208	55
03986702	H3455SD	5000	17065	240	55
03986802	G3455SD	5000	17065	277	55
03986902	J3455SD	5000	17065	208	55
03987002	K3455SD	5000	17065	240	55

PE Energy is an authorized TPI Corporation distributor. Contact us for a custom quote.
