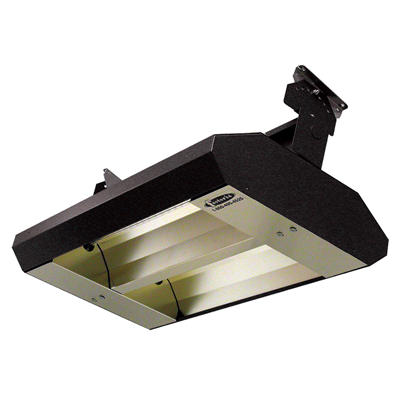

TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater

TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater details

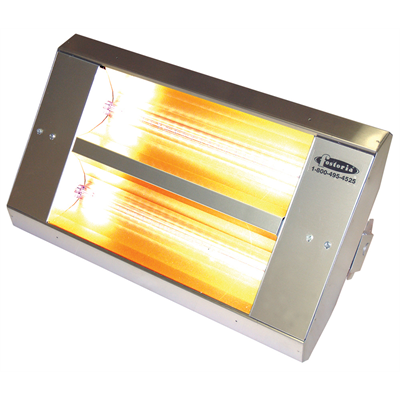

TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater lights on

TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater side view

AVAILABLE IN 2 OR 3 LAMP BANKERS BRONZE OR STAINLESS STEEL FINISH

Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications

Listed for recessed applications

20 gauge powder coated steel or stainless steel housings

Gold anodized Aluminum reflectors & end caps

50% higher wattage densities for 3-element units

2-Lamp wiring, single phase

3-Lamp wiring, three or single phase

Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments

High temperature lead wires

Clear 12mm diameter Quartz Lamp(s) Included

Elements provide a bright light, generating 8-lumens per watt

Made in U.S.A.

California residents see Prop 65 Warnings

TH Series Standard Models (Bankers Bronze Powdercoat)

Catalog Number	Model Number	KW	BTU	Voltage	Weight (lbs)
04432902	222-90-TH-208V	3.2	10922	208	20
04441602	222-30-TH-208V	3.2	10922	208	20
04441702	222-30-TH-240V	3.2	10922	240	20
04441802	222-30-TH-277V	3.2	10922	277	20
04441902	222-A30-TH-208V	3.2	10922	208	20
04442002	222-A30-TH-240V	3.2	10922	240	20
04442102	222-A30-TH-277V	3.2	10922	277	20
04442202	222-60-TH-208V	3.2	10922	208	20
04442302	222-60-TH-240V	3.2	10922	240	20
04442402	222-60-TH-277V	3.2	10922	277	20
04442502	222-A60-TH-208V	3.2	10922	208	20
04442602	222-A60-TH-240V	3.2	10922	240	20
04442702	222-A60-TH-277V	3.2	10922	277	20
04442802	222-90-TH-240V	3.2	10922	240	20
04442902	222-90-TH-277V	3.2	10922	277	20
04443102	342-A30-TH-480V	5.0	17065	480	25
04443302	342-A60-TH-480V	5.0	17065	480	25
04443602	462-A30-TH-480V	7.3	24915	480	32
04443802	462-A60-TH-480V	7.3	24915	480	32
04810802	342-30-TH-208V	5.0	17065	Cell	25
04810902	342-30-TH-240V	5.0	17065	240	25
04811102	342-60-TH-208V	5.0	17065	208	25
04811202	342-60-TH-240V	5.0	17065	240	25
04811402	342-90-TH-208V	5.0	17065	208	25
04811502	342-90-TH-240V	5.0	17065	240	25
04811702	342-A30-TH-208V	5.0	17065	208	25
04811802	342-A30-TH-240V	5.0	17065	240	25
04812002	342-A60-TH-208V	5.0	17065	208	25
04812102	342-A60-TH-240V	5.0	17065	240	25
04813802	222-30-TH-480V	3.2	10922	480	20
04813902	222-60-TH-480V	3.2	10922	480	20
04814002	222-90-TH-480V	3.2	10922	480	20
04814102	222-A30-TH-480V	3.2	10922	480	20
04814202	222-A60-TH-480V	3.2	10922	480	20
04874802	223-30-TH-208V	4.8	16382	208	25
04874902	223-30-TH-240V	4.8	16382	240	25
04875002	223-30-TH-277V	4.8	16382	277	25
04875102	223-30-TH-480V	4.8	16382	480	25
04875202	223-60-TH-208V	4.8	16382	208	25
04875302	223-60-TH-240V	4.8	16382	240	25
04875402	223-60-TH-277V	4.8	16382	277	25
04875502	223-60-TH-480V	4.8	16382	480	25
04875602	223-90-TH-208V	4.8	16382	208	25
04875702	223-90-TH-240V	4.8	16382	240	25
04875802	223-90-TH-277V	4.8	16382	277	25
04875902	223-90-TH-480V	4.8	16382	480	25
04876002	343-30-TH-208V	7.5	25298	208	33
04876102	343-30-TH-240V	7.5	25298	240	33
04876202	343-30-TH-480V	7.5	25298	480	33
04876302	343-60-TH-208V	7.5	25298	208	33
04876402	343-60-TH-240V	7.5	25298	240	33
04876502	343-60-TH-480V	7.5	25298	480	33
04876602	343-90-TH-208V	7.5	25298	208	33
04876702	343-90-TH-240V	7.5	25298	240	33
04876802	343-90-TH-480V	7.5	25298	480	33
04876902	463-30-TH-480V	10.95	37372	480	41
04877002	463-60-TH-480V	10.95	37372	480	41
04877102	463-90-TH-480V	10.95	37372	480	41
88026143	342-30-TH-480V	5.0	17065	480	25
88027143	462-30-TH-480V	7.3	24915	480	32
88029143	342-60-TH-480V	5.0	17065	480	25
88030143	462-60-TH-480V	7.3	24915	480	32
88032144	342-90-TH-480V	5.0	17065	480	25
88033144	462-90-TH-480V	7.3	24915	480	32

THSS Series Standard Models (Stainless Steel)

Catalog Number	Model Number	KW	BTU	Voltage	Weight (lbs)
04432802	223-60-THSS-208V	4.8	16382	208	25
04436702	223-30-THSS-208V	4.8	16382	208	25
04436802	223-30-THSS-240V	4.8	16382	240	25
04436902	223-30-THSS-277V	4.8	16382	277	25
04437302	223-60-THSS-240V	4.8	16382	240	25
04437402	223-60-THSS-277V	4.8	16382	277	25
04437802	223-90-THSS-208V	4.8	16382	208	25
04437902	223-90-THSS-240V	4.8	16382	240	25
04438002	223-90-THSS-277V	4.8	16382	277	25
04444002	222-30-THSS-208V	3.2	10922	208	20
04444102	222-30-THSS-240V	3.2	10922	240	20
04444202	222-30-THSS-277V	3.2	10922	277	20
04444302	222-A30-THSS-208V	3.2	10922	208	20
04444402	222-A30-THSS-240V	3.2	10922	240	20
04444502	222-A30-THSS-277V	3.2	10922	277	20
04444602	222-60-THSS-208V	3.2	10922	208	20
04444702	222-60-THSS-240V	3.2	10922	240	20
04444802	222-60-THSS-277V	3.2	10922	277	20
04444902	222-A60-THSS-208V	3.2	10922	208	20
04445002	222-A60-THSS-240V	3.2	10922	240	20
04445102	222-A60-THSS-277V	3.2	10922	277	20
04445202	222-90-THSS-208V	3.2	10922	208	20
04445302	222-90-THSS-240V	3.2	10922	240	20
04445402	222-90-THSS-277V	3.2	10922	277	20
04445602	342-A30-THSS-480V	5.0	17065	480	25
04445802	342-A60-THSS-480V	5.0	17065	480	25
04446102	462-A30-THSS-480V	7.3	24915	480	32
04446302	462-A60-THSS-480V	7.3	24915	480	32
04809302	342-30-THSS-208V	5.0	17065	208	25
04809402	342-30-THSS-240V	5.0	17065	240	25
04809702	342-60-THSS-240V	5.0	17065	240	25
04809902	342-90-THSS-208V	5.0	17065	208	25
04810002	342-90-THSS-240V	5.0	17065	240	25
04810202	342-A30-THSS-208V	5.0	17065	208	25
04810302	342-A30-THSS-240V	5.0	17065	240	25
04810502	342-A60-THSS-208V	5.0	17065	208	25
04810602	342-A60-THSS-240V	5.0	17065	240	25
04812302	343-30-THSS-208V	7.5	25298	208	33
04812402	343-30-THSS-240V	7.5	25298	240	33
04812602	343-60-THSS-208V	7.5	25298	208	33
04812702	343-60-THSS-240V	7.5	25298	240	33
04812902	343-90-THSS-208V	7.5	25298	208	33
04813002	343-90-THSS-240V	7.5	25298	240	33
04814302	222-30-THSS-480V	3.2	10922	480	20
04814402	222-60-THSS-480V	3.2	10922	480	20
04814502	222-90-THSS-480V	3.2	10922	480	20
04814602	222-A30-THSS-480V	3.2	10922	480	20
04814702	222-A60-THSS-480V	3.2	10922	480	20
04815802	223-30-THSS-480V	4.8	16382	480	25
04815902	223-60-THSS-480V	4.8	16382	480	25
04816002	223-90-THSS-480V	4.8	16382	480	25
88026394	342-30-THSS-480V	5.0	17065	480	25
88027393	462-30-THSS-480V	7.3	24915	480	32
88029394	342-60-THSS-480V	5.0	17065	480	25
88030393	462-60-THSS-480V	7.3	24915	480	32
88032394	342-90-THSS-480V	5.0	17065	480	25
88033394	462-90-THSS-480V	7.3	24915	480	32
88105394	463-30-THSS-480V	10.95	37372	480	41
88107394	463-60-THSS-480V	10.95	37372	480	41
88109394	463-90-THSS-480V	10.95	37372	480	41
88114394	343-30-THSS-480V	7.5	25298	480	33
88116394	343-60-THSS-480V	7.5	25298	480	33
88118394	343-90-THSS-480V	7.5	25298	480	33

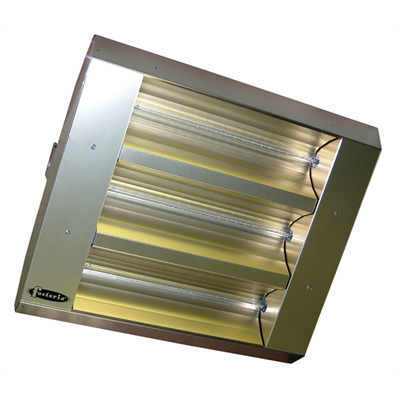

3-Lamp Mul-T-Mount Series – With (3) Clear 12mm Quartz Lamps Included

600-Volt Models also available

Asymmetrical pattern units are also available for 30° & 60°

Made in U.S.A.
