Keystone Tong Dies

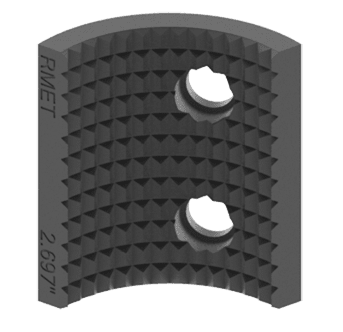

Dies for Tubing Tongs

Keystone Energy Tools inserts and dies are manufactured from quality materials and precision-machined to exacting tolerances. These inserts and dies are heat-treated to industry standards to provide the best wear and resistance for the harshest of environments. The inner ductile core minimizes the shock of impact and torque.

Part No.	Description	# Set	WT.
A04-119	K-20 – 3/4″ (1.050″)	3	1.13
A04-120	K-20 – 1″ (1.315″)	3	1.07
A04-121	K-20 – 1-1/4″ (1.660″)	3	.94
A04-122	K-20 – 1-1/2″ (1.900″)	3	.75
A04-123	K-20 – 2-1/16″	3	.63
A04-124	K-20 – 2-3/8″	3	.41
A05-129	K-25 – 3/4″ (1.050″)	3	1.75
A05-120	K-25 – 1″ (1.315″)	3	1.63
A05-121	K-25 – 1-1/4″ (1.660″)	3	1.50
A05-122	K-25 – 1-1/2″ (1.900″)	3	1.32
A05-123	K-25 – 2-1/16″	3	1.30
A05-124	K-25 – 2-3/8″	3	1.25
A05-125	K-25 – 2-1/2″	3	.95
A05-126	K-25 – 2.697″	3	.63
A05-127	K-25 – 2.776″	3	.55
A05-128	K-25 – 2-7/8″	3	.58
A06-133	K-30 – 1-1/4″ (1.660″)	3	5.00
A06-134	K-30 – 1-1/2″ (1.900″)	3	4.60
A06-119	K-30 – 2-1/16″	3	4.10
A06-120	K-30 – 2-3/8″	3	3.80
A06-121	K-30 – 2-7/8″	3	3.10
A06-135	K-30 – 3″	3	3.00
A06-122	K-30 – 3-1/16″	3	2.80
A06-123	K-30 – 3-1/8″	3	2.75
A06-124	K-30 – 3-1/4″	3	2.50
A06-130	K-30 – 3-3/8″	3	2.40
A06-125	K-30 – 3-1/2″	3	2.10
A06-126	K-30 – 3.668″	3	1.70
A06-127	K-30 – 3-3/4″	3	1.50
A06-131	K-30 – 3-7/8″	3	1.40
A06-573	K-50 & K-50HT – 2 3/8″	3	7.50
A06-575	K-50 & K-50HT – 2-7/8″	3	6.33
A06-576	K-50 & K-50HT – 3-1/2″	3	5.33
A06-577	K-50 & K-50HT – 3-3/4″	3	4.74
A06-578	K-50 & K-50HT – 4″	3	4.15
A06-579	K-50 & K-50HT – 4 1/8″	3	4.05
A06-580	K-50 & K-50HT – 4-1/2″	3	3.50
A06-581	K-50 & K-50HT – 4-3/4″	3	2.92
A06-582	K-50 & K-50HT – 5″	3	2.33
A06-773	K-70 – 2-7/8″	3	14.50
A06-758	K-70 – 3 1/2″	3	13.25
A06-757	K-70 – 4″	3	12.00
A06-756	K-70 – 4 1/2″	3	10.50
A06-755	K-70 – 4 3/4″	3	10.25
A06-754	K-70 – 5″	3	9.50
A06-753	K-70 – 5 1/2″	3	8.00
A06-759	K-70 – 5 3/4″	3	7.25
A06-752	K-70 – 6″	3	6.25
A06-751	K-70 – 6 5/8″	3	4.75

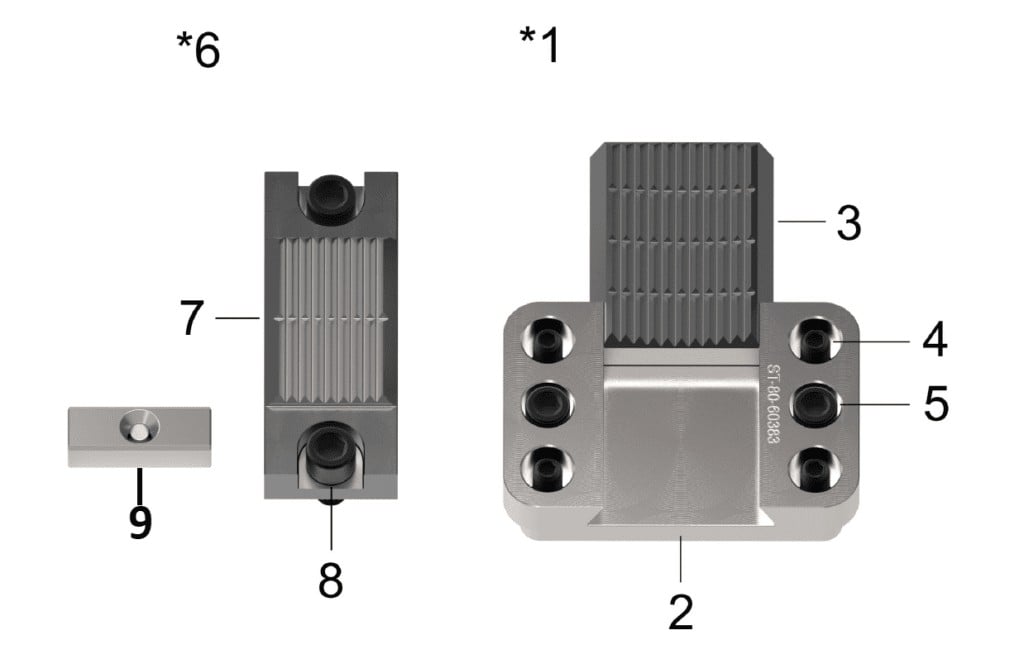

ST-80 Iron Roughneck Dies & Die Holders

Part No.		Description	Ref#	WT.
AST-80-LD-ASSY	*1	ST-80 DIE HOLDER ASSEMBLY WITH BOLTS	30172029	7.16
AST-80-HOL	2	ST-80 LOWER DIE HOLDER ONLY	30160383	7.16
AST-80-LD	3	ST-80 LOWER DIE EACH (NOTE: IT TAKES 2 PER SET)	30160382	2.19
AST-80-LD CSH	4	ST-80 LOWER DIE HOLDER CORNER SOCKET HEAD SCREW	50708-12-OC
AST-80-LD MSH	5	ST-80 LOWER DIE HOLDER MIDDLE SOCKET HEAD SCREW	50108-14-C
AST-80-UD-SET	*6	ST-80 UPPER DIE KIT W/2 DIES, BOLTS, & SOCKETS	3017422	6.02
AST-80-US	7	ST-80 UPPER DIE EACH (NOTE: IT TAKS 2 PER SET)	30160380-500	2.96
AST-U-B	8	ST-80 UPPER DIE BOLT ONLY	55109-8-C	.87

Iron Roughneck Tong Dies

Part No.	Description	WT.
AST-80LD-Set	ST-LOWER DIE SET W/BOLTS AND SOCKETS	6.00
AST-80UD-SET	ST-80 UPPER DIE SET W/BOLTS AND SOCKET	7.00
AC01-01-03	MODEL 3080 IRON ROUGHNECK DIE	2.25

Power Tong Dies

Part No.	Description	WT.
A27494-1	2 3/8″ x 2 3/8″ POWER TONG DIE	1.06
A27498-1	2 7/8″ x 2 7/8″ POWER TONG DIE	1.06
A75-2327	2 7/8″ x 2 3/8″ POWER TONG REDUCER DIE	1.62

Drill Pipe Tong Dies

Part No.	Description	WT.
T6472	3/8″ x 5/8″ x 1 15/16″ TONG DIE	.10
T061624	3/8″ x 1″ x 2 1/2″ TONG DIE	.21
T6473	3/8″ x 1″ x 3 7/8″ TONG DIE	.32

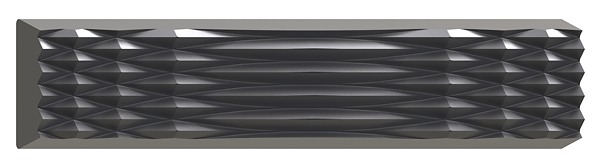

T6473-8D	3/8″ x 1″ x 3 7/8″ BLUE DIAMOND TONG DIE	.32
T4321	3/8″ x 1″ x 4 1/4″ TONG DIE	.35
T4516	3/8″ x 1″ x 5 3/4″ TONG DIE	.47
T1614	3/8″ x 1 1/4″ x 3 7/8″ TONG DIE	.39
T76 51250	3/8″ x 1 1/4″ x 5″ TONG DIE	.50
T1612	7/16″ x 1 1/4″ x 3 7/8″ TONG DIE	.46
T1612-BD	7/16″ x 1 1/4″ x 3 7/8″ BLUE DIAMOND TONG DIE	.46
T24768-3	1/2″ x 1 1/4″ x 3 1/2″ TONG DIE	.50
T6485	1/2″ x 1″ x 3 7/8″ TONG DIE	.50
T24768-2	1/2″ x 1 1/4″ x 3 7/8″ TONG DIE	.54
T24678 6	1/2″ x 1 1/4″ x 3 7/8″ BLUE DIAMOND TONG DIE	.54
T16401-2	1/2″ x 1 1/4″ x 5″ TONG DIE	.69
T16401-6	1/2″ x 1 1/4″ x 5″ BLUE DIAMOND TONG DIE	.69
T16402-2	1/2″ x 1 1/4″ x 5 7/8″ TONG DIE	.82
T16402-6	1/2″ x 1 1/4″ x 5 7/8″ BLUE DIAMOND TONG DIE	.82
T16-22	9/16″ x 1 1/4″ x 3 7/8″ TONG DIE	.61
T76-51235	9/16″ x 1 1/4″ x 5″ TONG DIE	.78
T102037	5/8″ x 1 1/4″ x 3 7/8″ TONG DIE	.68
T102050	5/8″ x 1 1/4″ x 5″ TONG DIE	.87
T76-51257	5/8″ x 1 1/4″ x 5 7/8″ TONG DIE	1.02
T1161255	11/16″ x 1 1/4″ x 5″ TONG DIE	.96
T6416446	11/16″ x 1 1/4″ x 5 7/8″ TONG DIE	1.13
T122034	3/4″ x 1 1/4″ x 3 1/2″ TONG DIE	.75
T122037	3/4″ x 1 1/4″ x 3 7/8″ TONG DIE	.81
T76-61250	3/4″ x 1 1/4″ x 5″ TONG DIE	1.05
T76-61257	3/4″ x 1 1/4″ x 5 7/8″ TONG DIE	1.23
T132037	13/16″ x 1 1/4″ x 3 7/8″ TONG DIE	.88
T142037	7/8″ x 1 1/4″ x 3 7/8″ TONG DIE	.95
T142050	7/8″ x 1 1/4″ x 5″ TONG DIE	1.23
T142057	7/8″ x 1 1/4″ x 5 7/8″ TONG DIE	1.45
T162037	1″ x 1 1/4″ x 3 7/8″ TONG DIE	1.25
T162050	1″ x 1 1/4″ x 5″ TONG DIE	1.61
T162057	1″ x 1 1/4″ x 5 7/8″ TONG DIE	1.80
