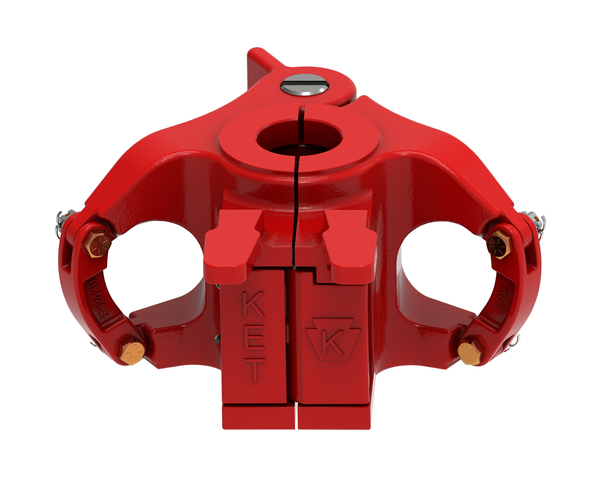

Keystone A Series are Square Shoulder Elevators. These are designed to handle tubing and casing. They can also be used for collar-type drill pipe. There are two types of elevators, TMA 100-ton, and MRA 175-ton and cover pipe sizes 2 3/8” – 5 1/2”.

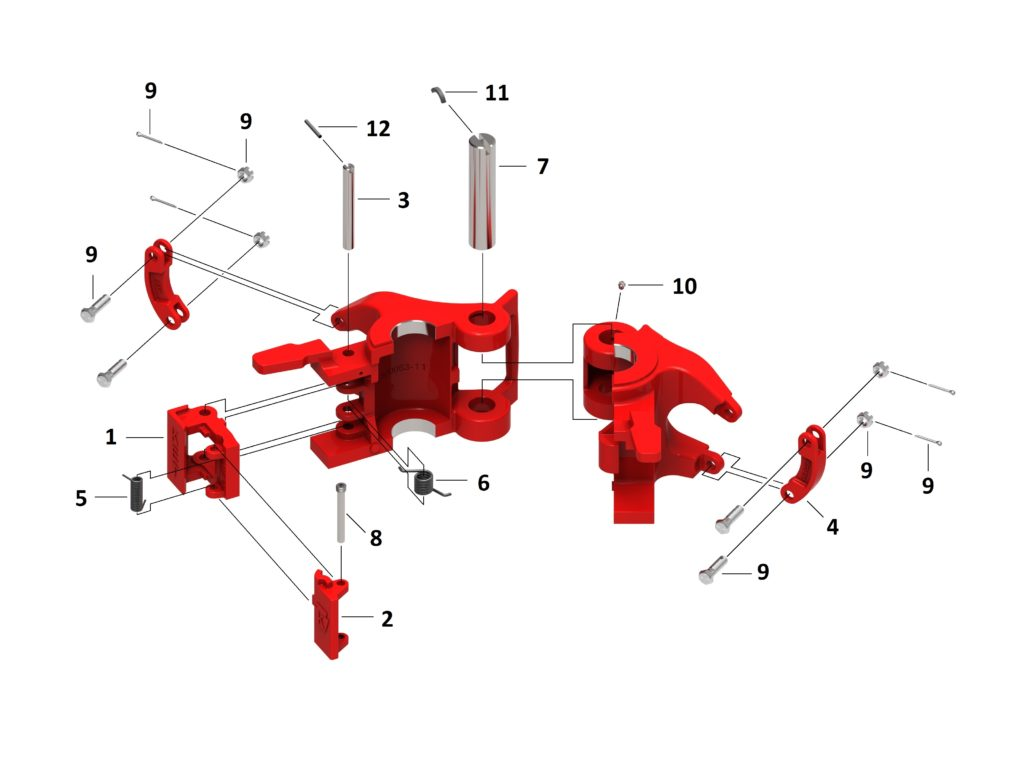

TMA (100 Ton) Square Shoulder
Part No
Range
Size of Links
Weight
E500063
2-3/8″-5″
1-3/4″-2-3/4″
132.00
Part #
QTY
Item
Description
Spares
Weight
1
1
LATCH
6.36
E32381-1
1
2
LATCH LOCK
2.38
E32424-1
1
3
LATCH PIN
0.78
E32430
2
4
LINK BLOCK
2.25
E32758
1
5
LATCH LOCK SPRING
2
.125
E32760
1
6
LATCH SPRING
2
.180
E32916
1
7
HING PIN
5.48
E36208
1
8
LATCH LOCK PIN
1
.240
E939099-65-2
4
9
LINK BLOCK BOLT, NUT, AND COTTER
4
0.12
E940308-1
1
10
GREASE FITTING
2
0.02
E32916-R
1
11
HING PIN RETAINER
2
0.12
E32424-1-R
1
12
LATCH PIN RETAINER
2
0.12
1 YEAR SPARES, FOR 2 YEAR SPARES ADD 1 EA. OF * THESE ITEMS

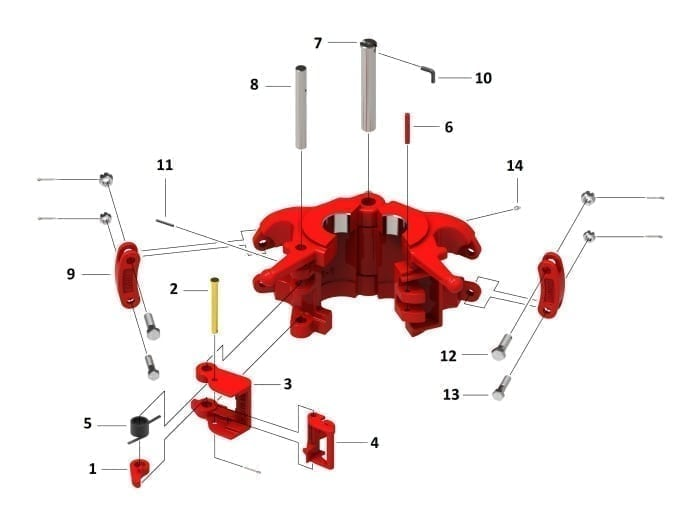

MRA (175 Ton) Square Shoulder
Part No
Range
Size of Links
Weight
E30158
2-7/8″ – 5-1/2″
1-3/4″-2-3/4″
210.00
Part #
QTY
Item
Description
Spares
Weight
E11581
1
1
LATCH CAM
1
.12
E11759
1
2
LATCH LOCK PIN
1
2.09
E11763
1
3
LATCH
9.04
E11764
1
4
LATCH LOCK
*
3.00
E11766
1
5
LATCH SPRING
2
.05
E12529
1
6
LATCH LUG PIN
.03
E26813
1
7
HINGE PIN
*
4.09
E26814
1
8
LATCH PIN
*
2.09
E26817
1
9
LINK BLOCK
3.08
E29464
1
10
HINGE PIN RETAINER
2
.12
E8156
1
11
LATCH PIN RETAINER
2
.12
E8145-1
2
12
UPPER LINK BLOCK BOLT,NUT,& COTTER
2
.12
E8145-2
2
13
LOWER LINK BLOCK BOLT, NUT, & COTTER
2
.12
E940308-1
1
14
GREASE ZERT
2
.02
1 YEAR SPARES, FOR 2 YEAR SPARES ADD 1 EA. OF * THESE ITEMS
