Keystone Slip Type Elevators

Keystone Y Series Slip Type Elevators are center latch, tubing elevators made to catch collar type or integral joint tubing. The models used for tubing are the LYT, MYT, YT, and HYT; and the YC, MYC, HYC, and HYC-XR for casing. They are load rated as the 20-ton LYT, the 40-ton MYT, 75-ton YT, and the 150-ton HYT covers tubular sizes from “3/4” – 3 1/2”. The 75-ton YC, the 100-ton YC-HD, the 125-ton MYC, and the 200 ton HYC covers a range of tubular sizes from 3 1/2” – 7 5/8”. The 200-ton HYC-XR covers a range of tubular sizes from 7 5/8” – 9 5/8”.

All slip backs and die slots on Keystone slips are precision-machined to ensure proper grip and to prevent bottlenecking or slip cuts to the pipe.

KET LYT (20 TON) SLIP TYPE ELEVATOR

Part NoRangeSize of LinksWeight
E287503/4” – 2-1/16”1-1/4” – 2-3/4”58.00

LYT REPLACEMENT PARTS

Part No.Item #QtyDescriptionSparesWt.
E2875311HINGE PIN.60
E28753-R21HINGE PIN RETAINER2.05
E2875731LATCH PIN.45
E2876044SLIP PIN & COTTER.25
E2876154SLIP SPRING4.04
E2876262LINK BLOCK21.00
E28764-174LINK BLOCK BOLT, NUT & COTTER21.20
E2876781LATCH LOCK PIN2.25
E2876991LATCH LOCK SPRING1.12
E30645101LATCH LOCK22.00
E30648111LATCH4.00
E32760121LATCH SPRING1.08
E940308-1131GREASE ZERT FOR DOOR4.03
E947128-172141LATCH LOCK PIN RETAINER1.02
E947128-222151LATCH PIN RETAINER2.02
E28785164SETTING PLATE BOLT4.25
E28786174INSERT RETAINER PLATE4.13
E28787184INSERT RETAINER SCREW5.13
191SETTING RING20.00

LYT Slip Assemblies

Part #DescriptionWeight
E28745-62-1/16″ X 2-1/16″ LYT SLIP ASSEMBLY17.00
E28745-52-1/16” X 2″ LYT SLIP ASSEMBLY17.00
E28745-42-1/16” X 1-1/2″ (1.900″) LYT SLIP ASSEMBLY17.00
E28745-32-1/16” X 1-1/4″ (1.660″) LYT SLIP ASSEMBLY18.00
E28745-22-1/16” X 1″ (1.315″) LYT SLIP ASSEMBLY20.00
E28745-72-1/16” X 3/4″ (1.050″) LYT SLIP ASSEMBLY20.00

LYT Setting Plates

Part #Item #Description# ReqWeight
E28782192 1/16” SETTING PLATE117.00
E28737192” SETTING PLATE117.00
E28783191 1/2” (1.900”) SETTING PLATE117.00
E28784191 1/4” (1.660”) SETTING PLATE118.00
E28736191” (1.315”) SETTING PLATE120.00
E28735193/4” (1.050”) SETTING PLATE120.00
Recommended spares include 2 sets of inserts and 2 setting rings for each pipe size to be run.

LYT INSERTS

Part No.Item #QtyDescriptionSpares
E287722082 1/16” & 2” LYT INSERT.25
E287752081 1/2” (1.900”) LYT INSERT.25
E287782081 1/4” (1.660”) LYT INSERT.25
E287492081” (1.315”) LYT INSERT.25
E293702083/4” (1.050”) LYT INSERT.25

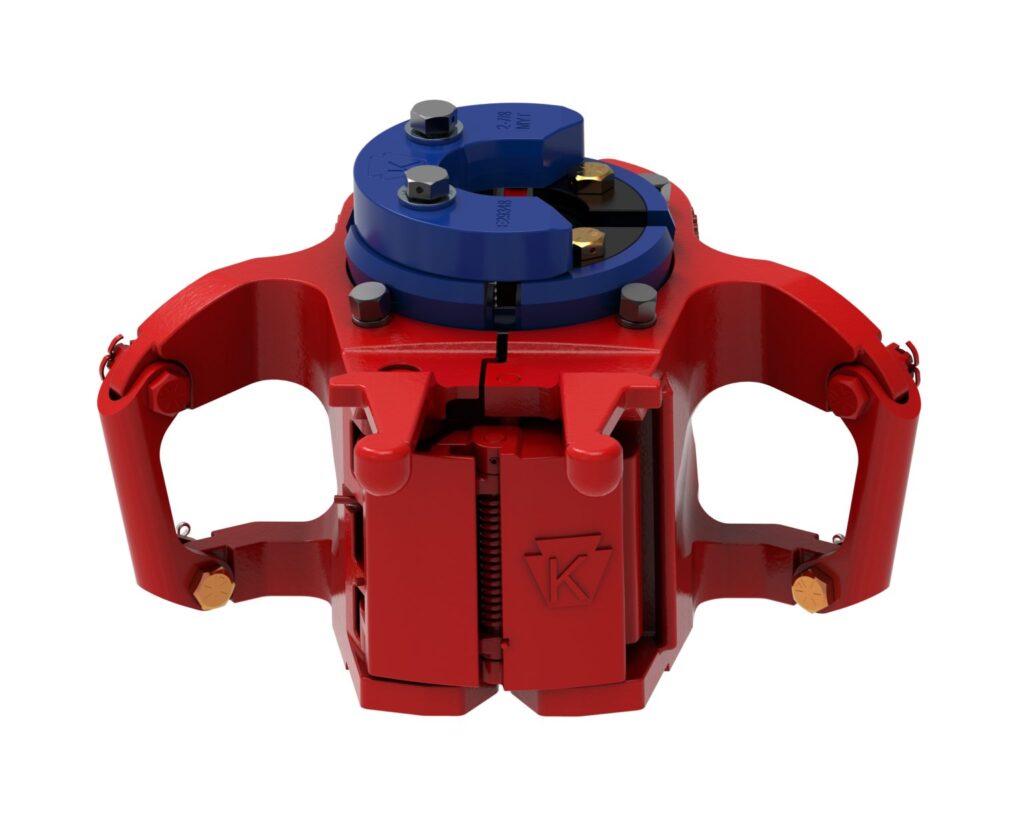

MYT (40 Ton) Slip Type Elevator

Part NoRangeSize of LinksWeight
E293283/4″ – 2 7/8″1 1/4″ – 2 3/4″148.00

MYT Slip Assemblies

Part #DescriptionWeight
E29343-12 7/8″ x 2 7/8″ MYT SLIP ASSEMBLY44.00
E29343-22 7/8″ x 2 3/8″ MYT SLIP ASSEMBLY46.00
E29343-32 7/8″ x 2 1/16″ MYT SLIP ASSEMBLY47.25
E29343-42 7/8″ x 2″ MYT SLIP ASSEMBLY47.50
E29343-52 7/8″ x 1 1/2″ (1.9000″) MYT SLIP ASSEMBLY48.75
E29343-62 7/8″ x 1 1/4″ (1.660″) MYT SLIP ASSEMBLY49.75
E29343-72 7/8″ x 1″ (1.315″) MYT SLIP ASSEMBLY49.75
E29343-82 7/8″ x 3/4″ (1.050″) MYT SLIP ASSEMBLY51.00
E29343-S2 7/8″ MYT SLIP SEGMENTS ONLY (MATCHED SET OF 4)31.00

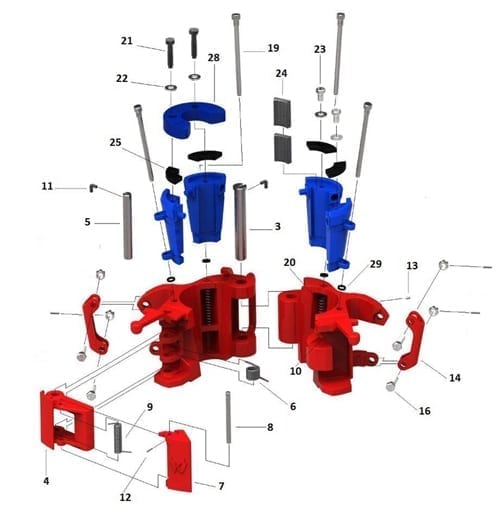

MYT Parts/Replacement Parts Ordering Information

Part#QTYItemDescriptionSparesWeight (lbs)
E2933313HINGE PIN4
E3065214LATCH10
E2993415LATCH PIN4
E2933816LATCH SPRING2.5
E3065317LATCH LOCK2
E2933518LATCH LOCK PIN2.5
E2934919LATCH LOCK SPRING2.25
E30841110LATCH LOCK DOOR PIN.5
E947128-120111LATCH PIN RETAINER21.5
E947128-172112LATCH LOCK PIN RETAINER2.5
E307081NPLATCH AND LOCK ASSEMBLY12.88
E29337214LINK BLOCK1
E939099-65-2416UPPER AND LOWER LINK BLOCK BOLT, NUT, AND COTTER4.45
E29336419SLIP BOLT4.75
E29340420SLIP SPRING8.25
E29347221SETTING RING SCREW4.25
E939370-13222SETTING PLATE WASHER4.06
E939098-15223INSERT RETAINER SCREW4.13
E29344425INSERT RETAINER PLATE4.5

MYT Inserts

Part #QtyItemDescriptionWeight (lbs)
E247738242 7/8″ X 2 7/8″ INSERT.75
E292558242 7/8″ X 2 3/8″ INSERT1.00
E292568242 7/8″ X 2 1/16″ INSERT1.13
E292578242 7/8″ X 1 1/2″ (1.900″) INSERT1.25
E292588242 7/8″ X 1 1/4″ (1.660″) INSERT1.38
E292598242 7/8″ X 1″ (1.315″) INSERT1.44
E29259-18242 7/8″ X 3/4″ (1.050″) INSERT1.50
Recommended spares include 1 set of inserts for each size of pipe to be run

MYT Setting Rings

Part #ItemDescriptionWeight (lbs)
E29348282 7/8″ MYT SETTING RING6.50
E29345282 3/8″ MYT SETTING RING6.63
E29350282 1/16″ MYT SETTING RING7.00
E29351282 ” MYT SETTING RING7.10
E29352281 1/2″ (1.900″) MYT SETTING RING7.35
E29353281 1/4″ (1.660″) MYT SETTING RING7.50
E29354281″ (1.315″) MYT SETTING RING7.90
E29354-1283/4″ (1.050) MYT SETTING RING8.05
Recommended spares include 2 sets of inserts and 2 setting rings for each pipe size to be run

YT (75 Ton) Slip Type Elevator

Part NoRangeSize of LinksWeight
E231051.315″ – 3 1/2″2 1/4″ – 2 3/4″355.00

YT Slip Assemblies

Part #DescriptionWeight
E23108-53 1/2″ x 3 1/2″ YT SLIP ASSEMBLY64.00
E23108-33 1/2″ x 2 7/8″ YT SLIP ASSEMBLY76.00
E23108-42 7/8″ X 2 7/8″ YT SLIP ASSEMBLY76.00
E23108-62 7/8″ X 2 3/8″ YT SLIP ASSEMBLY79.00
E23108-72 7/8″ x 2 1/16″ YT SLIP ASSEMBLY81.00
E23108-82 7/8″ x 2″ YT SLIP ASSEMBLY82.00
E23108-92 7/8″ x 1 1/2″ (1.900″) YT SLIP ASSEMBLY83.00
E23108-102 7/8″ x 1 1/4″ (1.660″) YT SLIP ASSEMBLY85.00
E23108-112 7/8″ x 1″ (1.315″) YT SLIP ASSEMBLY86.50
E231083 1/2″ YT SLIP SEGMENTS ONLY (MATCHED SET OF 4)51.00
E23108-22 7/8″ YT SLIP SEGMENTS ONLY (MATCHED SET OF 4)51.00

YT Replacement Parts

Part#QTYItemDescriptionSparesWeight (lbs)
E23116-113HINGE PIN4.13
E1534814LATCH27.00
E2418215LATCH PIN5.00
E1297816LATCH SPRING2.63
E1294617LATCH CAM1.50
E1297218LATCH LOCK23.50
E1353019LATCH LOCK PIN.63
E12529110DOOR LUG PIN2.65
E24964111LATCH PIN RETAINER.20
E940308-1112GREASE FITTING2.05
E9519214LINK BLOCK5.50
E8145-1215UPPER LINK BLOCK BOLT, NUT AND COTTER21.00
E8145-2216LOWER LINK BLOCK BOLT, NUT AND COTTER21.00
E23115419SLIP BOLT41.25
E23113420SLIP SPRING8.25
E23630121GUIDE PLATE4.00
E939098-75222GUIDE PLATE SCREW2.25
E939098-64223GUIDE PLATE LOCK WASHER2.15
E27697424SETTING PLATE BOLT8.25
E27532425INSERT RETAINER SCREW8.06
E27546226SETTING RING RETAINER (3 1/2″)2.13
E27507226SETTING RING RETAINER (2 7/8″)2.13
E27696427YT SETTING RING BUSHING8.06
E24507828INSERT SPACER (3 1/2″)8.13
E24508428INSERT SPACER (2 7/8″)4.25
E27530431INSERT RETAINER PLATE (3 1/2″)4.13
E27541431INSERT RETAINER PLATE (2 7/8″)4.25

YT Slip Inserts

Part #QtyItemDescriptionWeight (lbs)
E2477424303 1/2″ X 3 1/2″ INSERT.50
E3035812303 1/2″ X 2 7/8″ INSERT.75
E2477312302 7/8″ X 2 7/8″ INSERT.75
E2925512302 7/8″ X 2 3/8″ INSERT.75
E2925612302 7/8″ X 2 1/16″ & 2″ INSERT1.00
E2925712302 7/8″ X 1 1/2″ (1.900″) INSERT1.20
E2925812302 7/8″ X 1 1/4″ (1.660″) INSERT1.38
E2925912302 7/8″ X 1″ (1.315″) INSERT1.45

YT Setting Rings

Part #ItemDescriptionWeight (lbs)
E27813333 1/2″ YT SETTING RING3.13
E27695332 7/8″ YT SETTING RING3.56
E27694332 3/8″ YT SETTING RING4.00
E27812332 1/16″ YT SETTING RING4.25
E28821332″ YT SETTING RING4.25
E27811331 1/2″ (1.900″) YT SETTING RING4.31
E27810331 1/4″ (1.660″) YT SETTING RING4.38
E29001331″ (1.315) YT SETTING RING4.75
Part NoDescriptionRangeSize of LinksWeight

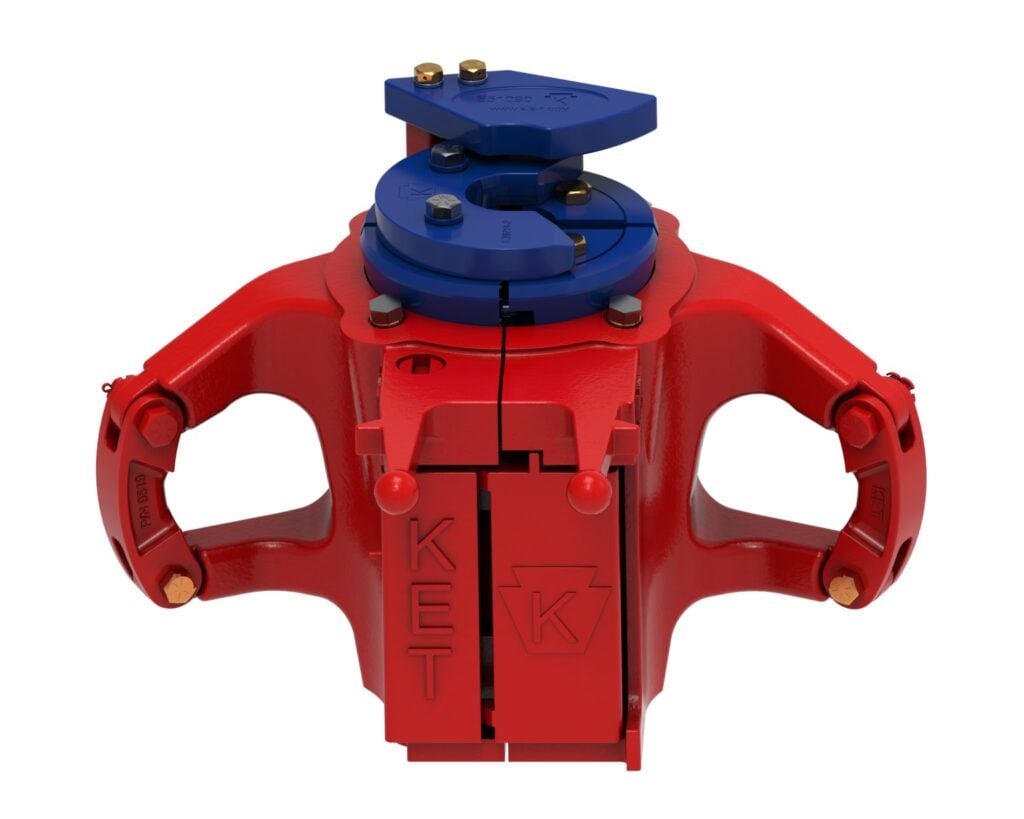

E39284HYT Elevator Complete L/Slips2 3/8″ – 3 1/2″2 1/4″-3 1/2″
740.00

HYT Slip Assemblies

Part #DescriptionWeight
E39258-23 1/2″ x 3 1/2″ HYT SLIP ASSY.170
E39258-43 1/2″ x 2 7/8″ HYT SLIP ASSY.170
E39258-53 1/2″ x 2 3/8″ HYT SLIP ASSY.170
E39259-22 7/8″ x 2 7/8″ HYT SLIP ASSY.170
E39259-42 7/8″ x 2 3/8″ HYT SLIP ASSY170
E391743 1/2″ HYT SLIP SEGMENTS ONLY (MATCHED SET OF 4)150
E391752 7/8″ HYT SLIP SEGMENTS ONLY (MATCHED SET OF)150

HYT Setting Rings

Part #Description# ReqWeight (lbs)
E39214-33 1/2″ HYT SETTING RING111
E39214-22 7/8″ HYT SETTING RING111
E39214-12 3/8″ HYT SETTING RING113

HYT Inserts

Part #Description#ReqWeight (lbs)
E247743 1/2″ x 3 1/2″ INSERT32.50
E303583 1/2″ x 2 7/8″ INSERT32.75
E30358-233 1/2″ x 2 3/8″ INSERT32.80
E247732 7/8″ x 2 7/8″ INSERT16.75
E292552 7/8″ x 2 3/8″ INSERT161.00

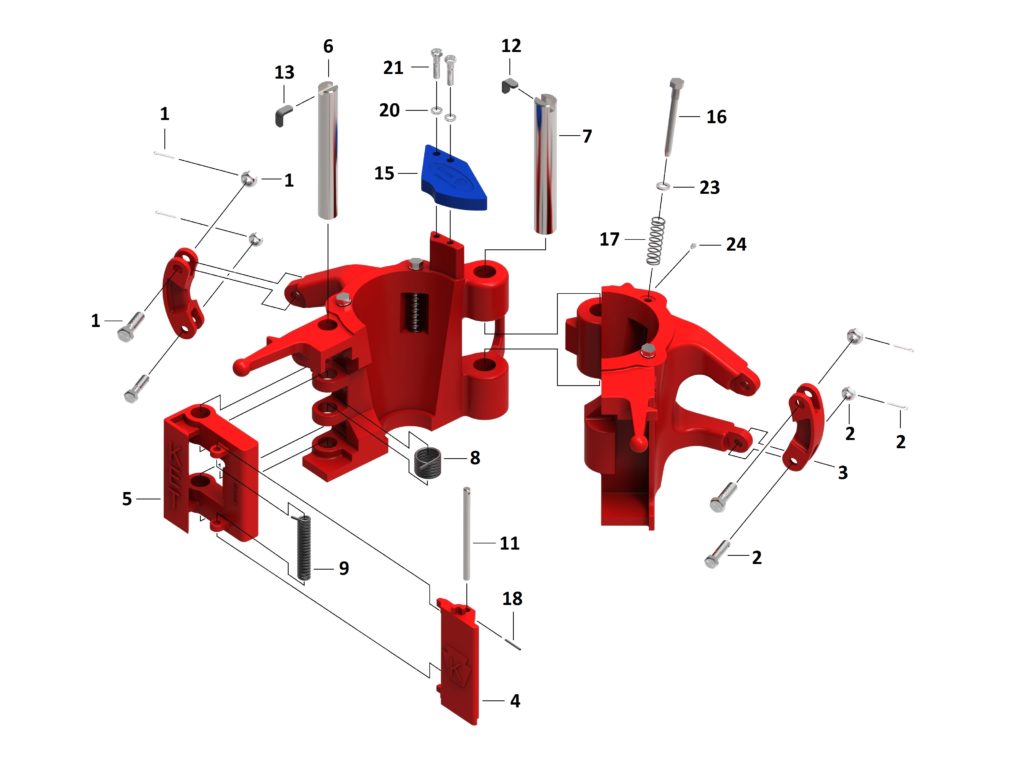

HYT Replacement Parts

Part#ItemDescription**Spares# Req
E8145-11Upper Link Block Bolt, Nut, & Cotter1
E8145-22Lower Link Block Bolt, Nut, & Cotter1
E95193Link Block1
E391614Latch Lock1
E391625Latch21
E392386Latch Pin11
E392397Hinge Pin11
E392408Latch Spring21
E392419Latch Lock Spring1
E39246102.875 Insert Retainer Plate1
E39247103.5 Insert Retainer Plate2
E3925111Latch Lock Pin2
E3925312Hinge Pin Retainer22
E3925413Latch Pin Retainer22
E5108914Setting Ring Bushing22
E5109015Guide Plate44
E5232116Slip Bolt84
E52539-117Slip Spring1
 HYT 3/16-1- 1/4 Retainer183/16-1- 1/4 Spring Pin-Latch Lock Pin Retainer42
E939098-3619Insert Retainer Pin42
E939098-6420Guide Plate WasherAR
E939098-7521Guide Plate Screw2
E939098-9622Setting Ring Bolt4
E939352-623Slip Bolt Washer42
E3940308-124Grease Fitting42
HYT Setting Rings25Setting Rings84
HYT Inserts26Inserts84

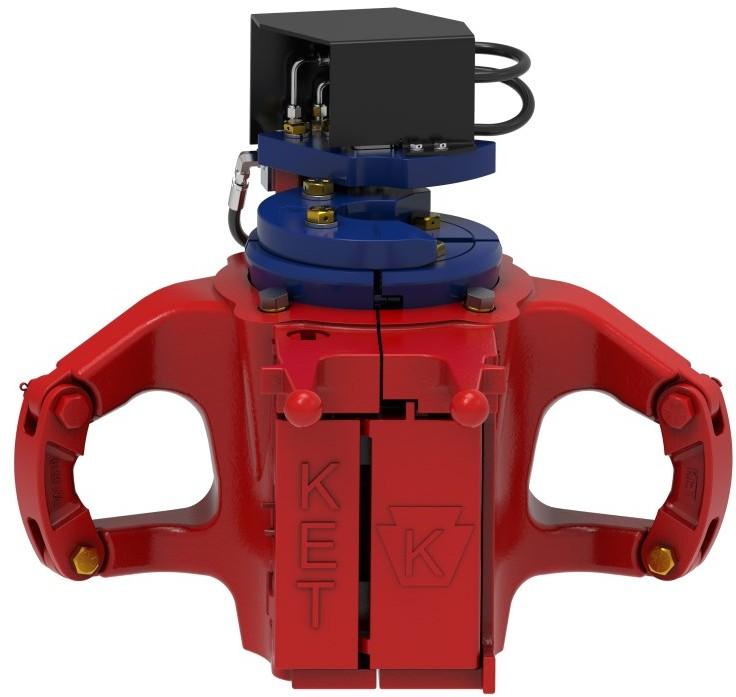

HYT-HSS (150 Ton) Slip Type Elevator

PART NO.DESCRIPTIONRANGESIZE OF LINKSWT.
E39284HYT ELEVATOR COMPLETE L/SLIPS2 3/8” – 3 1/2”2 1/4” – 3 1/2”593

HYT Slip Assemblies

PART NO.DESCRIPTIONWT.
E51090-HYD-ASSYHYT HYDRAULIC SLIMHOLE ASSEMBLY121.00
E31093-ASSYHAND CONTROL VALVE ASSEMBLY20.00
E51096130’ HOSES FOR HYT HYDRAULIX (2 HOSES)41.00

HYT Setting Rings

PART NO.DESCRIPTION#REQ.WT.
E39214-33 1/2” HYT SETTING RING111.00
E39214-22 7/8” HYT SETTING RING111.00
E39214-12 3/8” HYT SETTING RING113.00

HYT Inserts

PART NO.DESCRIPTION#REQ.WT.
E247743 1/2” X 3 1/2” INSERT32.50
E303583 1/2” X 2 7/8” INSERT32.75
E30358-233 1/2” X 2 3/8” INSERT32.80
E247732 7/8” X 2 7/8” INSERT16.75
E292552 7/8” X 2 3/8” INSERT161.00

HYT Replacement Parts

PART NO.ITEMDESCRIPTION**SPARES#REQ.WT.
E8145-11UPPER LINK BLOCK BOLT, NUT, & COTTER220.87
E8145-22LOWER LINK BLOCK BOLT, NUT, & COTTER220.57
E95193LINK BLOCK25.20
E391614LATCH LOCK17.82
E391625LATCH136.03
E392386LATCH PIN19.18
E392397HINGE PIN112.05
E392408LATCH SPRING210.69
E392419LATCH LOCK SPRING210.69
E39246102.875 INSERT RETAINER PLATE41.09
E39247103.5 INSERT RETAINER PLATE40.98
E3925111LATCH LOCK PIN10.84
E3925312HINGE PIN RETAINER210.075
E3925413LATCH PIN RETAINER210.05
E5108914SETTING RING BUSHING220.18
E51090-HYD15GUIDE PLATE119.02
E5232116SLIP BOLT840.76
E52539-117SLIP SPRING840.17
Roll Pin183/16-1-1/4 SPRING PIN – LATCH LOCK PIN RETAINER210.10
E939098-3619INSERT RETAINER PIN420.26
E939098-63420GUIDE PLATE WASHER220.10
E939098-7521GUIDE PLATE SCREW220.26
E939098-9622SETTING RING BOLT420.46
E939352-623SLIP BOLT WASHER440.05
E940308-124GREASE FITTING420.08
25SETTING RINGS21
26INSERTS2 SETSA/R

HYT Slip Replacement Parts

PART NO.ITEMDESCRIPTION**SPARE#REQ.WT.
E51090-HYD1GUIDE PLATE119.50
E510912CYLINDER12.620
E51091-13CYLINDER ROD FOOT10.125
E510924HOSE MOUNTING CLAMP12.10
E51092-F51/4-18 NPT X 7/16-20 BULKHEAD STRAIGHT FITTING & 7/16-20 HEX NUT110.10
E51092-26SAE 37 7/16-20 x SAE O-RING 9/16-18 STRAIGHT FITTING220.14
E51092-37SAE 37 7/16-20 x SAE O-RING 5/16-24 STRAIGHT FITTING220.12
E51092-48SAE 37 7/16-20 x SAE O-RING 9/16-18 ELBOW FITTING220.12
E51092-F91/4 NPTF FEMALE QUIK-DISCONNECT HOSE COUPLING110.30
E51092-3101/4 NPFT MALE QUICK-DISCONNECT HOSE COUPLING110.10
E5109411COUNTER BALANCE VALVE11.60
E5109512GUARD14.90
E51096-11390 LONG x STRAIGHT 12” HOSE ASSEMBLY110.40
E51096-21490 SHORT x STRAIGHT 12” HOSE ASSEMBLY110.40
E51096-31545 SHORT x STRAIGHT 12” HOSE ASSEMBLY120.33
E51097-116#12-24 x 5.5 HEXHEAD BOLT, WASHERS, & NYLON HEX LOCKNUT440.10
E51097-2175/16-18 x 2.5 HEXHEAD BOLT AND LOCK WASHER220.10
E51097-3185/16-18 x 1.5 HEXHEAD CAP SCREW AND WASHER220.10
E51097-4195/16-18 X 1.5 HEXHEAD CAP SCREW AND WASHER440.10
E939098-6520GUIDE PLATE LOCK WASHER220.01
E939098-7521GUIDE PLATE SCREW220.26

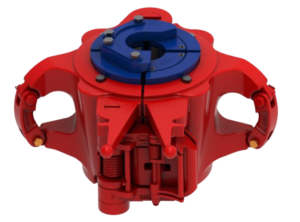

HYC (200 Ton) Slip Type Elevator

Part NoDescriptionRangeSize of LinksWeight
E55310HYC Elevator Complete L/Slips3 1/2’’ – 7 5/8”2 1/4″-3 1/2″1300.00

HYC Slip Assemblies

Part #DescriptionWeight
E55509-24 1/2’’ X 3 1/2’’ HYC SLIP ASSY.300
E55510-24 1/2’’ X 4’’ HYC SLIP ASSY.300
E55511-24 1/2’’ X 4 1/2’’ HYC SLIP ASSY.300
E55512-25 1/2’’ X 5’’ HYC SLIP ASSY.300
E55513-25 1/2’’ X 5 1/2’’ HYC SLIP ASSY.300
E55514-27” X 6 5/8” HYC SLIP ASSY.265
E55515-27’’ X 7’’ HYC SLIP ASSY.265
E700097’’ X 7 5/8’’ HYC SLIP ASSY265
E55511-14 1/2” HYC SLIP SEGMENTS ONLY (MATCHED SET OF 4)250
E55513-15 1/2’’ HYC SLIP SEGMENTS ONLY (MATCHED SET OF 4)230
E55515-17’’ HYC SLIP SEGMENTS ONLY (MATCHED SET OF 4)200
E70009-17 5/8’’ HYC SLIP SEGMENT ONLY (MATCHED SET 0F 4)200

HYC Setting Rings

Part #Description# ReqWeight (lbs)
E700127 5/8” HYC SETTING RING111
E555227” HYC SETTING RING111.50
E555216 5/8” HYC SETTING RING112.00
E555205 1/2” HYC SETTING RING113.00
E555195” HYC SETTING RING114.50
E555184 1/2” HYC SETTING RING115.00
E555174” HYC SETTING RING116.50
E555163 1/2” HYC SETTING RING118.00

HYC Inserts

Part #Description#ReqWeight (lbs)
E700107 5/8” X 7 5/8” INSERT48.50
E164077” X 7” INSERT48.50
E247487” X 6 5/8” INSERT48.75
E164075 1/2” X 5 1/2” INSERT36.50
E247835 1/2” X 5 1/2” INSERT36.80
E247855 1/2” X 4 1/2” INSERT 1.05361.05
E164084 1/2” X 4 1/2” INSERT24.50
E247814 1/2” X 4” INSERT24.80
E247794 1/2” X 3 1/2” INSERT 1.00241.00

HYC Replacement Parts

Part#Description**Spares# Req
E55311HINGE PIN125.00
E55312LATCH PIN19.00
E34909LATCH SPRING211.50
E13185LATCH SPRING STOP1.25
E13152LATCH LOCK114.00
E15101LATCH LOCK BOLT11.75
E13188LATCH LOCK SPRING21.25
E8150LATCH LOCK BOLT NUT11.25
E939672-19COTTER PIN33.10
E13190DOOR LUG PIN1.65
E55504HINGE PIN RETAINER1.35
E55505LATCH PIN RETAINER1.20
E940308-1GREASE FITTING1.10
E9519LINK BLOCK25.50
E8145-1UPPER LINK BLOCK BOLT, NUT, & COTTER22.50
E8145-2LOWER LINK BLOCK BOLT, NUT, & COTTER22.50
E24076SLIP BOLT441.00
E939354-6LOCKWASHER44.25
E945044-2SLIP SPRING84.35
E55508GUIDE PLATE SCREW84.26
E939484-5GUIDE PLATE NUT84.03
E939672-17COTTER PIN84.10
E30216SETTING RING RETAINER (3 1/2” – 7”)22.25
E70147SETTING RING RETAINER ( 7 5/8”)22.30
E55501SHOULDER SCREW84.41
E55502RUBBER BUSHING84.04
E941271-73INSERT RETAINER SCREW44.08
E947879LOCK WIREA/R.01
E700117 5/8” INSERT RETAINER41.85
E302307” INSERT RETAINER42.00
E302245 1/2” INSERT RETAINER42.50
E302144 1/2” – 3 1/2” INSERT RETAINER42.50

HYC Bottom Guide Plates

Part #Description# ReqWeight (lbs)
E24071-67 5/8” HYC BOTTOM GUIDE PLATES (SET)15.02
E24071-27” BOTTOM GUIDE13.75
E24071-36 5/8” BOTTOM GUIDE14.50
E24071-15 1/2” BOTTOM GUIDE15.50
E240715” BOTTOM GUIDE17.75
E24071-44 1/2” BOTTOM GUIDE18.50
E268274” BOTTOM GUIDE18.50
E26827-13 1/2” BOTTOM GUIDE18.00

HYC-XR (200 Ton) Slip Type Elevator

Part NoRangeSize of LinksWeight
E55310-XR7 5/8’’ – 9 5/8”2 1/4’’ – 3 1/2’’1200.00

Riser Setting Plates

Item #Part #DescriptionWeight (lbs)
30E70012RP7 5/8” HYC 10” RISER SETTING PLATE
30E55525RP8 5/8” HYC 10” RISER SETTING PLATE
30E55585XRRP-98 5/8” HYC 12” RISER SETTING PLATE
30E55585RP-98 5/8” HYC 10” RISER SETTING PLATE F/MILL CUT SLIPS

HYC Replacement Parts

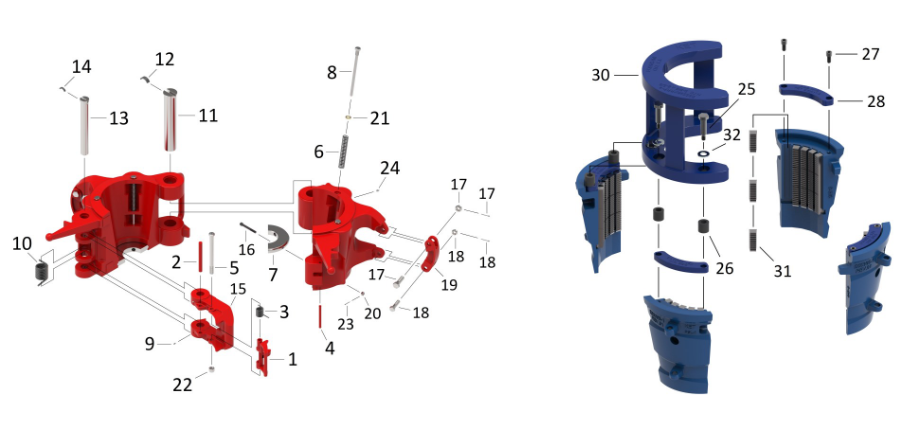

ITEM NO.PART NO.DESCRIPTION**SPARES#REQ.WT.
1E13152LATCH LOCK114
2E13185LATCH SPRING STOP10.25
3E13188LATCH LOCK SPRING210.25
4E13190DOOR LUG PIN10.65
5E15101LATCH LOCK BOLT110.75
6E945044-2SLIP SPRING840.35
8E24076SLIP BOLT441
9E940308-1GREASE FITTING10.1
10E34909LATCH SPRING211.5
11E55311HINGE PIN125
12E55504HINGE PIN RETAINER10.35
13E55312LATCH PIN19
14E55505LATCH PIN RETAINER10.2
17E939672-19COTTER PIN330.1
17E8145-1UPPER LINK BLOCK BOLT, NUT, & COTTER220.5
18E8145-2LOWER LINK BLOCK BOLT, NUT, & COTTER220.5
18E939672-17COTTER PIN840.1
19E9519LINK BLOCK25.5
21E939354-6LOCKWASHER440.25
22E8150LATCH LOCK BOLT NUT110.25
25E55501SHOULDER SCREW840.41
26E55502RUBBER BUSHING840.04
27E941271-73INSERT RETAINER SCREW440.08
28E30214INSERT RETAINER 8 5/8” – 9 5/8”42.5
28E70011INSERT RETAINER 7 5/8—8 5/8”41.85
30N/ARISER SETTING PLATE1
31A20-103-86TYPE “A” 9.625 X 8.625 INSERT60600.22
31A02-103TYPE “A” 9.625 INSERT60605.28
32E9133865-10SHOULDER SCREW WASHER40.1

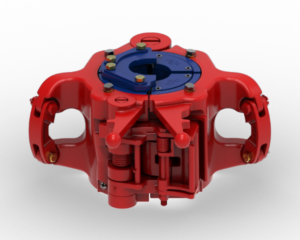

MYC (200 Ton) Slip Type Elevator

Part #RangeSize of LinksWeight (lbs)
E2003603 1/2’’ – 7’’2 1/4’’ – 2 3/4’’750.00

MYC Slip Assemblies

Part #DescriptionWeight (lbs)
E349314 1/2’’ X 3 1/2’’ YC/MYC SLIP ASSY.150.00
E268304 1/2’’ X 4’’ YC/MYC SLIP ASSY.150.00
E24072-54 1/2’’ X 4 1/2’’ YC/MYC SLIP ASSY.150.00
E24072-75 1/2’’ X 5’’ YC/MYC SLIP ASSY.150.00
E24072-25 1/2’’ X 5 1/2’’ YC/MYC SLIP ASSY.150.00
E24077-17’’ X 7’’ YC/MYC SLIP ASSY.150.00
E24077-77’’ X 6 5/8’’ YC/MYC SLIP ASSY150.00
E24072-44 1/2’’ YC/MYC SLIP SEGMENTS ONLY (MATCHED SET OF 4)130.00
E240725 1/2’’ YC/MYC SLIP SEGMENTS ONLY (MATCHED SET OF 4)130.00
E240777’’ YC/MYC SLIP SEGMENT ONLY (MATCHED SET 0F 4)130.00

MYC Setting Plates

Part #Description#Req.Weight (lbs)
E349323 1/2” SETTING PLATE18.00
E302094” SETTING PLATE18.00
E302194 1/2” SETTING PLATE17.00
E302205” SETTING PLATE16.25
E302235 1/2” SETTING PLATE16.13
E302266 5/8” SETTING PLATE16.00
E302297” SETTING PLATE15.50

MYC Bottom Guide Plates

Part #Description#Req.Weight (lbs)
E24071-27” BOTTOM GUIDE13.75
E24071-36 5/8” BOTTOM GUIDE14.50
E24071-15 1/2” BOTTOM GUIDE15.50
E240715” BOTTOM GUIDE17.75
E24071-44 1/2” BOTTOM GUIDE18.50
E268274” BOTTOM GUIDE18.50
E26827-13 1/2” BOTTOM GUIDE18.00

YC (75 Ton) Slip Type Elevator

Part No.RangeSize of LinksWeight
E241403 1/2’’ – 7’’2 1/4’’ – 2 3/4’’380.00

YC Slip Assemblies

Part #DescriptionWeight
E349314 1/2’’ X 3 1/2’’ YC SLIP ASSY.150
E268304 1/2’’ X 4’’ YC SLIP ASSY.150
E24072-54 1/2’’ X 4 1/2’’ YC SLIP ASSY.150
E24072-75 1/2’’ X 5’’ YC SLIP ASSY.150
E24072-25 1/2’’ X 5 1/2’’ YC SLIP ASSY.150
E24077-17’’ X 7’’ YC SLIP ASSY.150
E24077-77’’ X 6 5/8’’ YC SLIP ASSY.150
E24072-44 1/2’’ YC SLIP SEGMENTS ONLY (MATCHED SET OF 4)130
E240725 1/2’’ YC SLIP SEGMENTS ONLY (MATCHED SET OF 4)130
E240777’’ YC SLIP SEGMENT ONLY (MATCHED SET 0F 4)130

YC Setting Plates

Part #Description# ReqWeight (lbs)
E349323 1/2” SETTING PLATE18
E302094” SETTING PLATE18
E302194 1/2” SETTING PLATE17
E302205” SETTING PLATE16.25
E302235 1/2” SETTING PLATE16.13
E302266 5/8” SETTING PLATE16
E302297” SETTING PLATE15.5

YC Bottom Guide Plates

Part #Description#ReqWeight (lbs)
E24071-27” BOTTOM GUIDE13.75
E24071-36 5/8” BOTTOM GUIDE14.50
E24071-15 1/2” BOTTOM GUIDE15.50
E240715” BOTTOM GUIDE17.75
E24071-44 1/2” BOTTOM GUIDE18.50
E268274” BOTTOM GUIDE18.50
E26827-13 1/2” BOTTOM GUIDE18.00

YC Replacement Parts

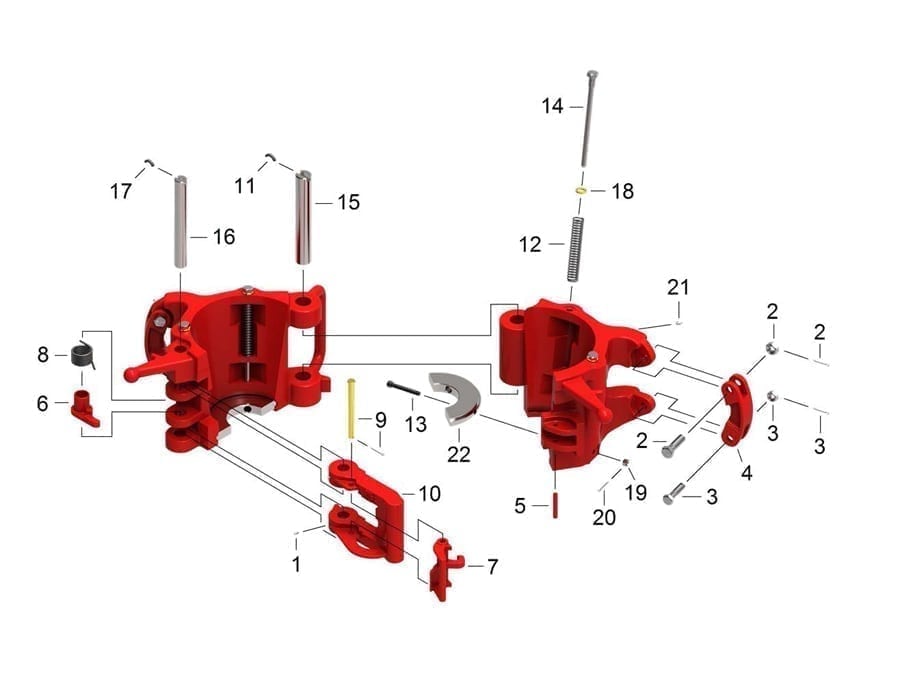

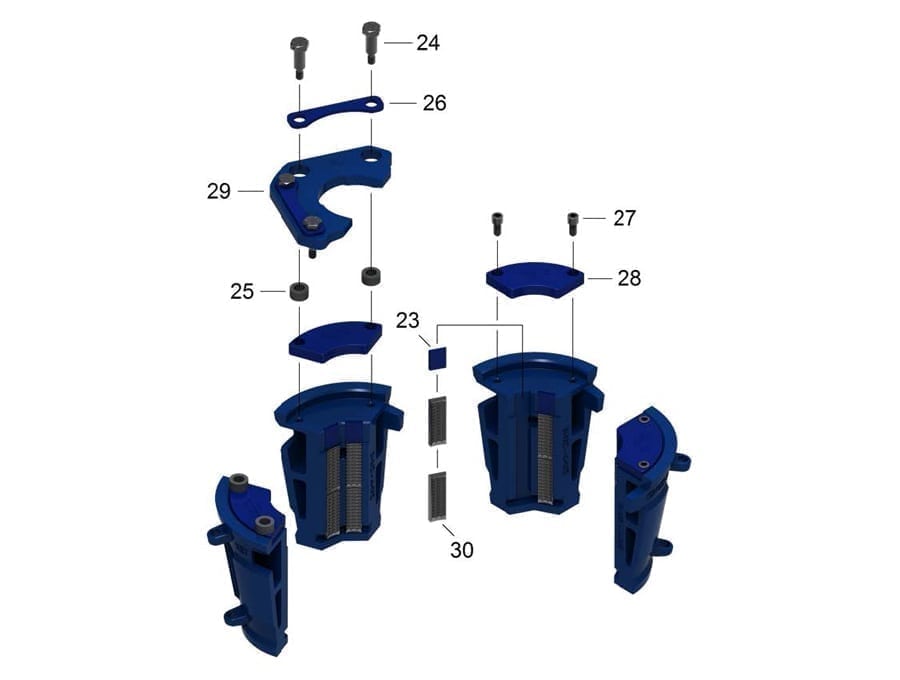

Part#ItemQTYDescription**Spares
E316-SI11 LATCH GREASE ZERT
E8145-122UPPER LINK BLOCK BOLT, NUT, & COTTER2
E8145-232 LOWER LINK BLOCK BOLT, NUT, & COTTER2
E951942LINK BLOCK
E1252951DOOR LUG PIN
E1294661LATCH CAM
E1297271LATCH LOCK
E1297881LATCH SPRING2
E1353091LATCH LOCK PIN W/COTTER2
E15348101LATCH
E23116-1-R111HINGE PIN RETANIER2
E24049124SLIP SPRING8
E24075134BOTTOM GUIDE PLATE SCREW W/ NUT
E24076144SLIP BOLT4
E24181151HINGE PIN
E24182161LATCH PIN
E24182-RT171LATCH PIN RETAINER2
E939352-6184LOCK WASHER F/ SLIP BOLTS2
E939484-5194BOTTOM GUIDE PLATE NUT
E939672-17204BOTTOM GUIDE PLATE/ COTTER
E940308-1211GREASE ZERT
E24071-221BOTTOM GUIDE PLATE
E24506234INSERT SPACER4
E30211244SETTING PLATE BOLT4
E30213254RUBBER BUSHING8
E30216262SETTING RING RETAINER
E941271-73274INSERT REATINER SCREW8
E30214284INSERT RET. RING 3 1/2’’ – 4 1/2’’4
E30224284INSERT RET.RING 5’’ & 5 1/2’’4
E30230284INSERT RET. RING 6 5/8’’ & 7’’4
291SETTING PLATES
30INSERTS2 SETS

PE Energy is an authorized Keystone Energy Tools distributor offering the full range of Keystone Energy Tools products. Contact us for a custom quote.

See all Keystone Energy Tools products.
