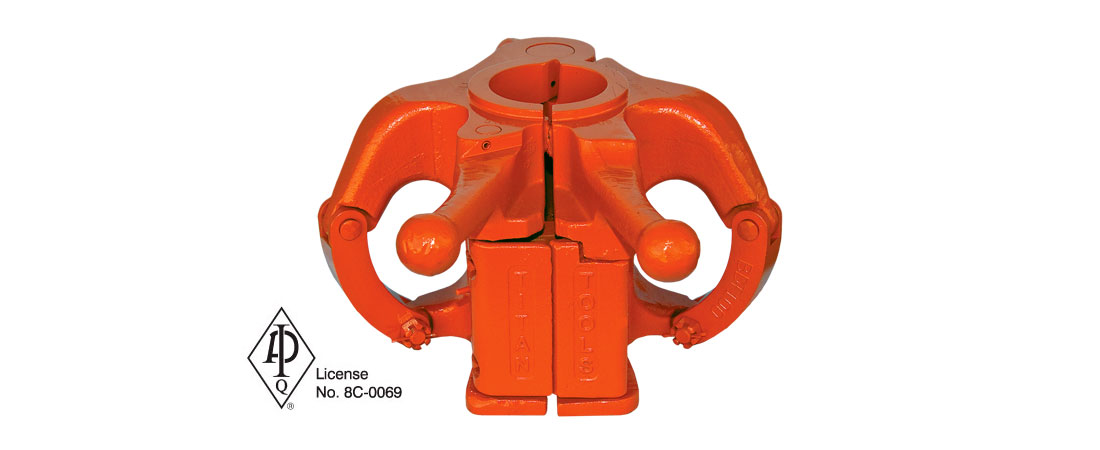

TITAN TUBING ELEVATORS are constructed of high-quality alloy steel and heat-treated for maximum strength and durability. Each elevator is manufactured and tested to API 8C. In addition, the load collar is flame hardened for increased abrasion resistance.
All TITAN Tubing Elevators are equipped with a double locking retainer assembly for maximum safety.
| TITAN Tubing Elevator | |||||
| Catalog No. | Tubing Size | Weight | Rated Load | ||
| TEA035-238N | 2-3/8″ Non-Upset | 53 lbs. | 35 tons | ||
| TEA035-238U | 2-3/8″ External Upset | 53 lbs. | 35 tons | ||
| TEA035-278N | 2-7/8″ Non-Upset | 52 lbs. | 35 tons | ||
| TEA035-278U | 2-7/8″ External Upset | 52 lbs. | 35 tons | ||
| TEA100-238N | 2-3/8″ Non-Upset | 116 lbs. | 100 tons | ||
| TEA100-238U | 2-3/8″ External Upset | 116 lbs. | 100 tons | ||
| TEA100-278N | 2-7/8″ Non-Upset | 114 lbs. | 100 tons | ||
| TEA100-278U | 2-7/8″ External Upset | 114 lbs. | 100 tons | ||
| TEA100-312N | 3-1/2″ Non-Upset | 112 lbs. | 100 tons | ||
| TEA100-312U | 3-1/2″ External Upset | 112 lbs. | 100 tons | ||
| View API Certificate | |||||
DATA BOOKS/OPERATING MANUALS
TEA035 / 35 Ton
TEA100 / 100 Ton`
